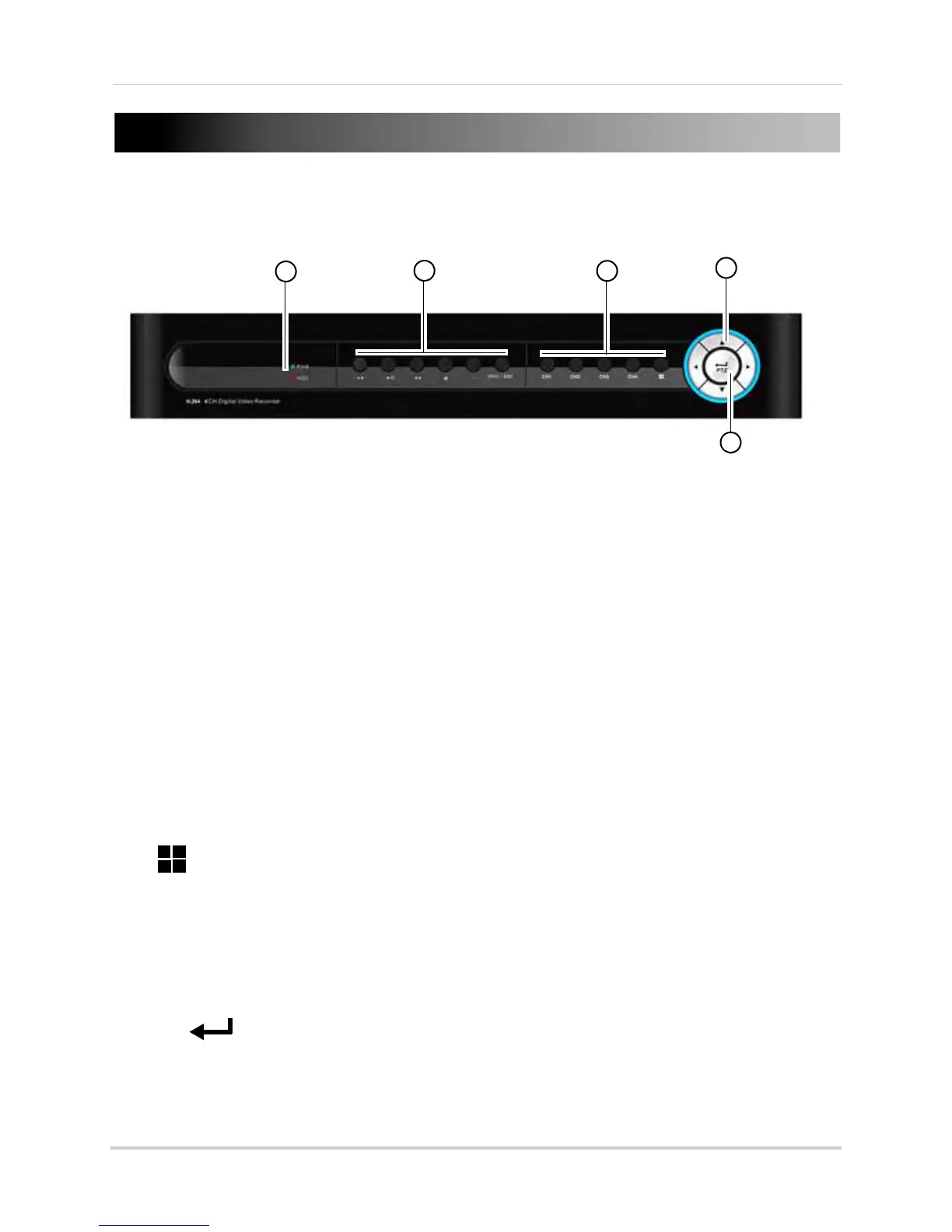

Front Panel
4-channel
1 IR Sensor: IR receiver for the remote control.
LED Indicators:
• PWR : P
ower LED
• HDD : Hard disk activity LED
2 Menu & Playback
Controls:
•
: In Playback mode, press for reverse playback. Press repeatedly to speed up video.
•
: In Playback mode, press to Play video. Press again to pause video playback
•
: In Playback mode, press to fast forward video. Press repeatedly to speed up video.
• : In Playback mode, press to stop video playback.
• In main viewing mode, press to stop DVR recording.
• :
Press to start/ resume recording. When the channel displays a red box with the letter "C",
the channel is recording.
• Menu / Esc: Opens the system menu / or press to exit a menu selection
3 Cha
nnel Controls:
• Ch
1 - Ch4: Press to swtich to full view of the selected channel
• Press to view video in quad-view (4-channel split)
4 Navigation Butt
ons:
•
S: Press to move cursor up
•
T: Press to move cursor down
•
W: Press to move cursor left
•
X:Press to move cursor right
5 PTZ / :
• Within system menus: Press to confirm a selection.
• In the main viewing mode, press to open the System Information window.
• In the main viewing mode, press and hold for 6 seconds to open the PTZ menu.
