Lorex LH114000 Series User Manual

5

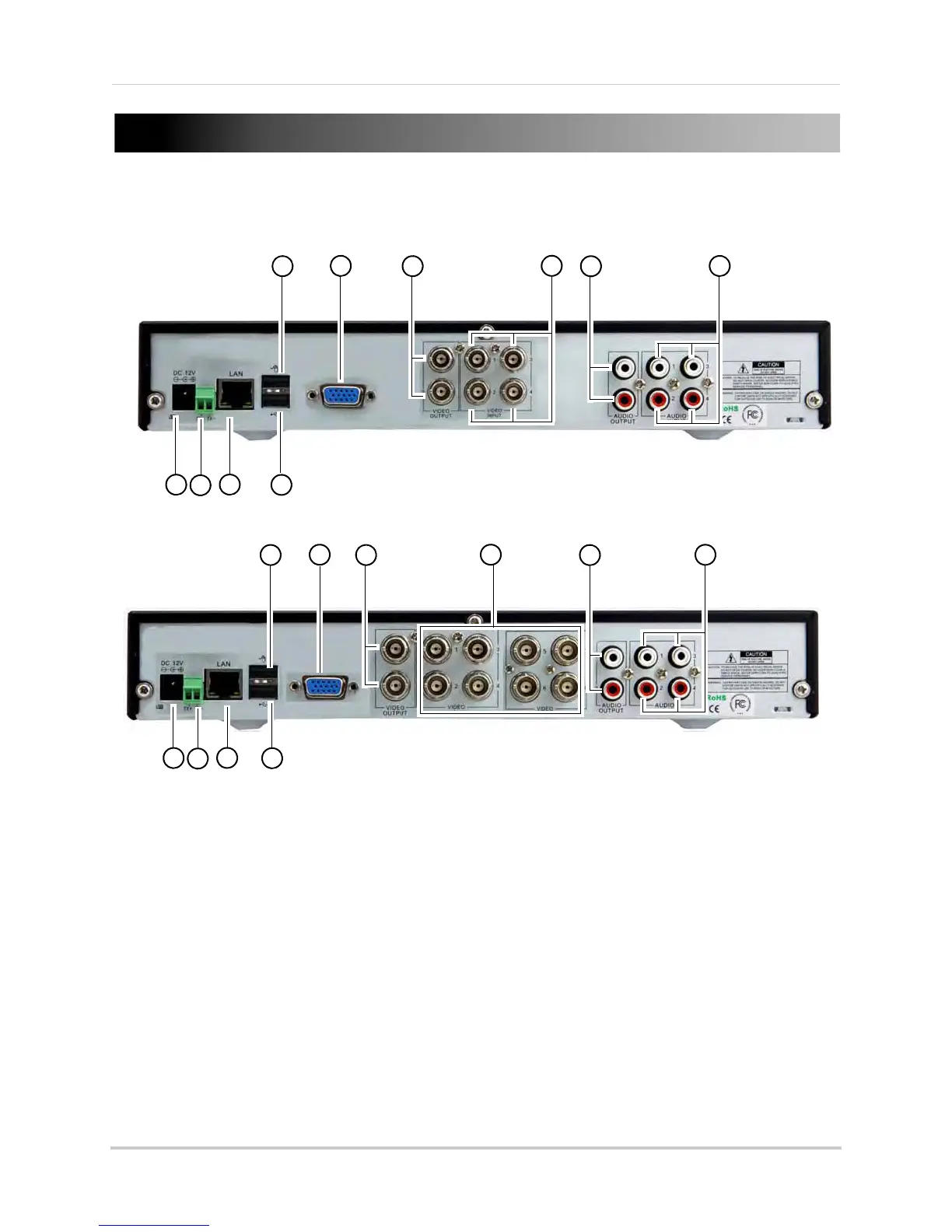

Rear Panel
4-channel
8-channel
1 DC12V: Connect the included AC power adapter to turn on the DVR.
2 PTZ Bl
ock: Connect the terminal wires for a PTZ (Pan Tilt Zoom) camera (not included)
3 LAN:
Connect a CAT 5 RJ45 Ethernet cable for local and remote connectivity.
4 USB P
ort (Firmware upgrades): USB port for firmware upgrades / media backup.
5 USB Mo
use port: Connect a USB mouse (included) for local system navigation.
6 VGA Output:
Connect a VGA monitor (not included) to view the system interface.
7 Video Out: Output
s the DVR interface to a BNC connection. This allows you to see your mouse
cursor, and have full control of the system on a secondary monitor.
8 BNC Video
IN: 4 Channel- Connect up to 4 cameras / 8 Channel - Connect up to 8 cameras.
9 Audio O
ut: Connect up to 2 output devices (i.e speakers).
10 Audio I
n: Connect up to 4 RCA audio-enabled cameras (not included).
7
6
5
8
1
2
9
10
3
4
7
6
5
8
1
2
9
10
3
4
