6

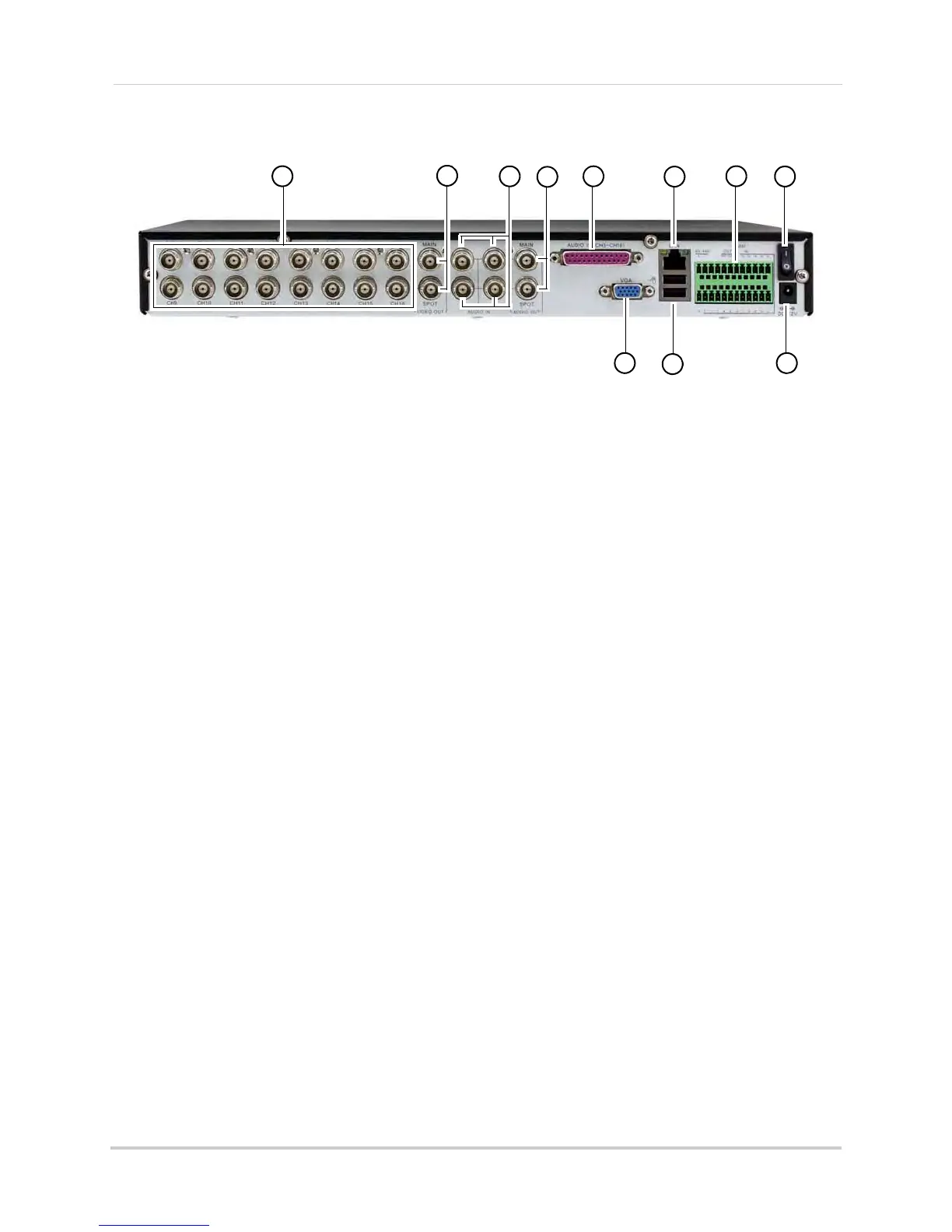

Rear Panel
16-channel
1 BNC Video IN: Connect up to 16 cameras.
2 M
ain & Spot Video Out:
• Main: Outputs
the DVR interface to a BNC connection. This allows you to see your mouse
cursor, and have full control of the system on a secondary monitor.
• Spot Video Out: Outputs the DVR interface to a BNC connection. This allows you to see the
DVR interface only, with no access to the mouse cursor.
3 Audio In: Connect
up to 4 RCA audio-enabled cameras (not included). BNC to RCA connectors
required (not included).
4 Audio O
ut: Connect up to 2 output devices (i.e speakers, not included). BNC to RCA
connectors required (not included).
5 Audi
o In (Channels 5-16): Connect up to 12 RCA audio-enabled cameras (not included) using
the audio harness cable (BNC to RCA connectors required, not included). For details, see
“Appendix J: Recording Audio” on page 115.
6 LAN:
Connect a CAT 5 RJ45 Ethernet cable for local and remote connectivity.
7 PTZ / Alarm
Block: Connect a PTZ camera and Alarm Devices (not included)
8 On / Off Switc
h: Turns the DVR on or off.
9 VGA Output:
Connect a VGA monitor (not included) to view the system interface.
10 USB
Mouse port (top): Connect a USB mouse (included) for local system navigation.
• US
B Port (bottom): Connect a USB flash drive to upgrade the system firmware or as a media
device for video backup.
11 DC
12V: Connect the included AC power adapter to turn on the DVR.
