LSIS XEC-DR64H User Manual

Chapter 7 Input/Output Specifications
7-8

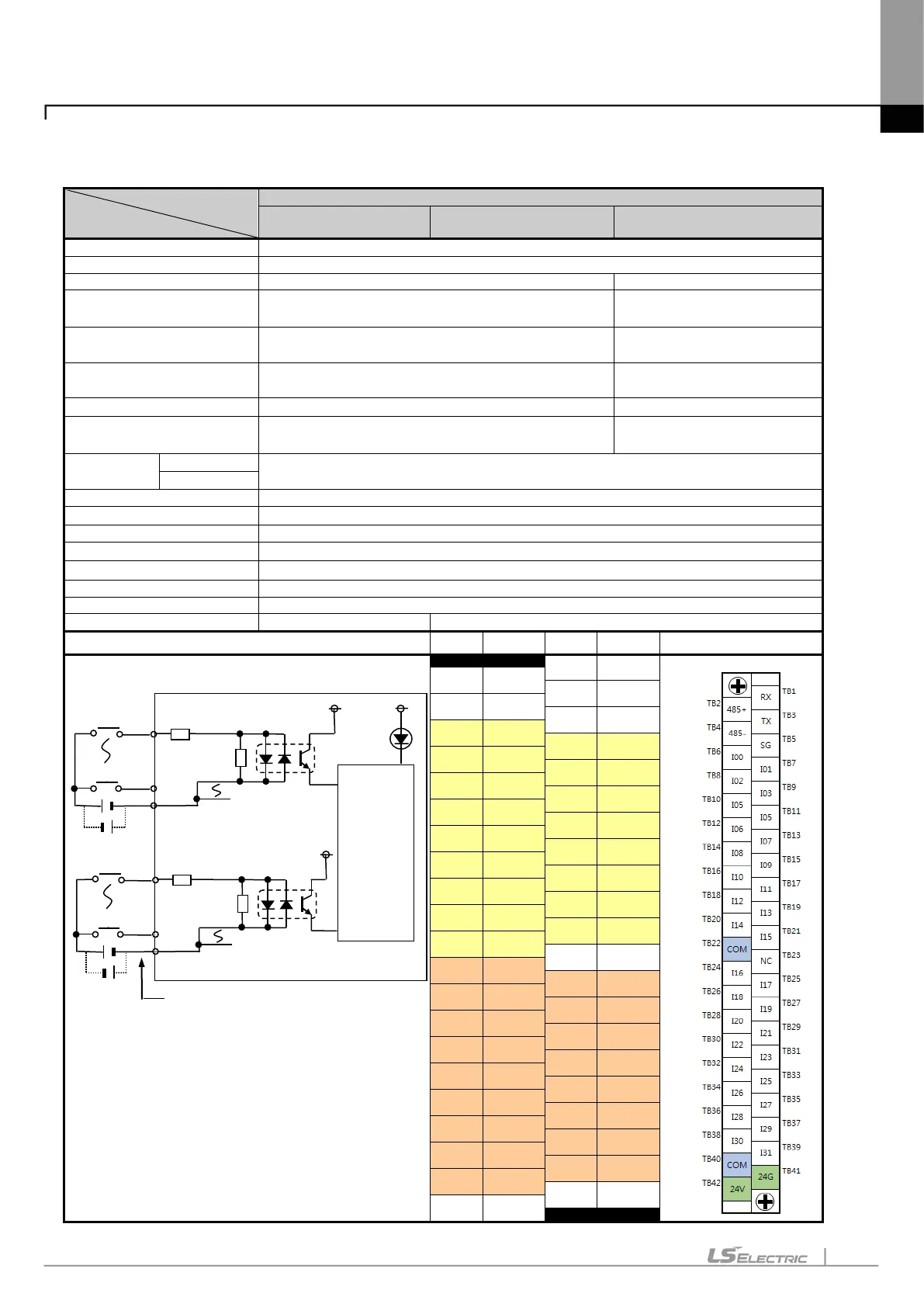

7.2.2 XEC-DR64H / XEC-DN64H input unit (Source/Sink Type)
Model
Specification
Main unit
XEC-DN64H XEC-DR64H XEC-DR64H/D1
Input point
32 point
Insulation method
Photo coupler insulation
Rated input voltage
DC24V
DC 12/24V
Rated input current
About 4 ㎃ (point 0~7: About 10 ㎃)
About 5/10
㎃
(point 0~7: About 7/15
㎃
)
Operation voltage range DC20.4~28.8V (ripple rate < 5%)
DC 9.5~30V
(ripple rate < 5%)
On Voltage/Current
DC19V or higher / 3 ㎃ or higher
DC9V or higher / 3
㎃
or
higher
Off Voltage/Current
DC6V or less / 1
㎃
or less
DC5V or less / 1
㎃
or less
Input resistance About 5.6 ㏀ (%IX0.0.0~%IX0.0.7: About 2.7 ㏀)
About 2.7
㏀
(%IX0.0.0
~%IX0.0.7: About 1.8
㏀
)
Response
time
Off → On
1/3/5/10/20/70/100 ㎳ (set by CPU parameter) Default: 3 ㎳
On → Off
Insulation pressure
AC560Vrms / 3Cycle (altitude 2000m)
Insulation resistance
10
㏁
or more by Mega ohmmeter
Common method
16 point / COM
Proper cable size
0.3
㎟
Current consumption
200
㎃
(when all point On)
Operation indicator
Input On, LED On
External connection method
42 point connecting connector (M3 X 6 screw)
Weight
800g
900g
Circuit configuration
No. contact No. contact
type
TB1 RX
TB2 485+
TB3 TX
TB4 485-
TB5 SG
TB6 00
TB7 01
TB8 02
TB9 03
TB10 04
TB11 05
TB12 06
TB13 07
TB14 08
TB15 09
TB16 10
TB17 11
TB18 12
TB19 13
TB20 14
TB21 15
TB22 COM
TB23 NC
TB24 16
TB25 17
TB26 18
TB27 19
TB28 20
TB29 21
TB30 22
TB31 23
TB32 24
TB33 25
TB34 26
TB35 27
TB36 28
TB37 29
TB38 30
TB39 31
TB40 COM
TB41 24G
TB42 24V
DC24V
Internal
circuit
R
0F
00
TB6
COM0
Photo coupler
TB21
TB22
R
DC24V
R
1F
10
TB24
COM1
Photo coupler
Terminal block no.
TB39
TB40
R
