LSIS XEC-DR64H User Manual

Chapter 7 Input/Output Specifications
7-14

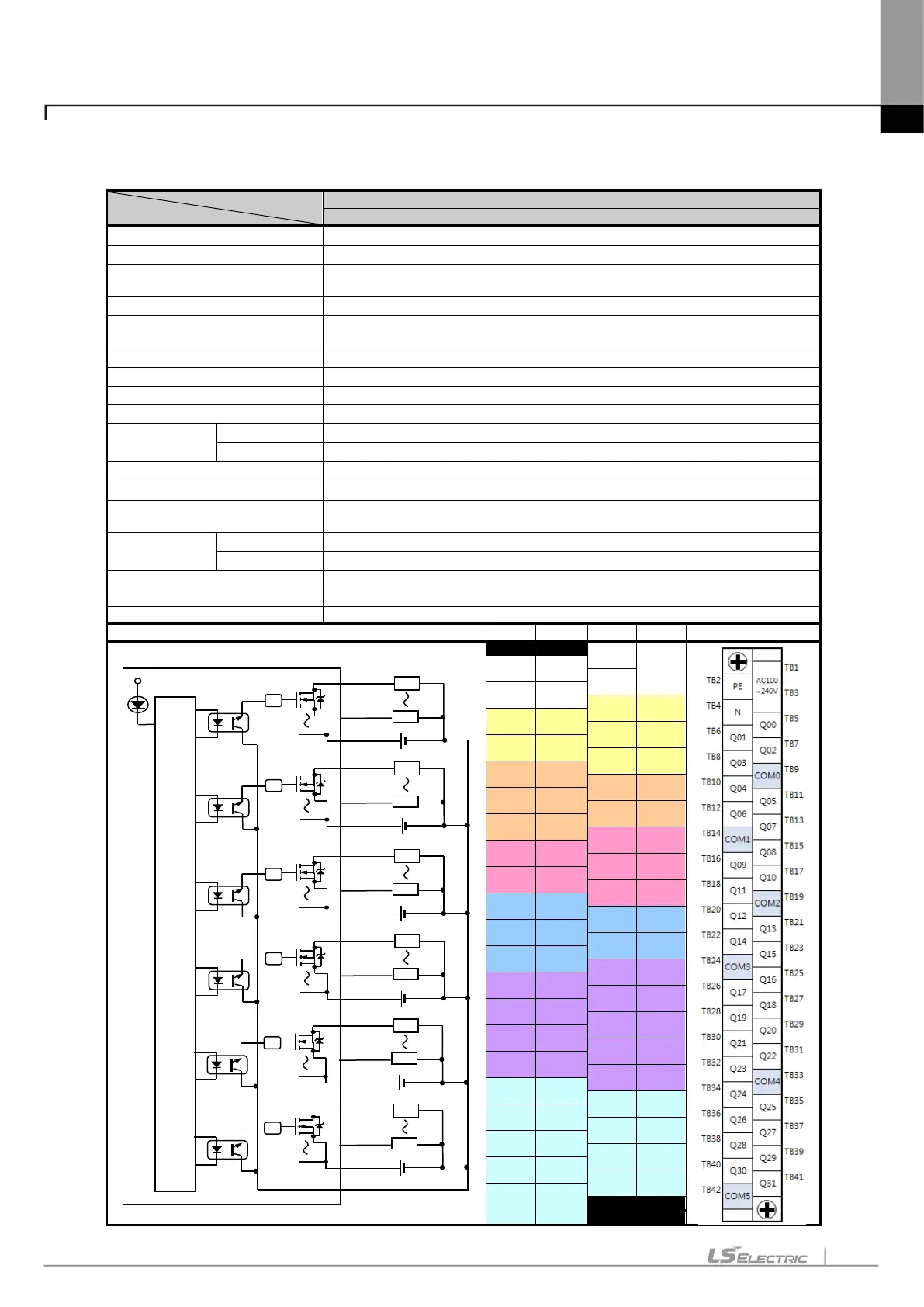

7.3.6 XEC-DP64H Output unit (Source type)
Model
Specification
Main unit
XEC-DP64H
Output point
32 point
Insulation method
Photo coupler insulation
Rated load
voltage
DC 12 / 24V
Load voltage range
DC 10.2 ~ 26.4V
Max. load current
General output: 0.5A/1 point, 2A / 1COM
Output for positioning (%QX0.0.0 ~ %QX0.0.3): 0.1A/1 point, 0.4A/1COM
Off leakage current
0.1
㎃
or less
Max. inrush current
4A / 10
㎳
or less
On max. voltage drop
DC 0.4V or less
Surge killer
Zener diode
Response
time
Off → On
1
㎳
or less
On → Off
1
㎳
or less (Rated load, Resistive load)
Common method
4 point / COM (COM0~COM3), 8 point / COM (COM4~COM5)
Proper cable size
Strand wire 0.3~0.75
㎟
(external diameter 2.8
㎜
or less)
Internal consumption
current
510 ㎃ (When all output are on)
External power
supply
Voltage
DC12/24V ± 10% (Ripple voltage 4 Vp-p or less)
Current
25
㎃
or less (when connecting DC24V)
Operation indicator
Output On, LED On
External connection method
42 point connecting connector (M3 X 6 screw)
Weight
800g
Circuit configuration
No.
contact
No.
contact
Type
TB1
AC100
~240V
TB2 PE
TB3
TB4 N
TB5 00
TB6 01
TB7 02
TB8 03
TB9
COM
0
TB10 04
TB11 05
TB12 06
TB13 07
TB14 COM1
TB15 08
TB16 09
TB17 10
TB18 11
TB19
COM
2
TB20 12
TB21 13
TB22 14
TB23 15
TB24 COM3
TB25 16
TB26 17
TB27 18
TB28 19
TB29 20
TB30 21
TB31 22
TB32 23
TB33
COM
4
TB34 24
TB35 25
TB36 26
TB37 27
TB38 28
TB39 29
TB40 30
TB41 31
TB42 COM5
TB04
DC12/24V
R
TB08
DC12/24V
R
TB13
TB14
DC12/24V
R
TB15
TB18
TB19
DC12/24V
R
TB20
TB23
TB24
DC5V
DC12/24V
R
TB25
TB32
TB33
DC12/24V
R
TB34
TB41
TB42
TB09
TB10
내
부
회
로
TB05
