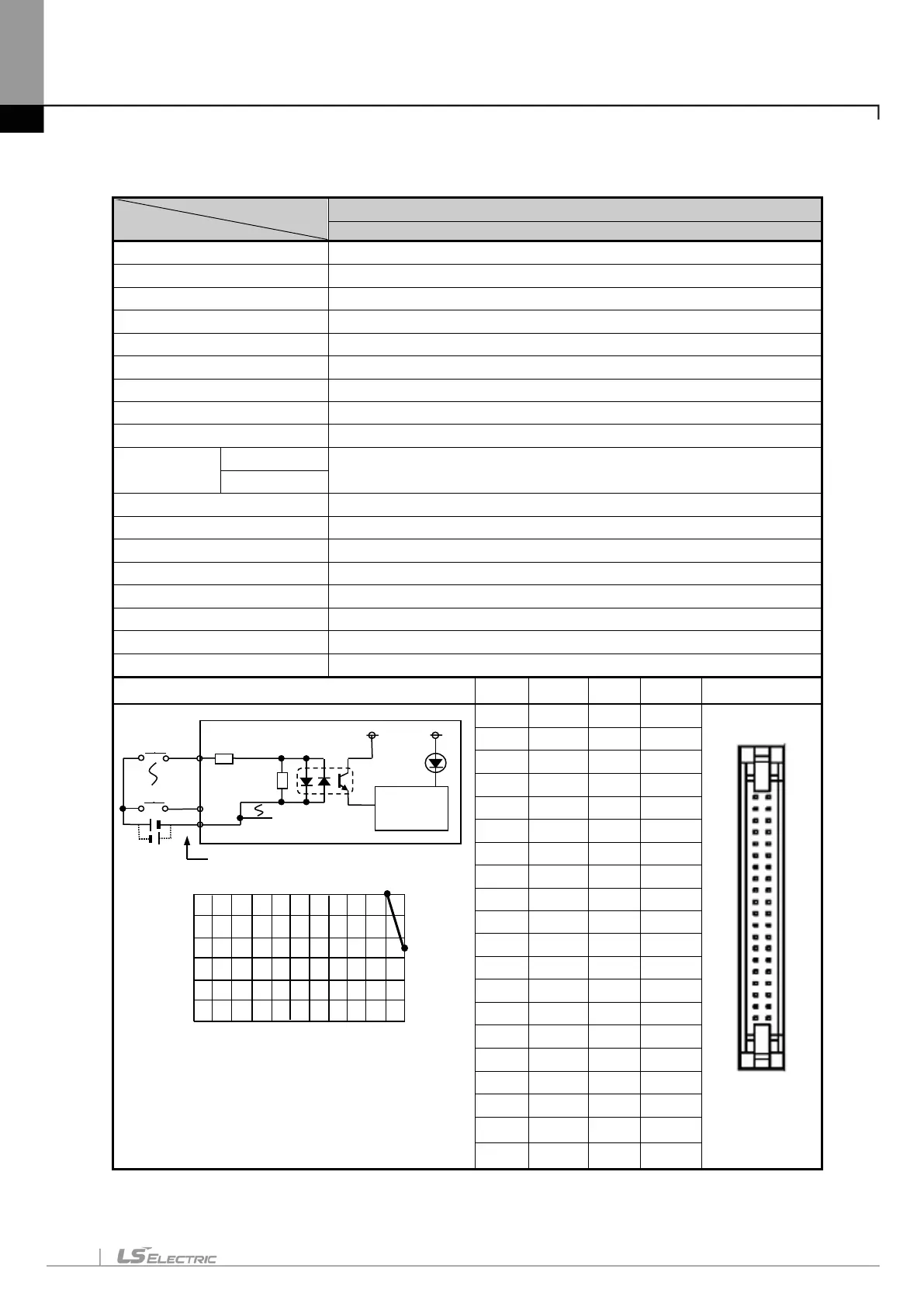

7.6.2 16 point DC24V input (Source/Sink type)
Model
Specification
DC input module
XBE-DN32A
Input point
16 point
Insulation method
Photo coupler insulation
Rated input voltage
DC24V
Rated input current
About 4 ㎃
Operation voltage range
DC20.4~28.8V (ripple rate < 5%)
Input Derating
Refer to Derating diagram
On Voltage/Current
DC 19V or higher / 3 ㎃ or higher
Off Voltage/Current
DC 6V or less / 1 ㎃ or less
Input resistance
About 5.6 ㏀
Response
time
Off
→
On
1/3/5/10/20/70/100 ㎳ (set by CPU parameter) Default:3 ㎳
On
→
Off
Insulation pressure
AC 560Vrms / 3 Cycle (altitude 2000m)
Insulation resistance
10 ㏁ or more by Megohmmeter
Common method
16 point / COM
Proper cable size
0.3 ㎟
Current consumption 60
㎃
(When all inputs and outputs are on)
Operation indicator
Input On, LED On
External connection method
40 pin connector
Weight
60g
Circuit configuration No.
Contact
No.
Contact
Type
B20 00 A20 20
B19 01 A19 21
B18 02 A18 22
B17 03 A17 23
B16 04 A16 24
B15 05 A15 25
B14 06 A14 26
B13 07 A13 27
B12 08 A12 28
B11
09
A11
29
B10
0A
A10
2A
B09 0B A09 2B
B08 0C A08 2C
B07 0D A07 2D
B06 0E A06 2E
B05 0F A05 2F
B04
NC
A04
P
B03
NC
A03
P
B02
IN_COM
A02
OUT_CO
M
B01
IN_COM
A01
OUT_CO
M
DC28 8V
DC24V
Internal
circuit
R
1F
0
B20
COM
Photo coupler
Terminal block no.
B05
B02
R
B20
B19
B18
B17
B16
B15
B14
B13
B12
B11
B10
B09
B08
B07
B06
B05
B04
B03
B02
B01
A20
A19
A18
A17
A16
A15
A14
A13
A12
A11
A10
A09
A08
A07
A06
A05
A04
A03
A02
A01
100
80
60
40
0
10
20
30
40
50
55
℃
On rate (%)
Ambient temperature
90
70
50
Input Derating diagram
