LSIS XEC-DR64H User Manual

Chapter 7. Input/Output Specifications
7-23

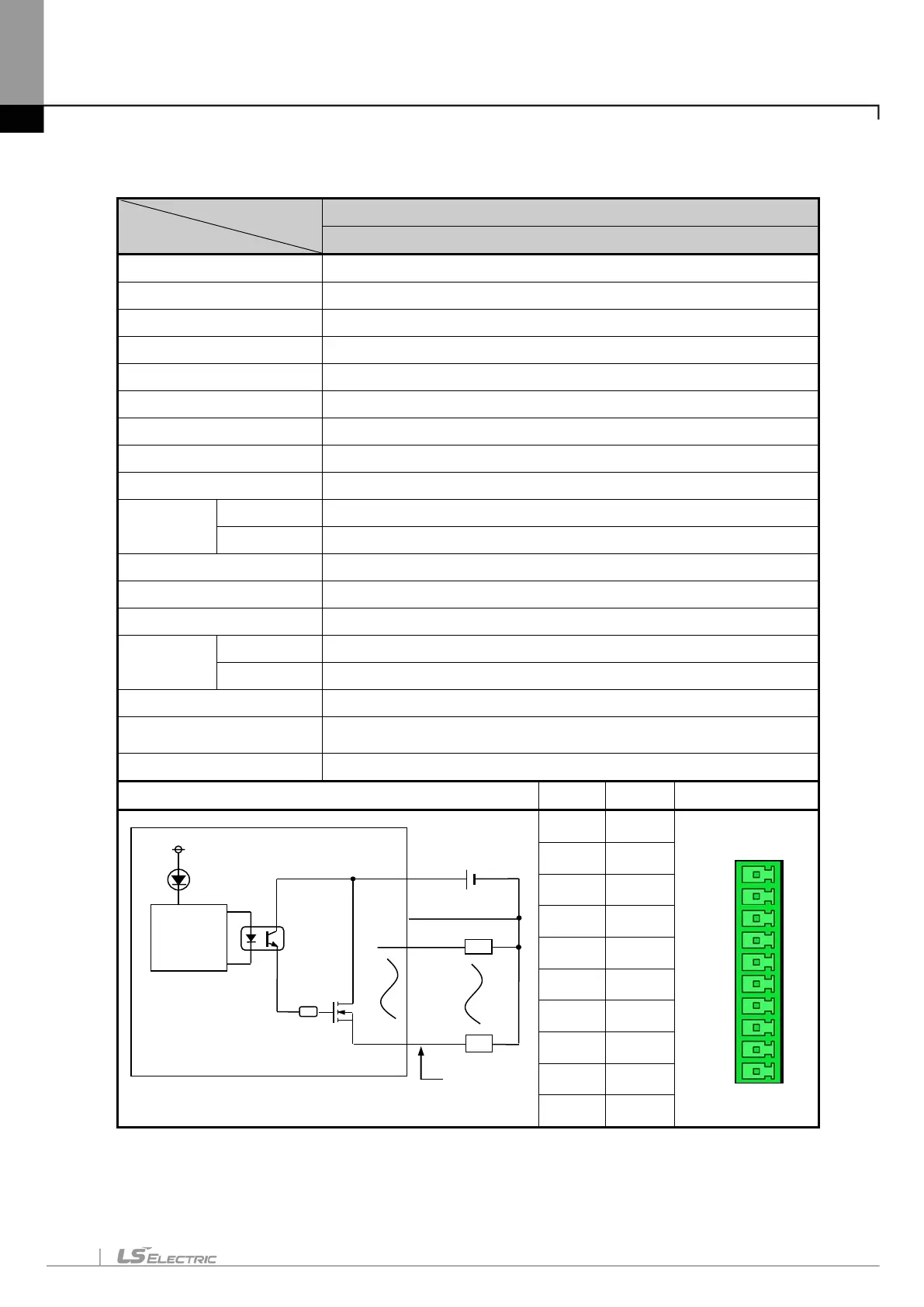

7.5.6 8 point transistor output module (Source type)
Model
Specification
Transistor output module
XBE-TP08A
Output point 8 point
Insulation method Photo coupler insulation
Rated load voltage DC 12 / 24V
Load voltage range DC 10.2 ~ 26.4V
Max. load voltage 0.5A / 1 point
Off leakage current
0.1 ㎃ or less
Max. inrush current
4A / 10 ㎳ or less
Max. voltage drop (On) DC 0.4V or less
Surge absorber Zener Diode
Response
time
Off → On
1 ㎳ or less
On → Off
1 ㎳ or less (Rated load, resistive load)
Common method 8 point / COM
Proper cable size
Stranded wire 0.3~0.75 ㎟ (external diameter 2.8 ㎜ or less)
Current consumption
40 ㎃ (when all point On)
External
power
supply
Voltage
DC12/24V ± 10% (ripple voltage 4 Vp-p or less)
Current 10 ㎃ or less (DC24V connection)
Operation indicator Output On, LED On
External connection
method
10 pin connector
Weight 30g
Circuit configuration No.
Contact
Type
TB01 0
TB02 1
TB03 2
TB04 3
TB05 4
TB06 5
TB07 6
TB08 7
TB09 COM
TB10 0V
TB01
TB02
TB03
TB04
TB05
TB06
TB07
TB08
TB09
TB10
DC5V
R
Internal
circuit
Terminal block no.
TB09
TB10
TB01
TB08
