LSIS XEC-DR64H User Manual

Chapter 7. Input/Output Specifications
7-7

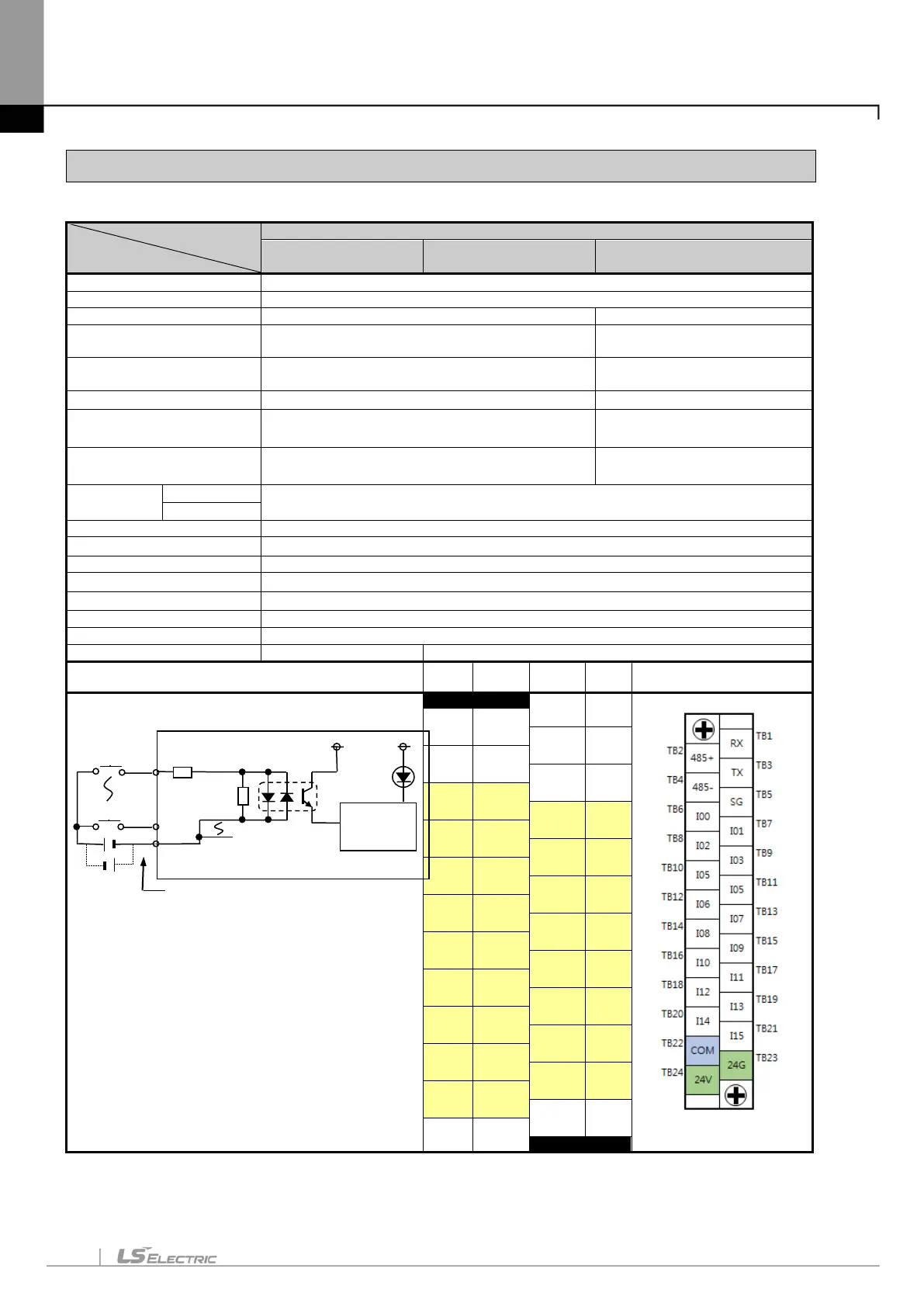

7.2 Digital Input Specifications of Main Unit
7.2.1 XEC-DR32H / XEC-DN32H input unit (Source/Sink type)
Model
Specification
Main unit
XEC-DN32H(/DC)
XEC-DP32H
XEC-DR32H XEC-DR32H/D1
Input point
16 point
Insulation method
Photo coupler insulation
Rated input voltage
DC24V
DC12/24V
Rated input current
About 4 ㎃ (point 0~7: About 10 ㎃)
About 5/10mA
(point 0~7: about 7/15mA)
Operation voltage range DC20.4~28.8V (ripple rate < 5%)
DC9.5~30V
(ripple rate < 5%)
On Voltage/Current
DC19V or higher / 3
㎃
or higher
DC9V or higher / 3
㎃
or higher
Off Voltage/Current
DC6V or less / 1 ㎃ or less
DC 5V or less /
1
㎃
or less
Input resistance
About 5.6 ㏀ (%IX0.0.0~%IX0.0.7: About 2.7 ㏀)
About 2.7
㏀
(%IX0.0.0
~%IX0.0.7: About 1.8
㏀
)
Response
time
Off → On
1/3/5/10/20/70/100 ㎳ (set by CPU parameter) Default: 3 ㎳
On → Off
Insulation pressure
AC560Vrms / 3Cycle (altitude 2000m)
Insulation resistance
10
㏁
or more by Mega ohmmeter
Common method
16 point / COM
Proper cable size
0.3
㎟
Current consumption
200
㎃
(when all point On)
Operation indicator
Input On, LED On
External connection method
24 points connecting connector (M3 X 6 screw)
Weight
500g
600g
Circuit configuration
No. Contact No.
Conta
ct
Type
TB1 RX
TB2 485+
TB3 TX
TB4 485-
TB5 SG
TB6 00
TB7 01
TB8 02
TB9 03
TB10 04
TB11 05
TB12 06
TB13 07
TB14 08
TB15 09
TB16 10
TB17 11
TB18 12
TB19 13
TB20 14
TB21 15
TB22 COM
TB23 24G
TB24 24V
DC24V
Internal
circuit
R
F
0
B10
COM
Photocoupler
Terminal block no.
A03
B02
R
