LSIS XEC-DR64H User Manual

Chapter 7 Input/Output Specifications
7-20

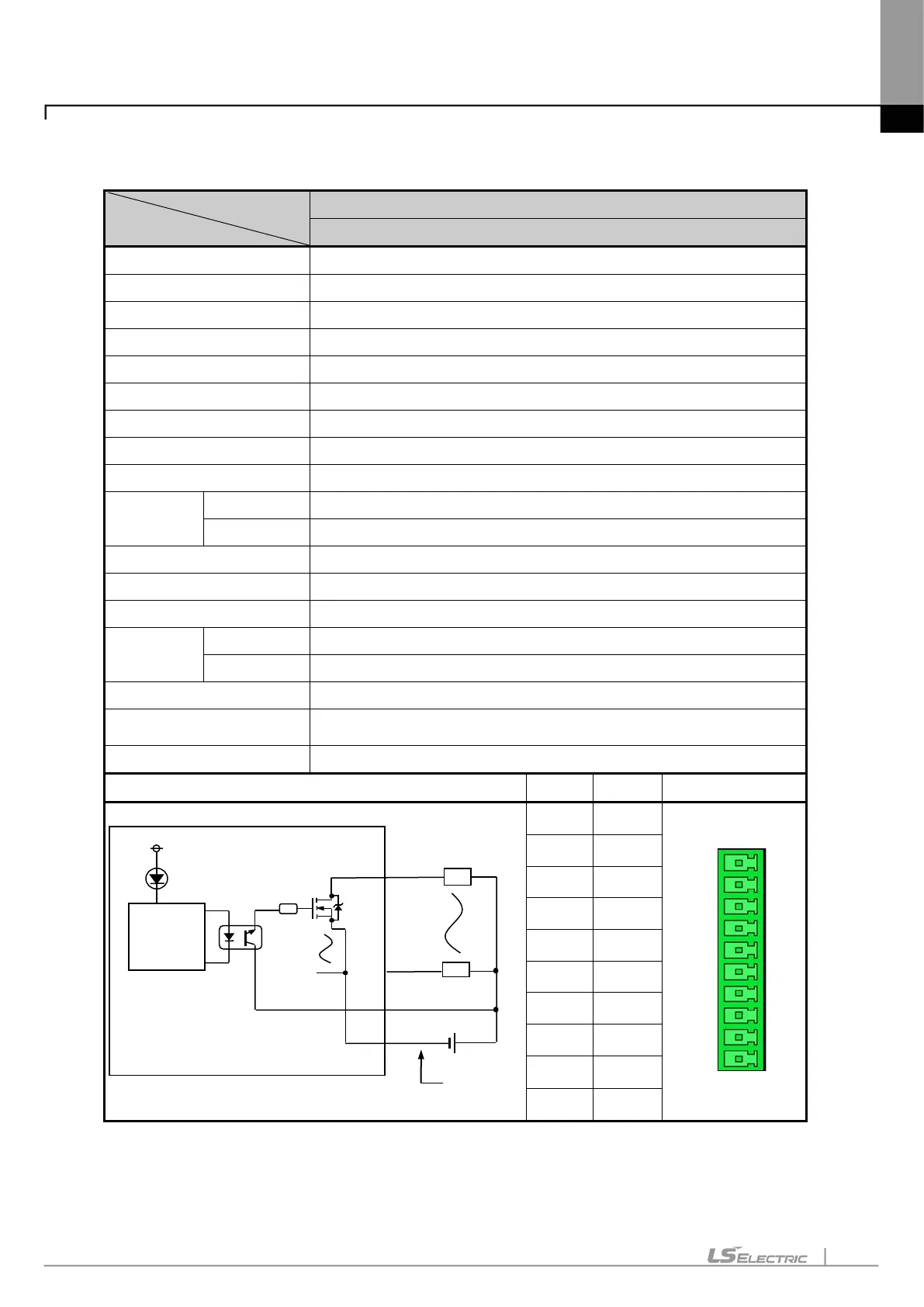

7.5.3 8 point transistor output module (Sink type)
Model
Specification
Transistor output module
XBE-TN08A
Output point 8 point
Insulation method Photo coupler insulation
Rated load voltage DC 12 / 24V
Load voltage range DC 10.2 ~ 26.4V
Max. load voltage 0.5A / 1 point
Off leakage current 0.1 ㎃ or less
Max. inrush current 4A / 10 ㎳ or less
Max. voltage drop (On) DC 0.4V or less
Surge absorber Zener Diode
Response
time
Off → On
1 ㎳ or less
On → Off
1 ㎳ or less (Rated load, resistive load)
Common method 8 point / COM
Proper cable size Stranded pair 0.3~0.75 ㎟ (External diameter 2.8 ㎜ or less)
Current consumption
40 ㎃ (when all point On)
External
power
supply
Voltage
DC12/24V ± 10% (ripple voltage 4 Vp-p or less)
Current
10 ㎃ or less (DC24V connection)
Operation indicator Output On, LED On
External connection
method
10 point terminal block connector
Weight 53
Circuit configuration No. Contact Type
TB01 0
TB02 1
TB03 2
TB04 3
TB05 4
TB06 5
TB07 6
TB08 7
TB09
DC12
/24V
TB10 COM
TB01
TB02
TB03
TB04
TB05
TB06
TB07
TB08
TB09
TB10
Terminal block no.
DC12/24V
R
Internal
circuit
TB01
TB09
TB08
TB10
DC5V
