LSIS XEC-DR64H User Manual

Chapter 7. Input/Output Specifications
7-9

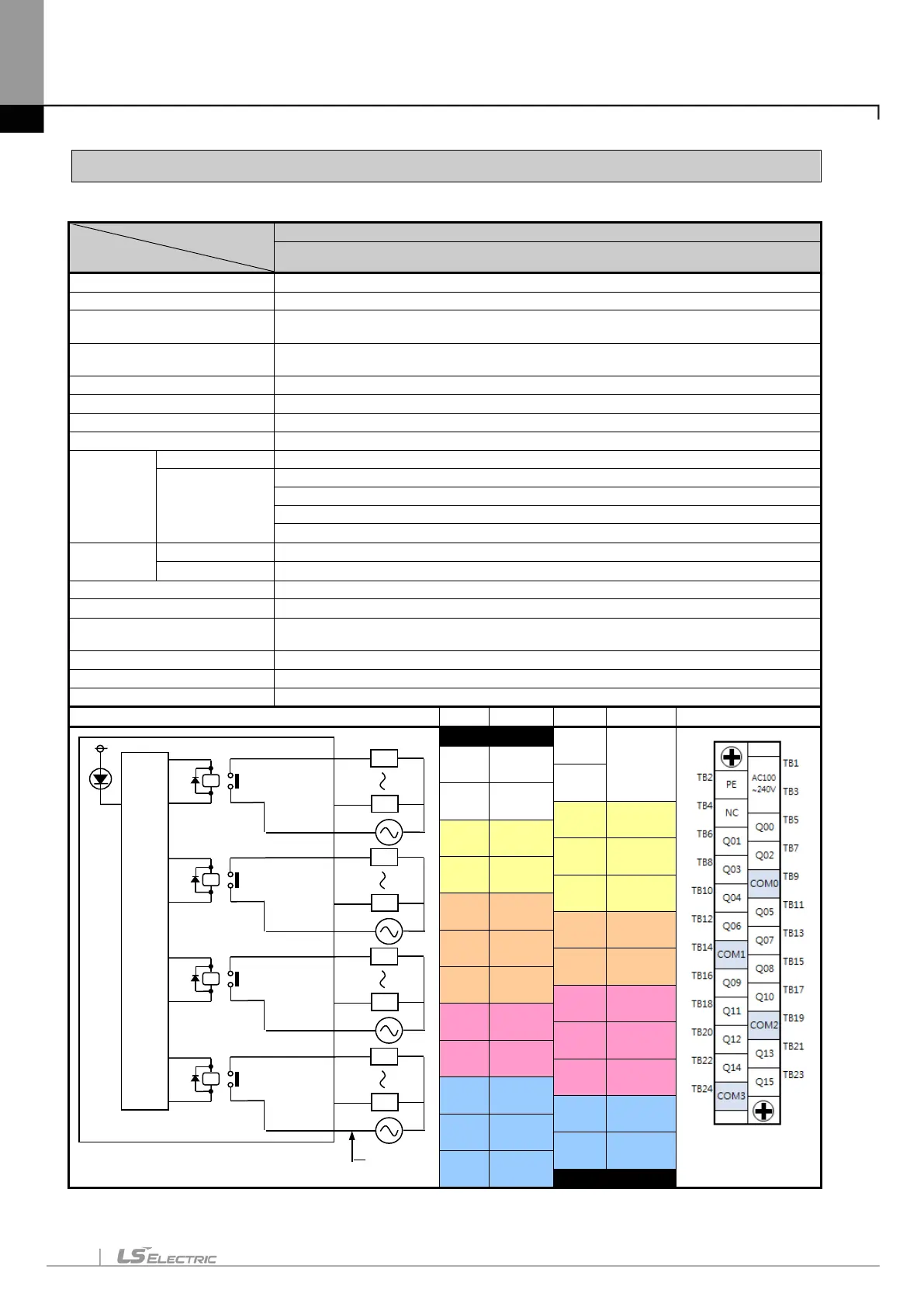

7.3 Digital Output Specification of Main Unit
7.3.1 XEC-DR32H output unit
Model
Specification
Main unit
XEC-DR32H
Output point
16 point
Insulation method
Relay insulation
Rated load
voltage/current
DC24V 2A (Resistive load) / AC220V 2A (COSΦ = 1), 5A/COM
Min. load
voltage/current
DC5V / 1 ㎃
Max. load voltage
AC250V, DC125V
Off leakage current
0.1
㎃
(AC220V, 60
㎐
)
Max. on/off frequency
3,600 times / hour
Surge killer
None
Life
Mechanical
20 million or above
Electrical
Rated load voltage / current one hundred thousand or above
AC200V / 1.5A, AC240V / 1A (COSΦ = 0.7) one hundred thousand or above
AC200V / 1A, AC240V / 0.5A (COSΦ = 0.35) one hundred thousand or above
DC24V / 1A, DC100V / 0.1A (L / R = 7
㎳
) one hundred thousand or above
Response
time
Off → On
10
㎳
or less
On → Off
12
㎳
or less
Common method
4 point / COM
Proper cable size
Strand wire 0.3~0.75
㎟
(External diameter 2.8
㎜
or less)
Internal consumption
current
360 ㎃ (When all output are on)
Operation indicator
Output On, LED On
External connection method
24 point connecting connector (M3 X 6 screw)
Weight
600g
Circuit configuration
No.
contact
No.
Contact
Type
TB1
AC100
~ 240V
TB2 PE
TB3
TB4 NC
TB5 00
TB6 01
TB7 02
TB8 03
TB9 COM0
TB10 04
TB11 05
TB12 06
TB13 07
TB14 COM1
TB15 08
TB16 09
TB17 10
TB18 11
TB19 COM2
TB20 12
TB21 13
TB22 14
TB23 15
TB24 COM3
RY
I
N
T
E
R
N
A
l
C
I
R
C
U
I
T
TB5
TB9
TB8
RY
TB10
TB14
TB13
RY
TB15
TB19
TB18
RY
Terminal block no.
TB20
TB24
TB23
COM0
COM1
COM2
COM3
