Chapter 9. Installation and Wiring
9-10
(3) Installation of module

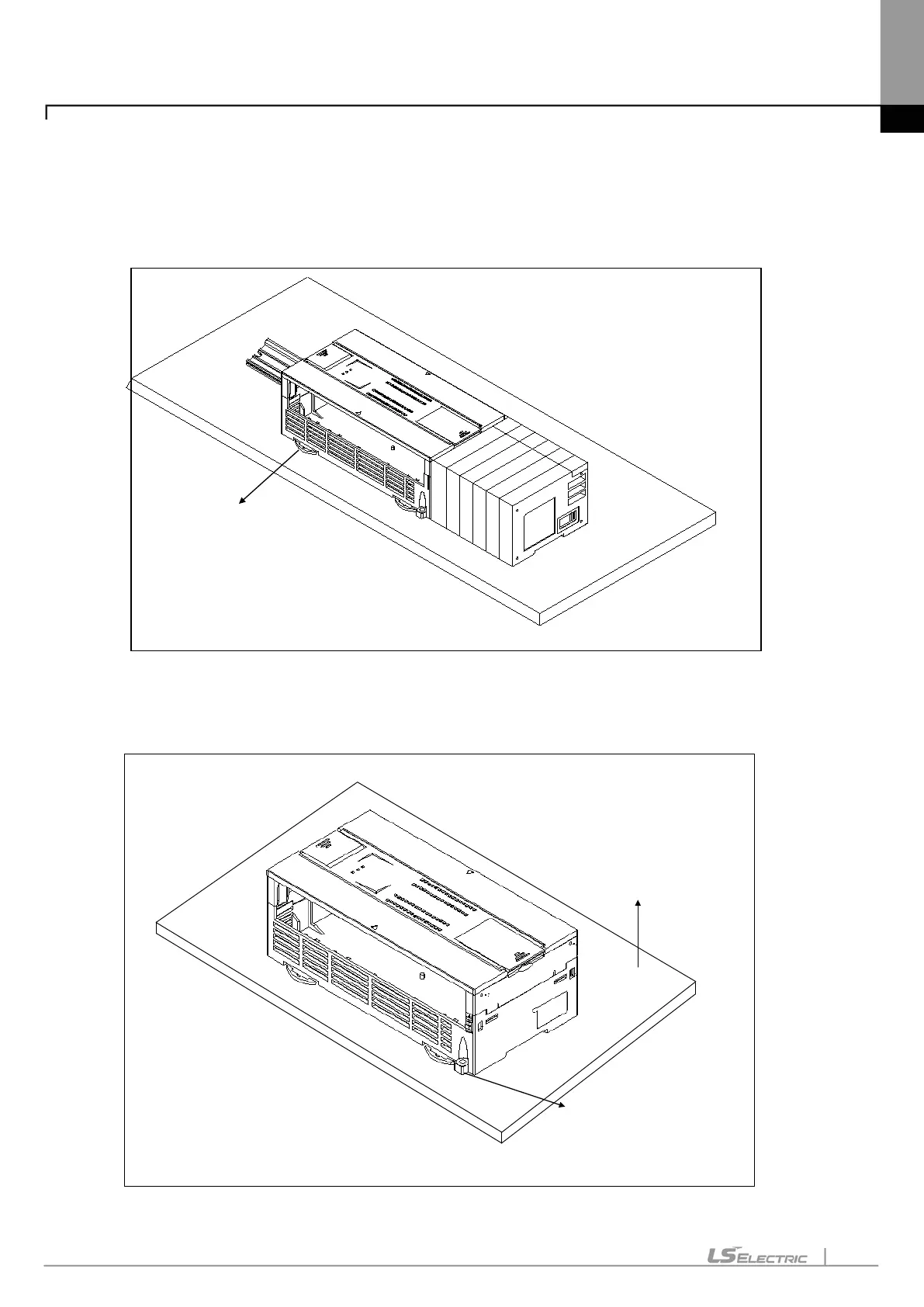

Since XGB PLC equips Hook for DIN rail (width of rail: 35mm), so XGB can be installed at DIN rail.
(a) When installing module at DIN rail
• Pull Hook for DIN rail and install module at DIN rail
• After installing module at DIN rail, push Hook to fix the module.
(b) When installing module at panel directly
• XGB compact type main unit can be installed at panel directly through screw hole.
• When installing module at panel, use M4 type screw.
