Lucent Technologies MERLIN LEGEND Release 6.1 System Manager's Guide

MERLIN LEGEND Communications System Release 6.1
System Manager’s Guide 555-661-118
Issue 1
August 1998
System Components
Page 3-19Telephones
3
MLX-10D 3
The MLX-10D telephone (Figure 3–7) provides the following features:
■ Display (2 lines by 24 characters)
■ 10 line buttons that can be programmed with features
■ 4 fixed display buttons, 4 unlabeled display buttons for screen selection,
and 8 fixed-feature buttons
MLX-10D telephones can be wall-mounted, but wall-mounting makes the display
hard to read.
NOTE:
The MLX-10D should not be an operator console.

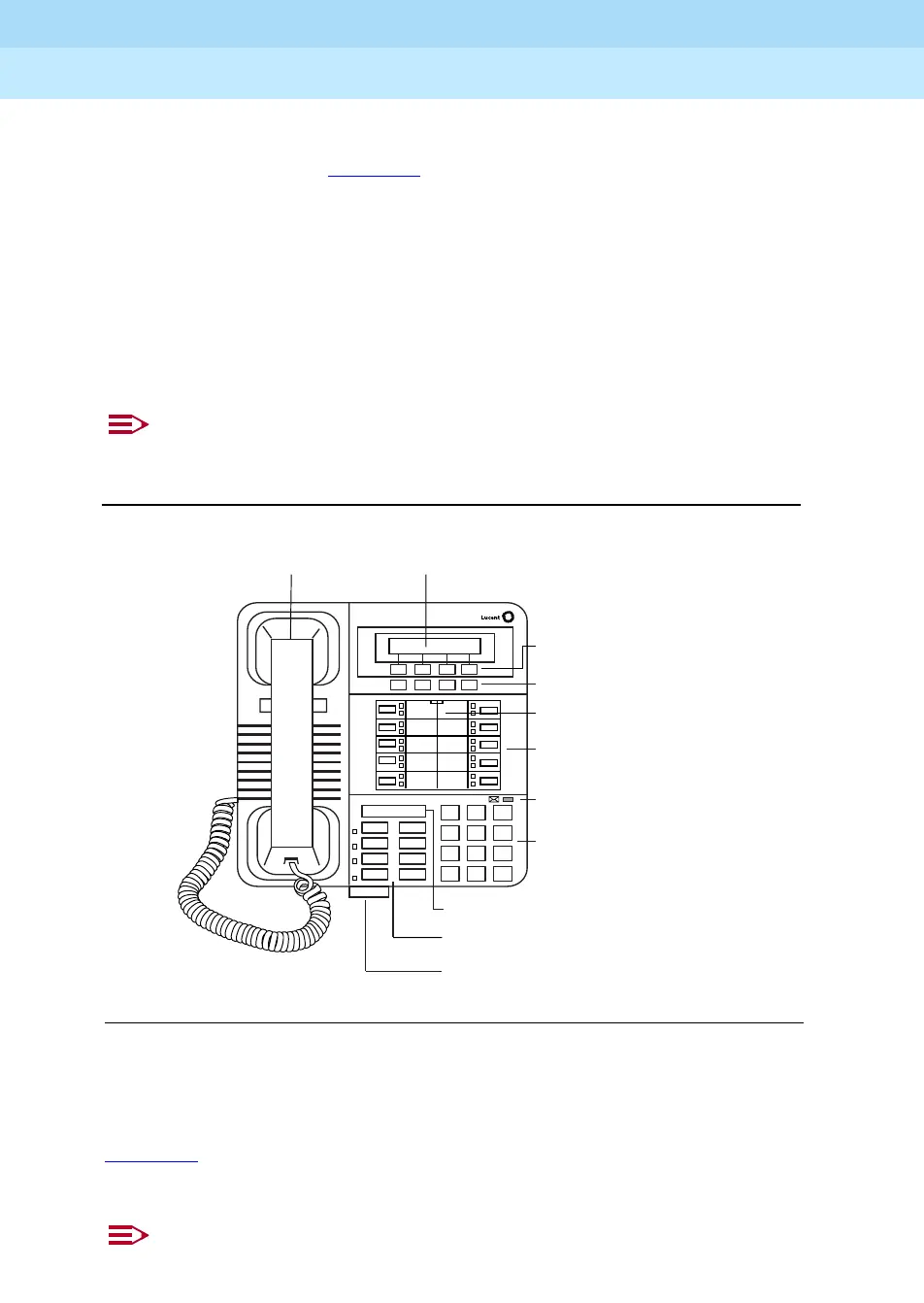

Figure 3–7. MLX-10D Telephone
MLX-10DP 3
The MLX-10DP telephone is the same as the MLX-10D telephone (see
Figure 3–7
), except that the MLX-10DP has an adjunct jack in the back of it for
connecting PassageWay Direct Connection Solution applications.
NOTE:
The MLX-10DP should not be an operator console.
Button Labeling Card
Handset
Volume Control
Fixed-Feature Buttons (8)
User Cards and Tray
Message Light
Dialpad
Line Buttons (10)
Fixed- Display Buttons (4)
Display Screen
MLX-10D
0
#
*
ABC DEF
GHI JKL
MNO
PQRS TUV WXYZ
OPER
123
456
789
Home
Menu Inspct
More
v
v
Volume
Feature
HFAI
Mute
Speaker
Transfer
Conf
Drop
Hold
Unlabeled Display Buttons (4)
