Putting the System to Work
Page 5-16Scenario 2: A Professional Office
5

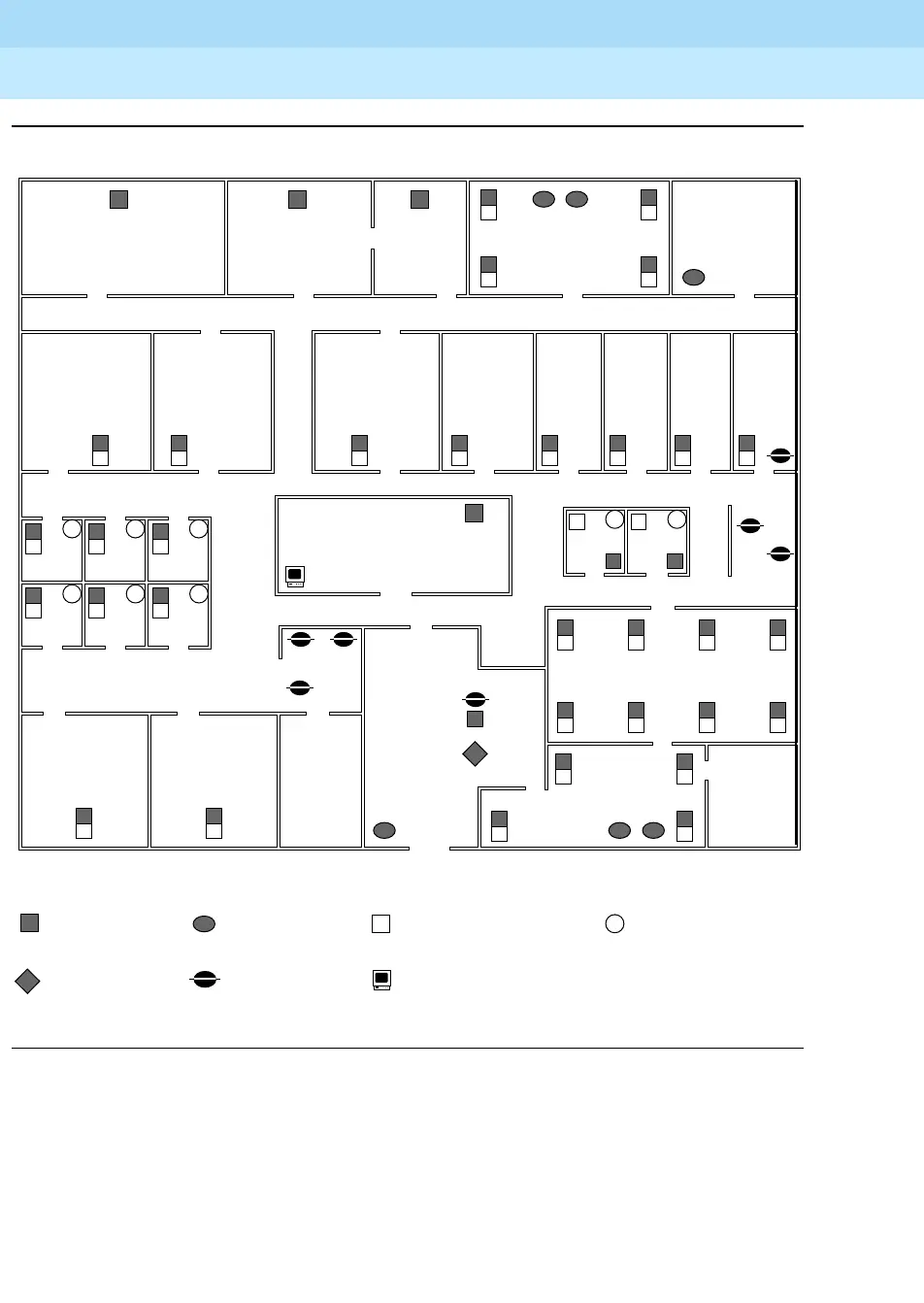

Figure 5–3. Law Firm Equipment
Records/Filing
Conference
Room
Managing
Partner
Junior
Partner
Junior
Partner
Main
Conference
Room
Associate
Main Entrance
Paralegals
(8)
Reception
Area
Operator/
Receptionist
Supplies
Word
Processing
Pool (4)
Associate Associate Associate
Equipment
Equipment
Library
Junior
Partner
Senior
Partner
Office
Manager
Partner's
Sect'y
Partner's
Sect'y
Partner's
Sect'y
Asso.
Sect'y
Asso.
Sect'y
Partner's
Sect'y
Partner's
Sect'y
Gen'l
Sect’y
Meeting
Room
Bookkeeping
and Accounting (4)
Staff
Lounge
MLX
TELEPHONE
SINGLE-LINE
TELEPHONE
OPERATOR
POSITION
COMPUTER
OR DATA TERMINAL
ADJUNCT VIDEOCONFERENCING
EQUIPMENT
FAX
DSS
FAX
DSS
FAX FAX
FAX
PASSAGEWAY
APPLICATION
PW
PW
PW
PW PW PW
PW PW
PW
