MERLIN LEGEND Communications System Release 6.1
System Manager’s Guide
555-661-118
Issue 1
August 1998
System Components
Page 3-21Telephones
3
MLX-5D 3
The MLX-5D telephone (Figure 3–9) provides the following features:
■ Display (2 lines by 24 characters)
■ 5 line buttons that can be programmed with features
■ 4 fixed display buttons, 4 unlabeled display buttons for screen selection,
and 8 fixed-feature buttons
NOTES:
1. The MLX-5D telephone should not be an operator console.
2. In Release 5.0 and later systems, the system recognizes the MLX-5D
as a 5-button telephone. In releases prior to 5.0, the system recognizes
the MLX-5D as an MLX-10D. For this reason, when programming the
telephone, be careful not to assign lines or features to buttons that do
not actually exist on the telephone. When an MLX-5D telephone
replaces an MLX-10 or MLX-10D telephone, all line and feature
buttons must
first
be removed from the extension by centralized
telephone programming, so that “phantom buttons” do not exist for the
new telephone. Programming instructions come with the equipment.
MLX-5D telephones can be wall-mounted, but wall-mounting makes the display
hard to read.

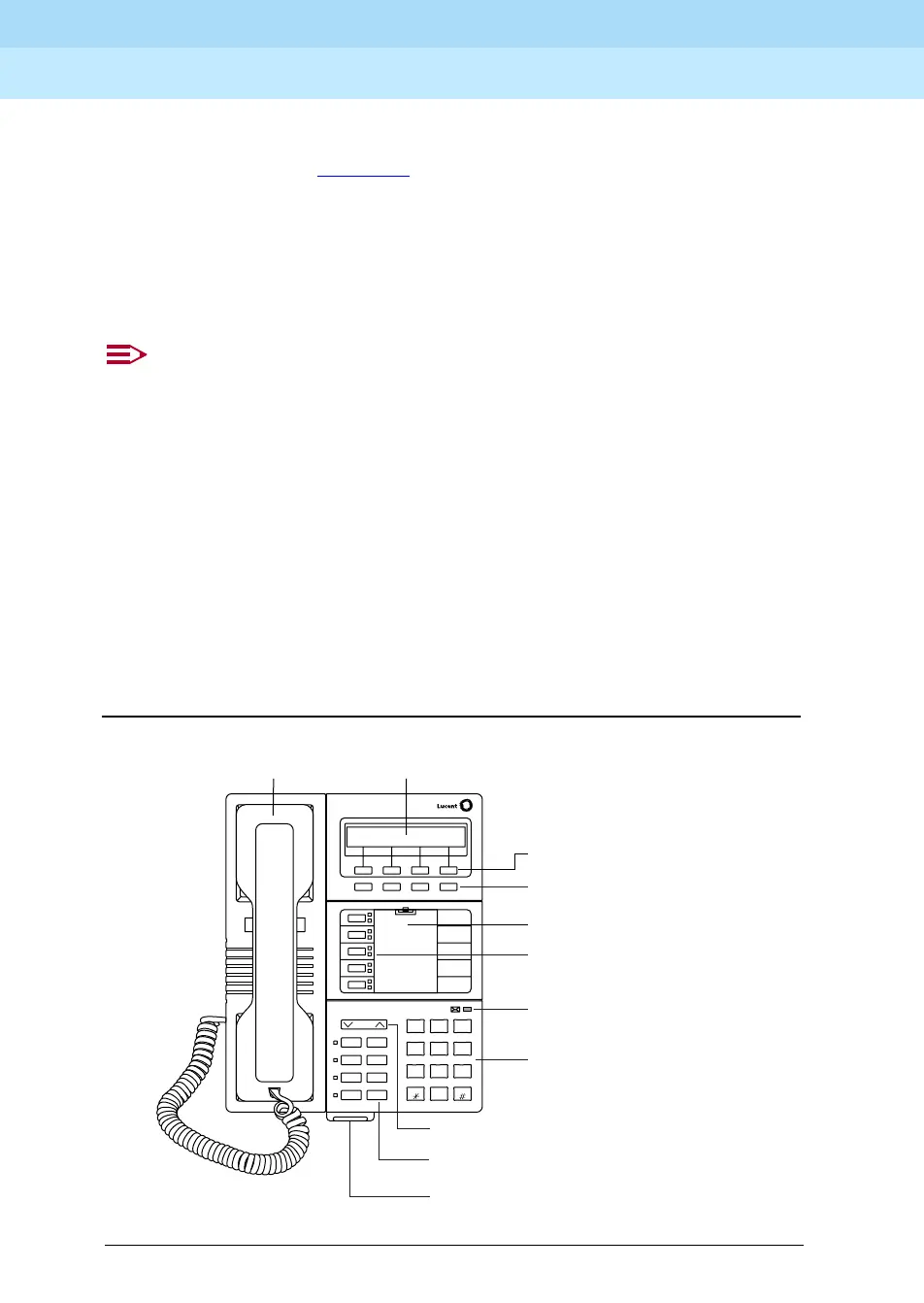

Figure 3–9. MLX-5D Telephone
MLX-5D
Feature Transfer
HFAI
Home Menu Inspct More
Conf
Mute Drop
Speaker Hold
Volume
12
ABC
3
DEF
5
JKL
4
GHI
6
MNO
8
TUV
5
JKL
7
PQRS
9
WXYZ
Button Labeling Card
Handset
Volume Control
Fixed-Feature Buttons (8)
User Cards and Tray
Message Light
Dialpad
Line Buttons (5)
Fixed-
Display Buttons (4)
Display Screen
Unlabeled Display Buttons (4)
