mmo2006-005-013_a

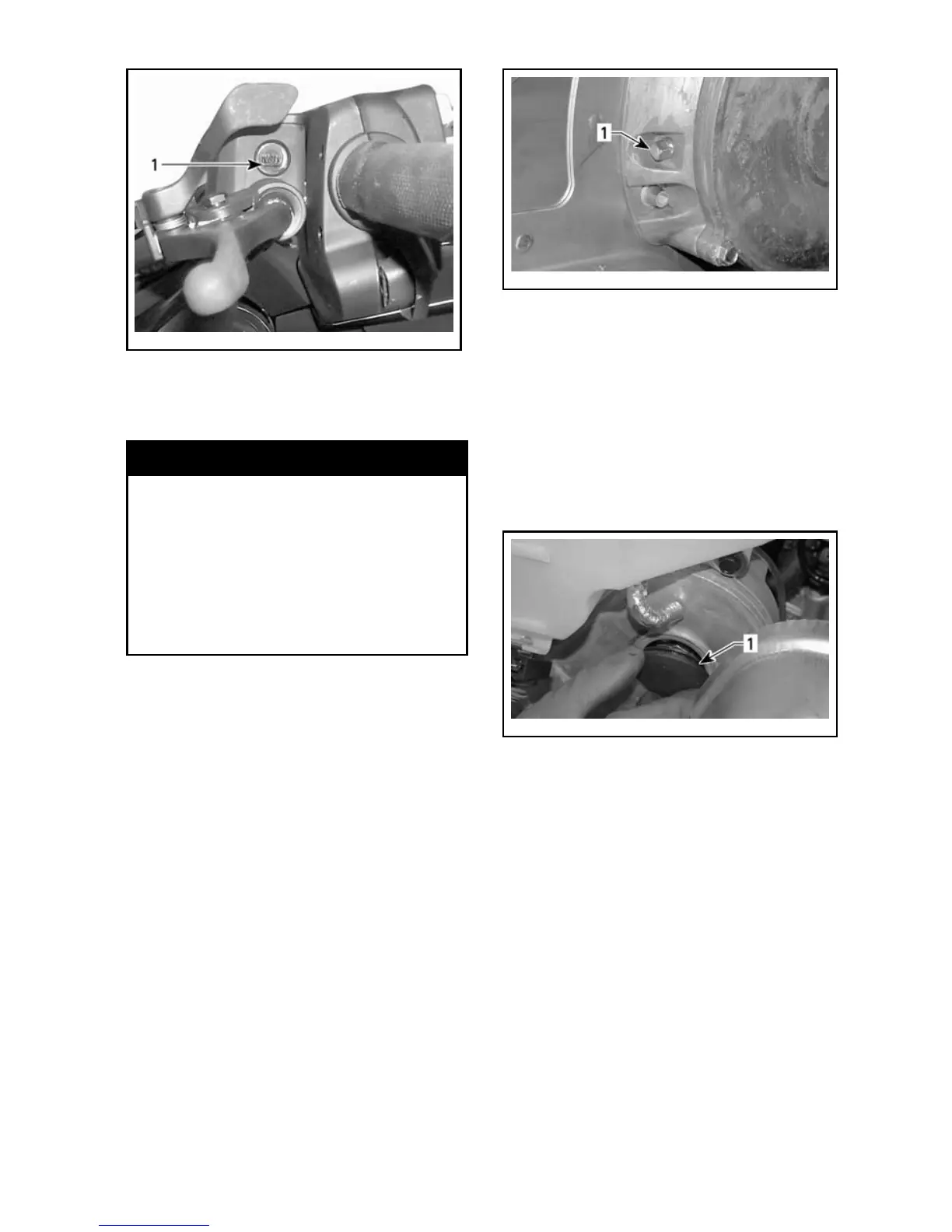

TYPICAL — BRAKE FLUID RESERVOIR
1. Minimum
Brake C ondition
WARNING
The brake mechanism on your
snowmobile is an essential safety
device. Keep this mechanism in
proper working condition. Above
all, do not operate the snowmo-
bile without an effective brake
system. Periodic ally verify the
condition/wear of the brake pads.
Brake Adjustment
No adjustment is provided for hy-
draulic brake. See an authorized LYNX
dealer if any problems.
Chaincase O il
Recomm ended O il
Use XP-S synthetic chaincas e oil
(P/N 413 803 300).
CAUTION: Use only the recom-
mended type oil when servicing.
Do not mix s ynthetic oil with other
types of oil.
Oil Level Verification
With the vehicle on a level surface,
check the oil level by removing the
magnetic check plug on the left side
of chaincase. Oil level m ust be equal
with the lower edge.
mmr2008-047-002_a
1. M agnetic check plug
NOTE: It is normal to find metallic par-
ticles stuck to magnetic check plug. If
bigger pieces of metal are found, re-
move the chaincase cover and inspect
the chaincase parts.
Remo ve metal p articles fr om magnet-
ic check plug.
To add oil, remove the filler cap on
chaincase cover.
mmr2008-047-003_a
1. Filler cap
Pour recommended oil in chaincase by
the f iller hole until oil comes out by
the magnetic check plug hole. Rein-
stall magnetic check plug and torque
to 6 N•m
Drive Chain Tension
SeeanauthorizedLYNX.
_____________________
103
