Lynx RaveTM RE 600 E-TEC User Manual

593SS and 800R Engines
Manual Start

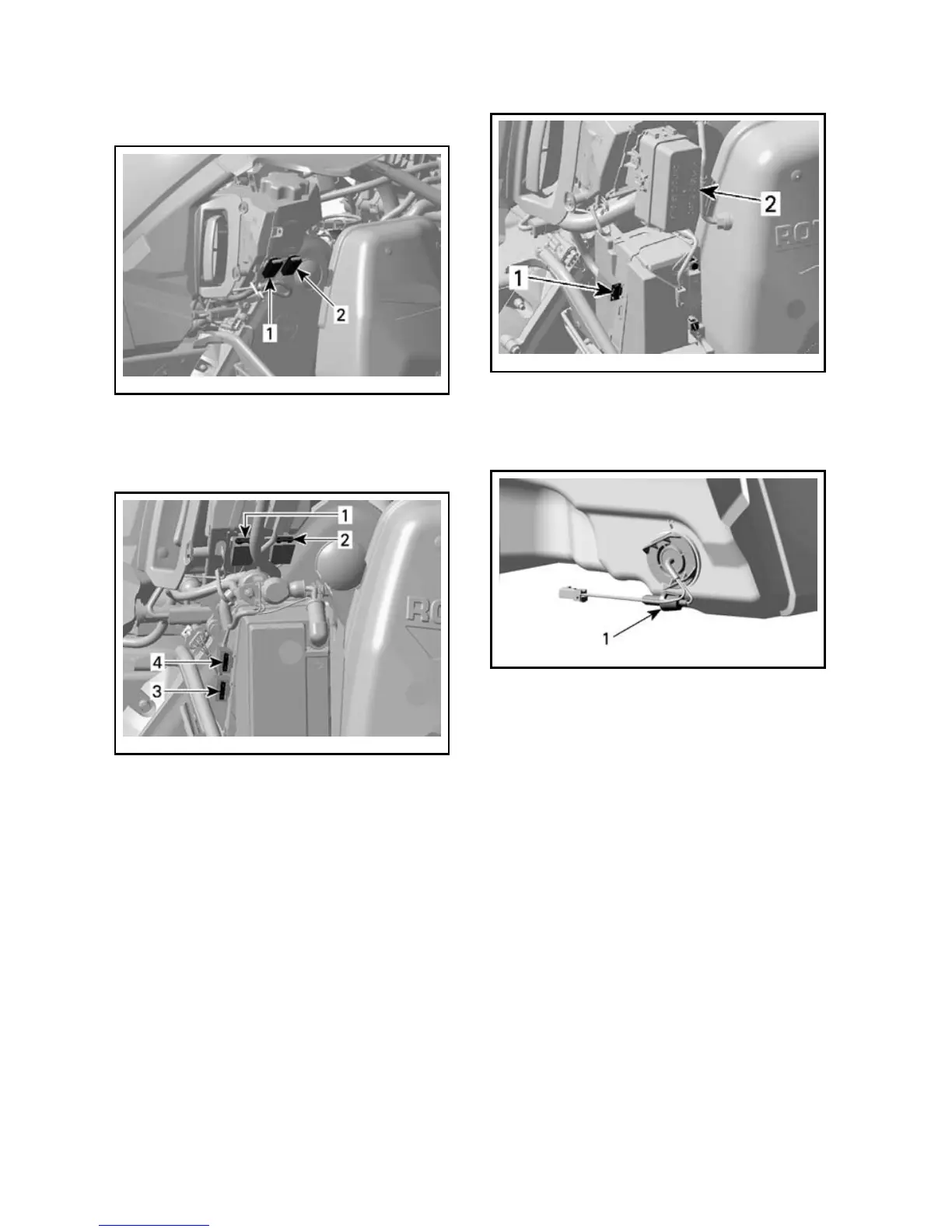

mmo2007-009-017_a
RH SIDE OF ENGI NE COMPARTMENT
1. 15 A headlight fuse (RED/ORANGE wire)
2. 15 A accessories fuse (RED /YE LLO W wire)
Electric Start
mmo2008-003-033_b
RH SIDE OF ENGI NE COMPARTMENT
1. 15 A headlight fuse (RED/ORANGE wire)
2. 15 A accessories fuse (RED /YE LLO W wire)
3. 30 A charging syste m
4. 5 A ECM (Engine Control Module)
Charging System
mmo2008-003-035_a
RH SIDE OF ENGINE COMPARTMENT
1. 30 A fuse
2. Fuse box
Electric Fuel Level Sender
mmo2007-009-016_b
BEHIND AIR INTAKE SILENCER
1. 0.25 A fuse
118
