SUSPENSION ADJUSTMENTS
Snowmobile handling and comfort de-
pend upon suspension adjustments.
Choice of suspension adjustments
vary with carrying load, driver's
weight, personal preference, riding
speed and field condition.
NOTE: Some adjustments may not ap-
ply to your snowmobile. Use special
keys in tool kit.
REAR SUSPENSION TYPE
TYPE
MODELS
PPS 121 PPS 144
Rave 600RS; Rave
600; Rave 600 HO
E-TEC and Rave 800
R Power Tek
X
—
Xtrim 600 H O
E-TEC and 800 R
Power Tek
—
X
Adjustable suspension
Snowmobile handling and comfort de-
pend upon suspension adjustments.
Choice of suspension adjustments
vary with carrying load, driver’s
weight, personal preference, riding
speed and field condition.
NOTE: Some adjustments may not ap-
ply to your snowmobile. Use special
keys in tool kit (SOME MODELS).
1. Rear springs - comfort and ride heigh t
2. Center spring - handling
3. Stopper strap – sn owmob ile we ight transfer
4. Front sh ock - handling
Suspension adjustments

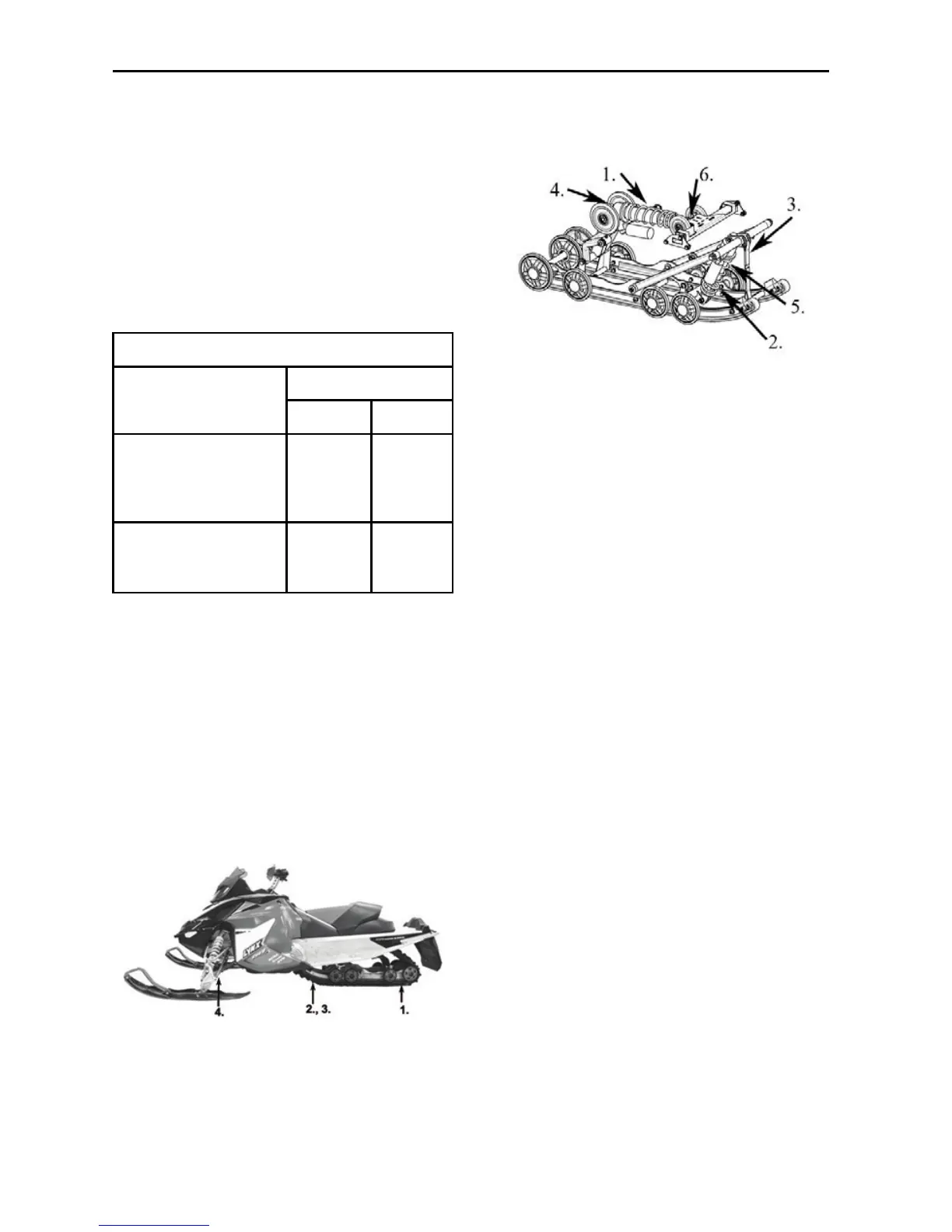

TYPICAL — PPS
1. Rear springs adjustable for comfort and ride
height
2. Ce nter spring for steering beh avior
3. S topper strap for snowmo bile weight
transfer
4. Rear shock motion ratio — Damping
strength
5. Ce nter shock motion ratio — Damping
strength (not seen on picture)
6. Rebound strength adjustment
Following are guidelines to fine-tune
suspension.
The best way to set up the suspen-
sion, is to s tart from factory set tings,
then customize each adjustment one
at a time. It m ay be necessary to
readjust center spring after adjusting
front springs for instance. Test run
the snowmobile under the same con-
ditions; trail, speed, snow, d river riding
position, etc. Change one adjustment
and retest. Proceed methodically un-
til you are satisfied.
74
