ELECTRICAL SYSTEM
Recommended Spark Plug
CAUTION: Use only spark plug NGK
PZFR6F. This spark plug is special-
ly design for the 600 HO E-TEC en-
gine. It must be installed to a spe-
cific torque, refer to SPARK PLUG
INSTALLAT ION for proper installa-
tion procedure. Do not attempt to
adjust gap on this plug.
Spark Plug Removal/
Installation
Removal
Open LH side pane l.
Remove belt guard, refer to BELT
GUARD REMOVAL.
Unplug spark plug cables.

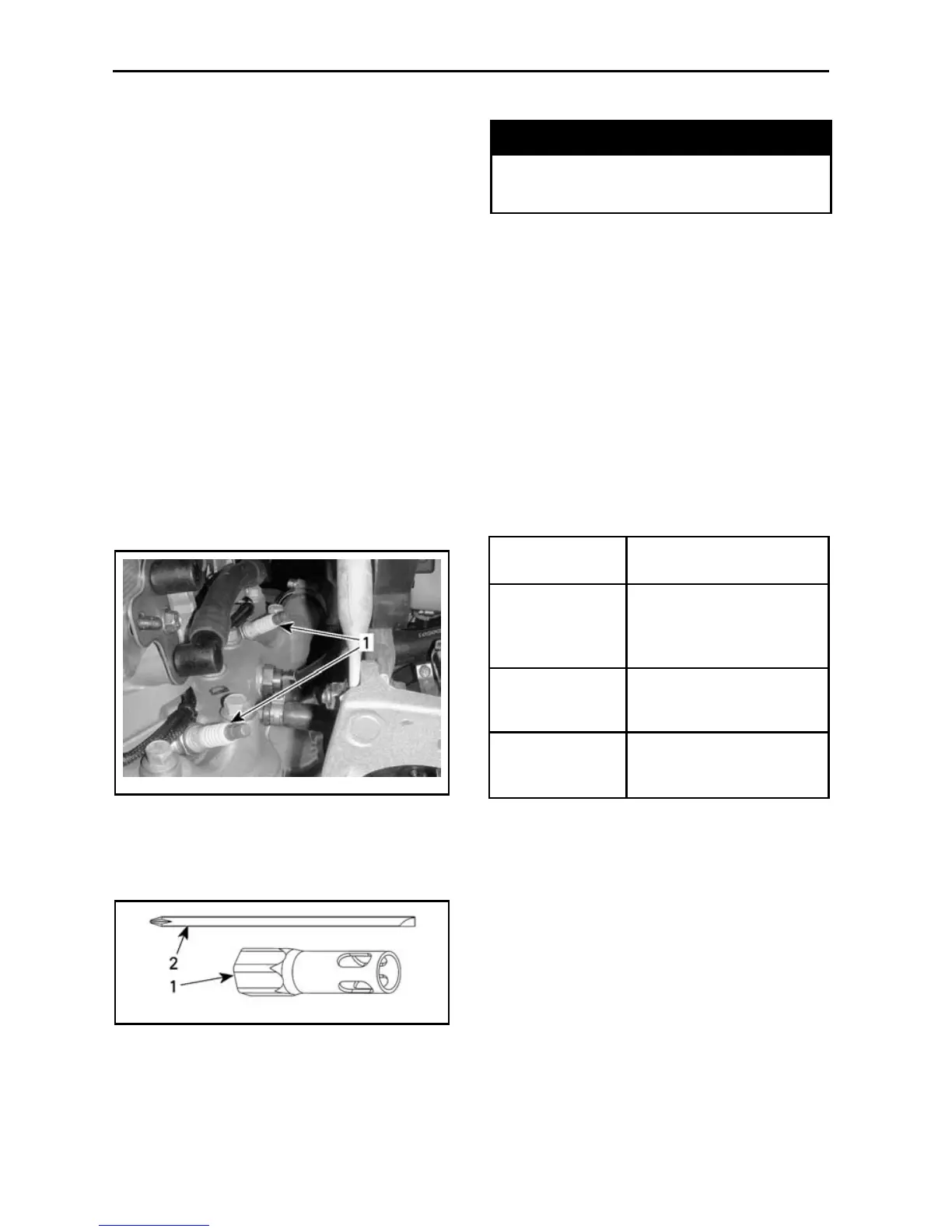

mmo2008-008-027_a
LH SIDE OF ENGINE COMPARTMENT
1. Spark plugs
Using tools from tool kit, unscrew
spark plugs one turn.
mmo2008-008-009
1. 16 mm socket
2. Screwdriver rod
Clean spark plugs a nd cylinder heads
with pressurized air if possible .
WARNING
Always wear safety goggles when
using pressurized air.
Unscrew spark plugs completely then
remove them.
Installation
Prior to installation, make sure that
contact surfaces of cylinder hea d and
spark plugs are free of grime.
Using a feeler gauge, verify spark plug
gap.
Replace spark plug if not w ithin spec-
ifications.
CAUTION: Do not attempt to adjust
gap on these plugs.
Model/spark
plug type
Spark plug gap
Rave 600/ NGK
BR 10 ECS
Not adjustable.
0.75+ 0.05
mm/- 0.05 mm
Rave 600 HO
E-TEC/NGK
PZFR6F
Not adjustable.
0.8 + 0 mm/- 0.1 mm
Rave
800R/NGK BR
9ECS
Not adjustable.
0.75 + 0.05 mm/-
0.05 mm
Scre w s park plugs into cylinder hea d
by hand until it bottoms.
Tighten plugs using tools from tool kit
or with a torque w rench and a proper
socket.
Using Tools from Tool Kit
Use the 16 mm socket and the s crew -
driver rod from the vehicle tool k it.
