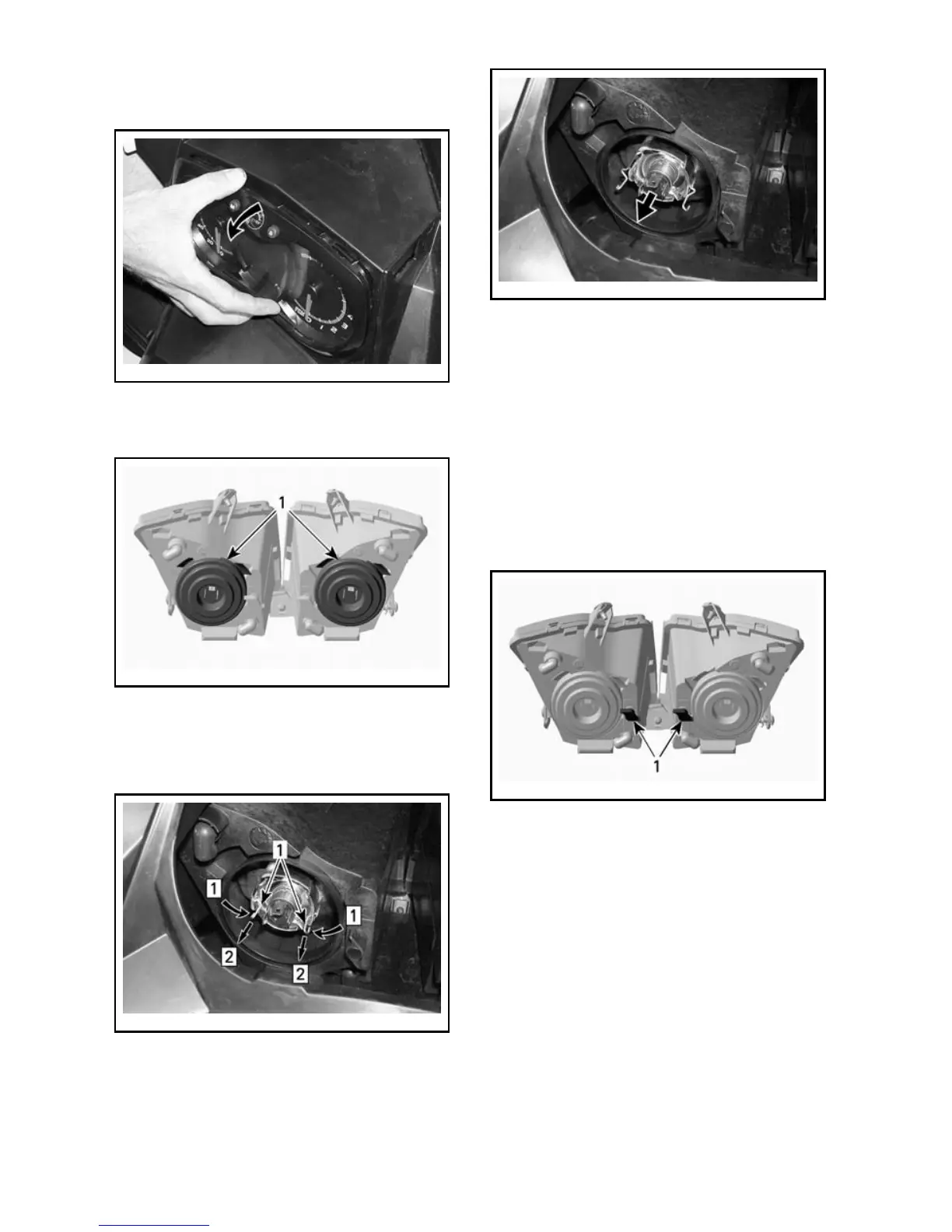

Gently pull on multifunction gauge and
set aside.
mmo2007-009-062_a
Unplug burnt bulb connector. Re-
move the rubber boot.
mmo2007-009-022_a
1. Rubber boot
Press and pull both sides of the spin-
dle at the same time to release it from
bulb support.
mmo2007-009-063_a
Step 1: Push both sides
Step 2: Pull to release
1. Spindle
Pull bulb and replace. P roperly rein -
stall parts.
mmo2007-009-064_a
PULL BULB AND REPLACE
Taillight
If taillight bulb is bu rn t, expos e th e
bulb by removing the red plastic
lens. To remove, unscrew the 2 lens
screws.
Headlamp Beam Aiming
Remove multifunction gauge, refer to
BULB REPLACEMENT. Turn knob to
adjust beam height.
mmo2007-009-023_a
TYPICAL
1. K nob
120
