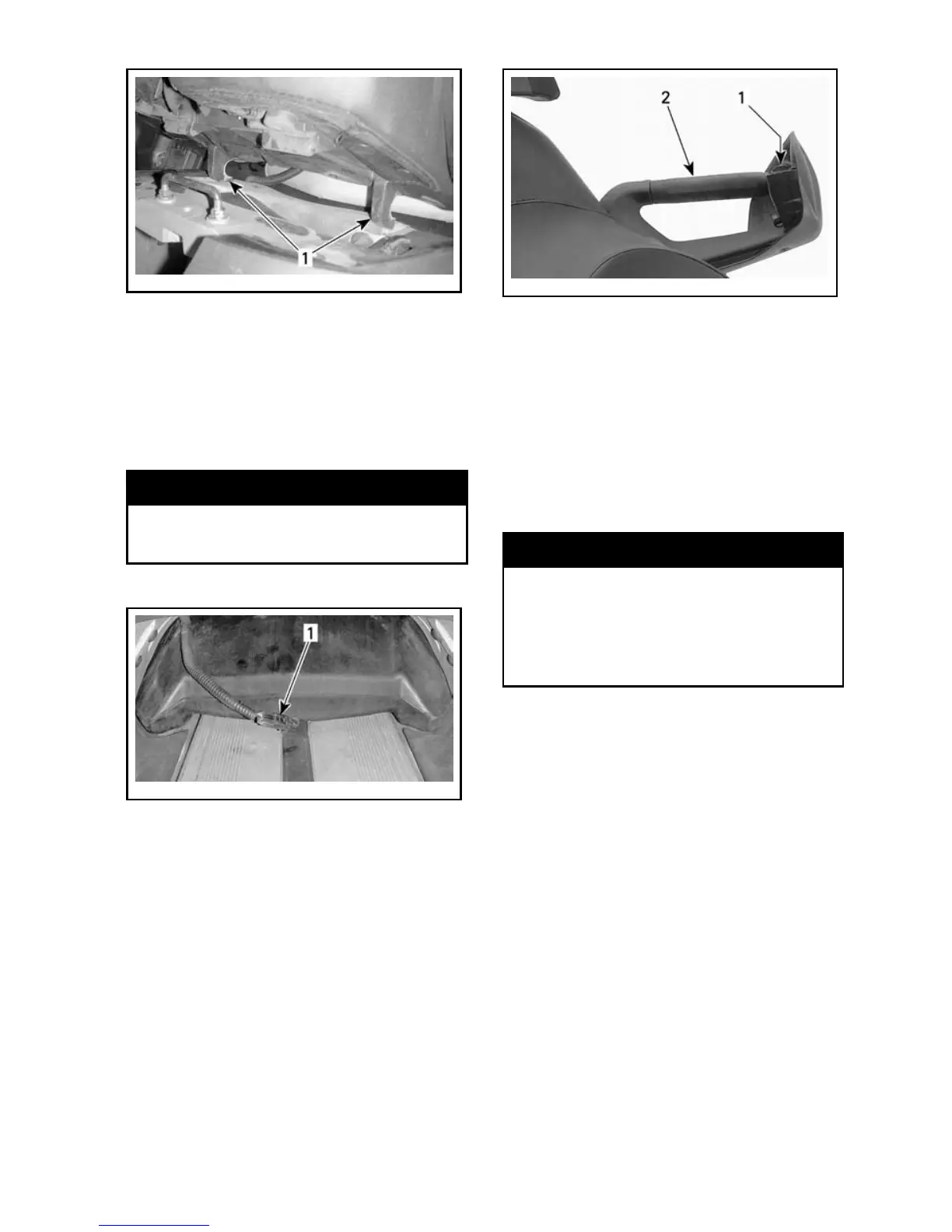

mmo2008-003-027_a
1. Re taining device
When seat rests in its position, firmly
push seat down to latch.
NOTE: A distin ctive sn ap will b e felt.
Double check that the seat is secure
by giving it a tug to confirm proper
latching.
WARNING
Make sure seat is securely latched
before riding.
Connect 1+1 seat connector.
mmo2008-003-028_a
1. Co nnector
30) Rear Passenger
Heating Grip Switch
Xtrim RE-X models only
(as option)
Three-position switch. Select the de-
sired position to keep rear passenger's
hands at a comfortable temperature.
mmo2008-003-022_a
PASSENGER LH GRAB HANDLE
1. Switch
2. LH grab handle
31) R ear Grab Handles
Xtrim models only
Rear grab handles provides a grip for
the passenger.
32) R ear Rack
WARNING
All obj ects in rear rack must be
properly latched. Do not carry
any breakable objects. Excessive
weight in rack may reduce steer-
ing ability.
CAUTION: Always readjust suspen-
sion according to the load. The
capa city of this rac k is limited, t he
MAXIMUM cargo load is 15.8 Kg
(35lb). Rideatverylowspeed
when loaded. Avoid speed over
bumps.
33) 12-Volt Power Outlet
Xtrim modesl Only
A 12-volt electric appliance may be
connected to that jack connector.
Electric current is supplied whenever
engine is running.
34) C-Type Hitch
Xtrim modesl only.
CAUTION: Refer to decal on vehicle
for towing weight capacities.
