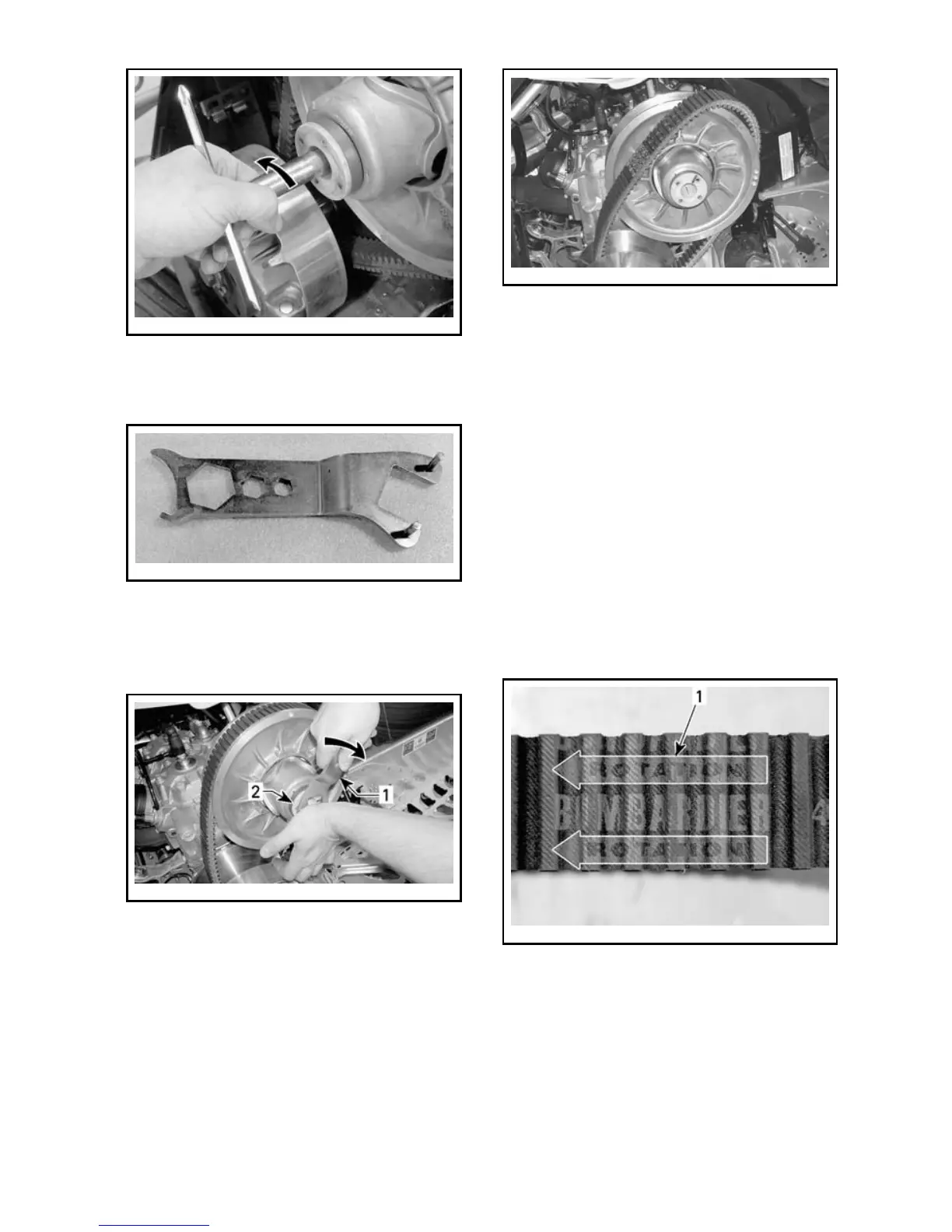

mmo2008-003-044_a
TURN TOOL COUNTERCLOCKWISE
Then, to open the driven pulley use the
following tool from tool kit.
mmo2008-003-042
OPENING TOOL
Comp letely open the driven pulley by
turning the opening tool clockwise.
Turn tool clockwise until it bottoms.
mmr2008-042-001_a
1. O pen ing tool
2. Adjustment ring
To rem ove the drive belt, slip the belt
over the top of driven pulley.
mmr2008-042-002
Remove drive belt from drive pulley.
Install and adjust drive
belt, refe r to DRIVE BELT
INSTALLATION/ADJUSTMENT.
Drive Belt Installation/
Adjustment
NOTE: The drive belt height must be
checked each time a drive belt is in -
stalled and should be rechecked after
50 km (30 miles).
The maximum drive belt life span is
obtaine d w hen the arrow on the driv e
belt is directed toward the front of the
vehicle. This will ensure that correct
direction of rotation is respected.
mmo2008-003-045_a
1. Arrow pointing the front of vehicle
NOTE: If your drive belt was broken
while riding, y ou will need to open
the driven pulley sheaves first before
trying to in stall a n e w belt. Refer to
DRIVE BELT REMOVAL for pro cedure.
Install drive belt.
_____________________
105
