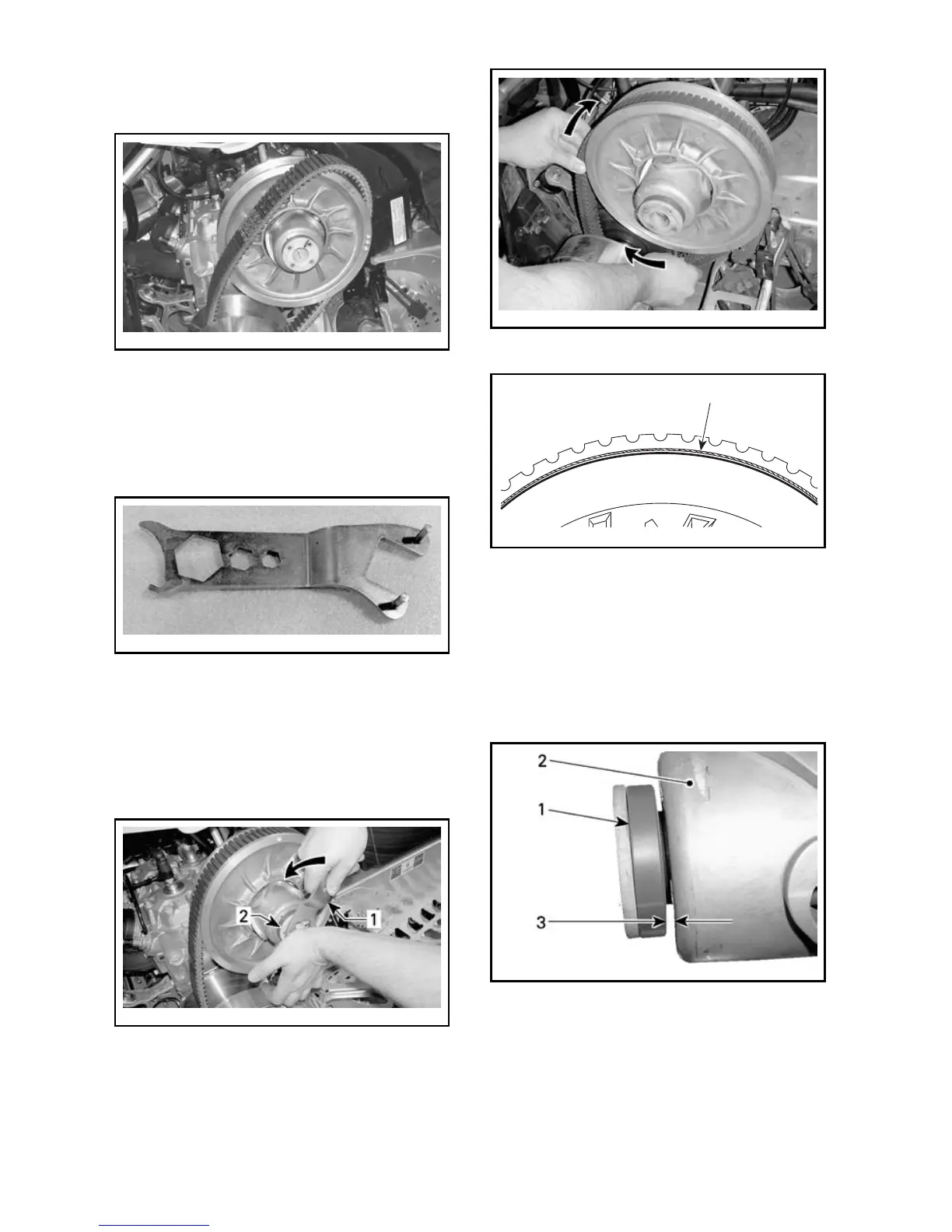

Set drive belt in drive pulley then in
driven pulley starting at the bottom.
mmr2008-042-002
When drive belt is in position, driven
pulley sheaves needs to be adjusted
to obtain proper drive belt adjustment.
To adjust driven pulley sheaves, use
the following tool from tool kit.
mmo2008-003-042
OPENING TOO L
Turn adjustment ring counterclock-
wise (± 1 turn) then, manually rotate
drive belt to position it properly inside
pulley sheaves. Repeat this proce-
dure until proper belt adjustment is
obtained.
mmr2008-042-001_b
1. Open ing tool
2. Adjustment ring
mmo2008-003-046_a
MANUALLY ROTATE DRIVE BELT
1
mmo2008-003-078_a
PROPER ADJUSTMENT
1. D rive belt cord flush with pulley edge
NOTE: If correct adjustment is
unattainable, contact an authorized
LYNX dealer.
When th e drive belt is properly adjust-
ed, ensure that the swivel ring rest
agains t the driven pulley cam.
mmo2008-003-076_a
INCORRECT POSITION
1. S wivel ring
2. Driven pulley cam
3. Notincontactwithdrivenpulley
106
