Mode/Set Button
All other RE-X models.
This button can be used instead of
the two buttons on top of the analog/
digital g au ge to facilitate gau ge adjust-
ments.
– When pushed upward, it has the
same functions as the M ODE (M)
button.
– When pushed d ownward, it has the
same functions as the SET (S) but-
ton.

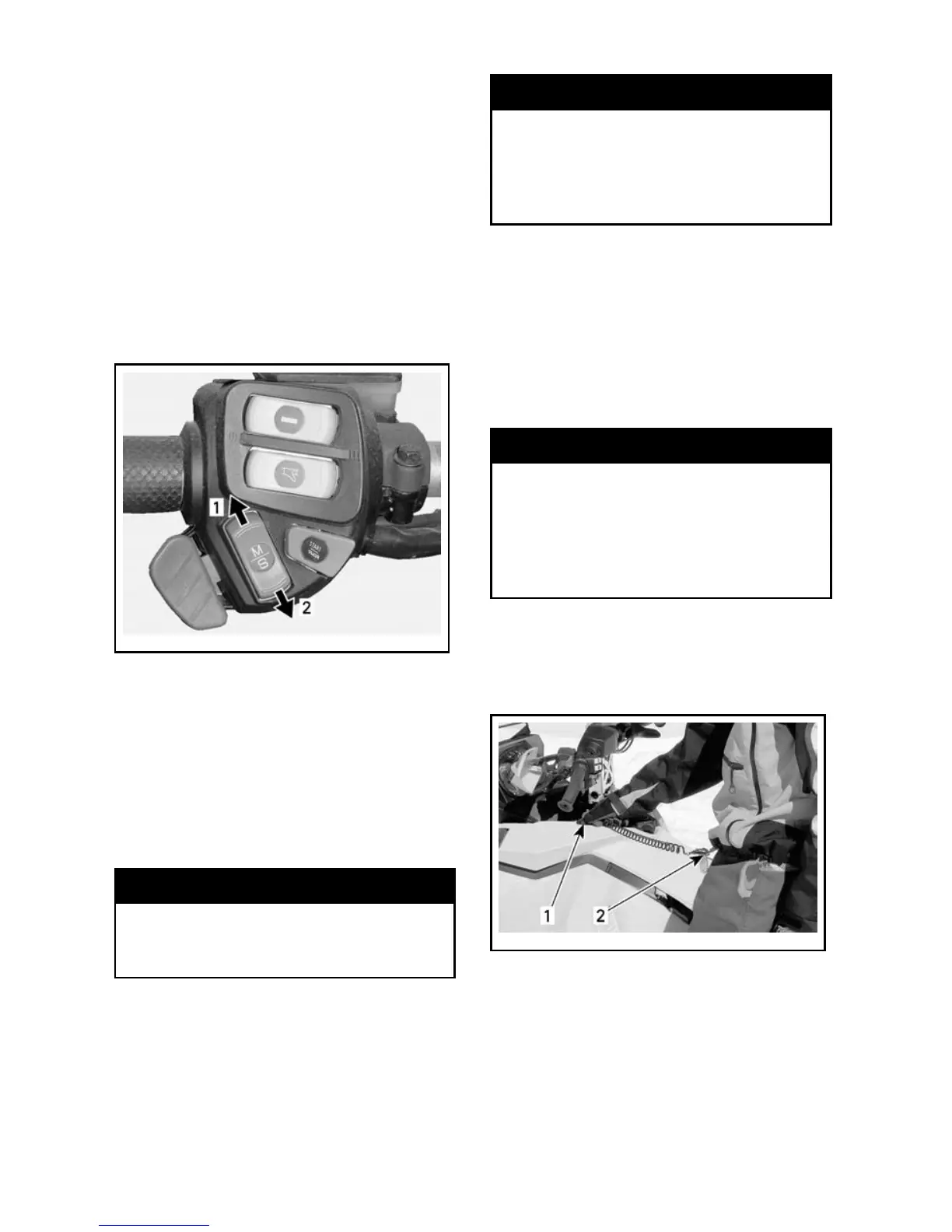

mmo2008-003-009_b
MULTIFUNCTION GAUGE
1. MODE function
2. SET function
12) Handlebar
The handlebar controls the steering of
the snowmobile. As the handlebar is
rotated to right or le ft, the skis ar e
turned right o r left to steer the snow-
mobile.
WARNING
Fast reverse while turning, could
result i n loss of sta b ility and con -
trol.
13) Holding Strap
Xtrim Models only
Holding strap provides a grip for driver
when side-h illing .
WARNING
This strap is not for towing, lifting
or other purpose than temporary
use as a grab handle during side-
hilling. Always keep at least one
hand on handlebar.
14) Tether Cut-Out Switch
General
When the tether cord c ap (DESS key)
is removed, it shuts the engine off pre-
venting snowmobile to runaway if the
operator falls off the vehicle accident-
ly.
WARNING
Always remove the tether cord cap
(DESS key) when vehicle is not in
operation in order to prevent ac-
cidental engine starting, to avoid
unauthorized use by children or
others or theft.
Operation
Attach tether cord eyelet to clothing,
then snap cap (DESS key) over post
before starting engine.
mmo2008-003-012_a
TYPICAL
1. Snap over post
2. Attach to clothing
If emergency engine shut off is re-
quired, pull tether cord cap (DESS key)
from post completely.
52
