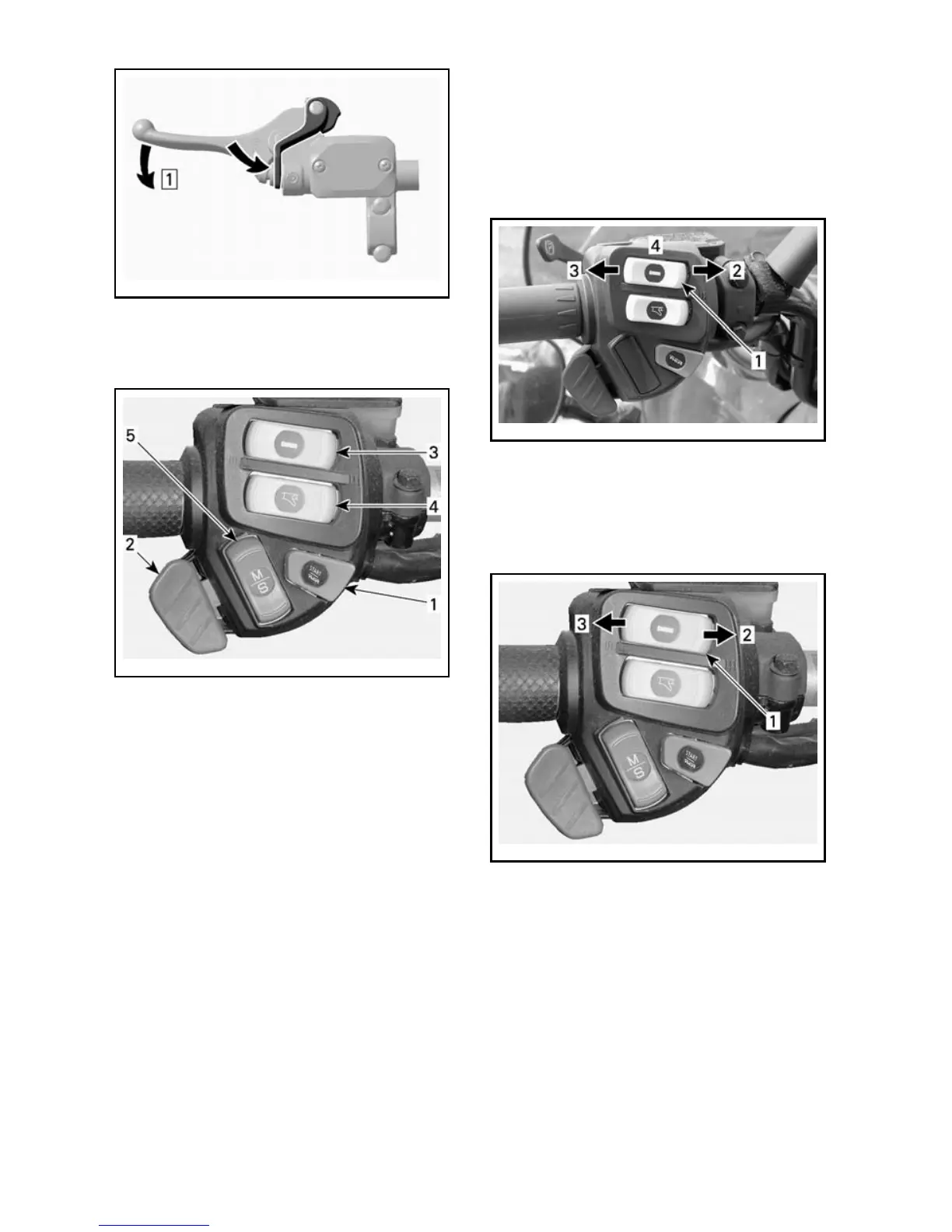

TYPICAL — RELEASE MECHANISM
Step 1: Squeeze brake lever
11) Multi-Switch Housing
mmo2008-003-009_a
TYPICAL
1. Electronic Reverse (RER) button
2. He adlamp dimmer sw itch
3. Heating grips
4. He ating throttle lever
5. Mode/set button
Electronic Reverse (RER™)
Button
When pressed, it allow s selec tion
the elec tron ic reverse, refer to SHIFT-
ING IN REVERSE in OPERAT ING IN-
STRUCTION S section for procedure.
Headlamp Dimmer Switch
When pressed, it allows selection o f
headlamp HI or LOW beam. Lights
are automatically ON whenever the
engine is running.
Heating G rips Switch
Select the desired position to keep
your hands at a comfortable tempera-
ture.
Rave 600 only.
mmo2007-003-003_b
TYPICAL
1. Heatinggripswitch
2. Hot
3. Warm
4. Off
All other RE-X models
mmo2008-003-009_c
1. Heatinggripswitch
2. Warmer
3. Co lder
On the above mentioned models,
grips heating intensity will be dis-
played via the multifunctio n displa y
Heating grips will be in OFF position
when there are no bars left in the dis-
play.
