Lynx RaveTM RE 600 E-TEC User Manual

6) Gauge MODE (M)
Button
Multifunction Analog/Digital
Gauge Only
Buttonusetonavigateingaugemulti-
function display.
NOTE: MODE (M) button on the multi-
switch housing has the same func-
tionsandcanalsobeused.
7) Gauge SET (S) Button
Button use to navigate, adjust or reset
gauge multifunction display.
NOTE: SET (S) button on the multi-
switch housing has the same func-
tionsandcanalsobeused.
8) Throttle Lever
Designed to be thumb activated.
When squeezed, it increases the en-
gine speed and engages the transmis-
sion. When released, engine speed
returns automatically to idle.

WARNING
Test the throttle lever operation
each time before starting the en -
gine. The lever must return to its
original position once released.
Otherwise, do not start engine.
9) Brake Lever
When squeezed, the brake is applied.
When re leased, it automatically re-
turns to its original p o sition. Bra kin g
effect is proportional to the pressure
appliedontheleverandtothetypeof
terrain and its snow coverage.
10) P arking Brake Lever
Parking brake should be used whenev-
er snowmobile is parked.

WARNING
Make sure parking brake is fully
disengaged before operating the
snowmobile. When you ride the
vehicle, brake pads that are caused
to drag by a continuous pressure
onthelevermaycausedamageto
the brake system and c ause loss of
brakin g c apacity and/ or fire.
To Engage Mechanism
Squeeze brake lever and maintain
while pulling locking lever with a fin-
ger. When b ra ke lever is held at
halfway the parking brake should be
fully applied .
CAUTION: Parking b rake position
can vary depending on brake pads
wear. Ensure when the parking
brake is applied that the vehicle
stays securely in place.
NOTE: Locking lever can be adjusted
in two different positions.

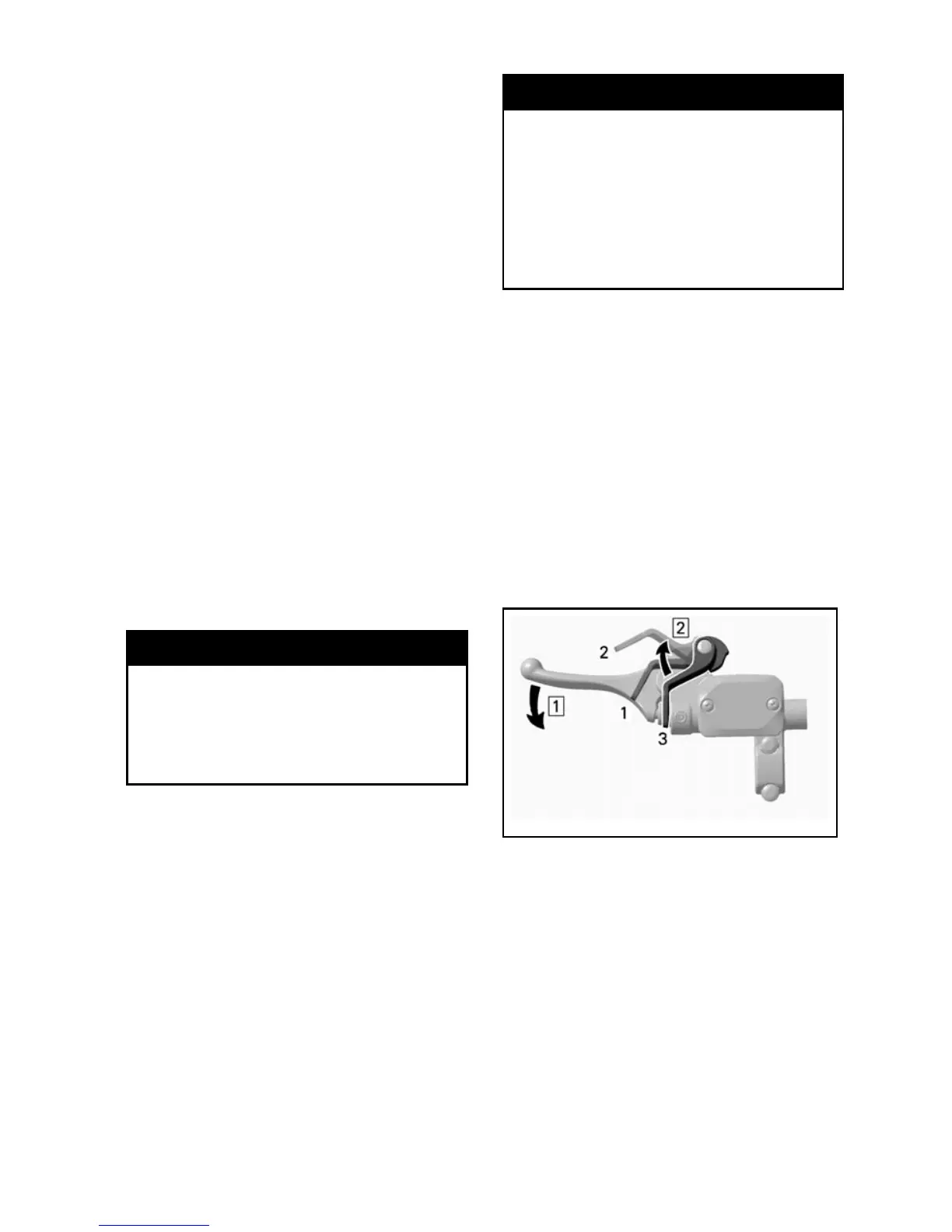

mmo2007-009-037_a
TYPICAL — ENGAGE MECHANISM
Step 1: Squeeze and maintain brake lever
Step 2: Ad just locking lever
1. Position 1
2. Position 2
3. OFF
To Release Mechanism
Squeeze brake lever. Locking lever
will automatically retur n to its origi-
nal position. Alw ays release parking
brake before riding.
_____________________
49
