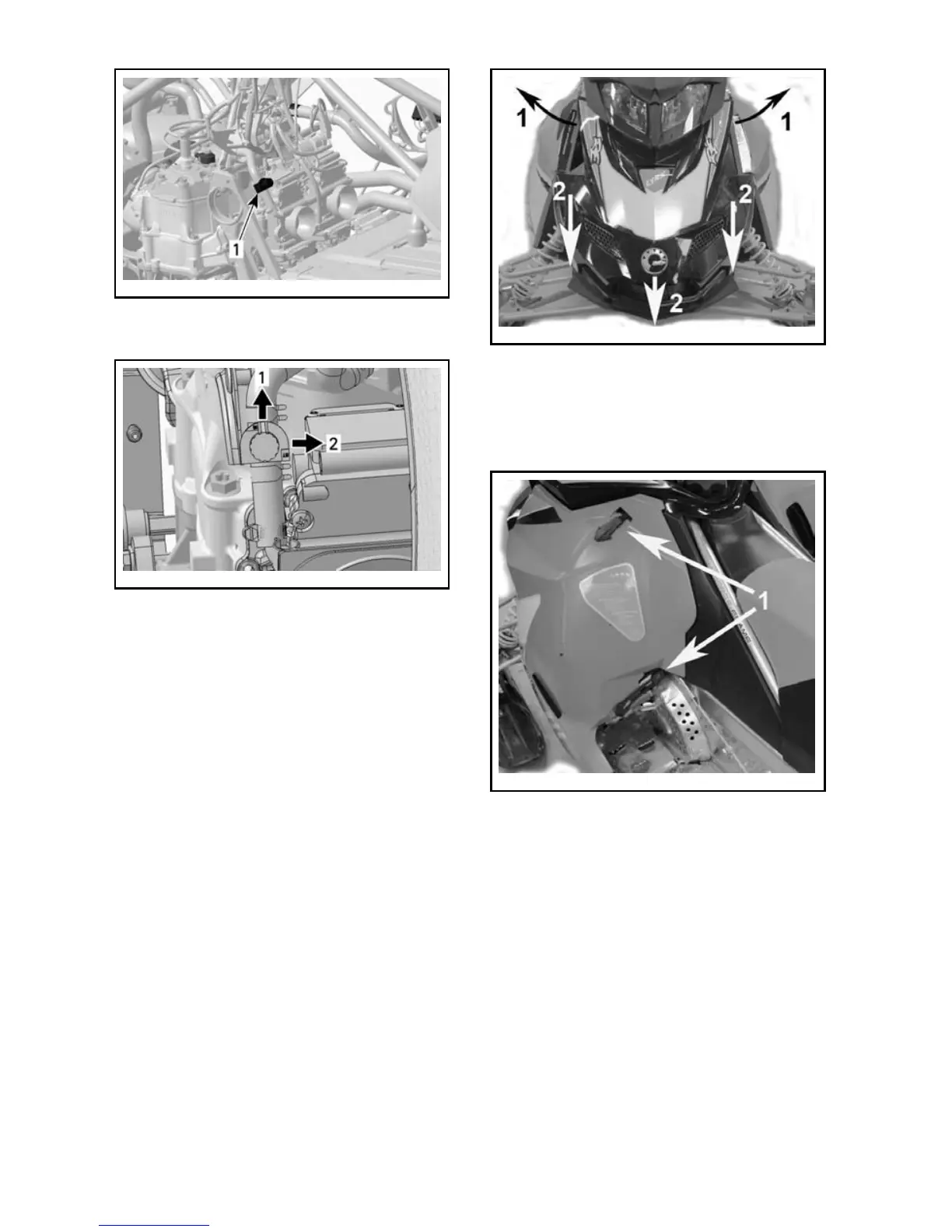

TYPICAL — REMOVE BELT GUARD
1. Carburetor valve
mmo2007-009-039_a
1. ON position
2. OFF position
CAUTION: When operating the
snowmobile above 5°C (41°F),
move the carburetor heating valve
to the OFF position.
20) Hood and Side Panels
Hood
To open hood, release hood retaining
pins then slide hood towards the front
of the vehicle.
Hood
Step 1: Release retaining pins
Step 2: Slide hood towards the front
Side Panels
To open a side panel, stretch and un-
hook the latches.
Side panels
TYPICAL
1. Latches
21) Fuses
The electrical system is protected with
fuses, refer to MA IN TENANCE for de-
tails.
The fuse holders are located in the en-
gine compartment.
CAUTION: Do not use a higher rat-
ed fuse as this can cause severe
damage to electrical components
and/or be a potential fire.
