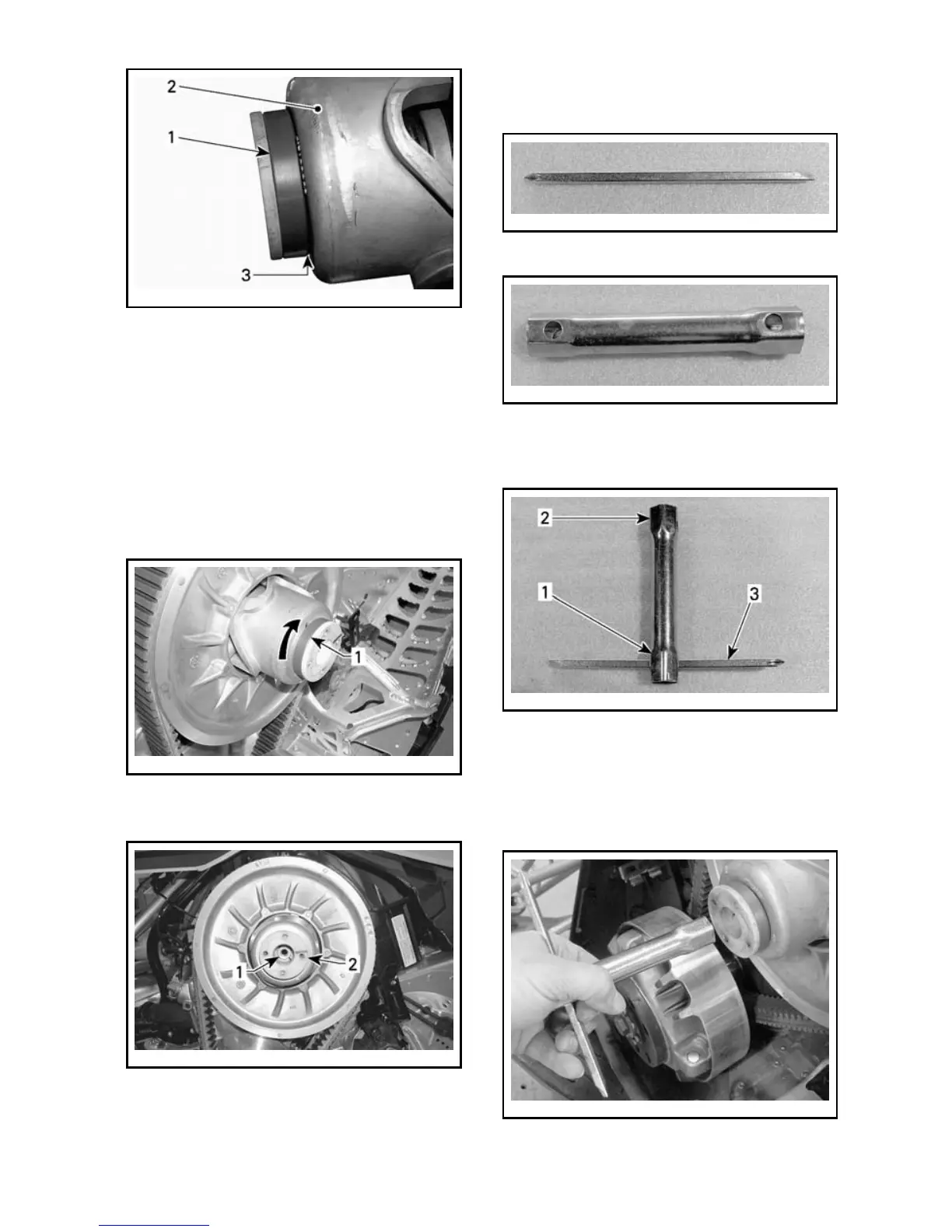

PROPER POSITION
1. S wivel ring
2. Driven pulley cam
3. In contact with driven pulley
If not, turn adjustment ring clockwise
to lean th e swivel ring against the driv-
en pulley cam.
CAUTION: Overtightening swivel
ring will modify drive belt adjust-
ment and reduce drive belt life
span.
mmr2008-042-006_b
1. S wivel ring
Then, snug up the locking nut.
mmr2008-042-003_a
DRIVEN PULLEY
1. Locking nut
2. Adjustment ring
To snug up the locking nut, use the
following tools from tool kit.
mmo2008-003-039
SCREWDRIVER PIN
mmo2008-003-040
WRENCH SOCKET 16/18 MM
Insert the screwdriver pin into the
16 mm wrench socket.
mmo2008-003-041_a
1. 16 mm end
2. 18 mm end
3. Screwdriver pin
Insertandsetthe18mmsocketend
on the locking nut inside the adjust-
ment ring.
mmo2008-003-043
INSERT TOOL
_____________________
107
