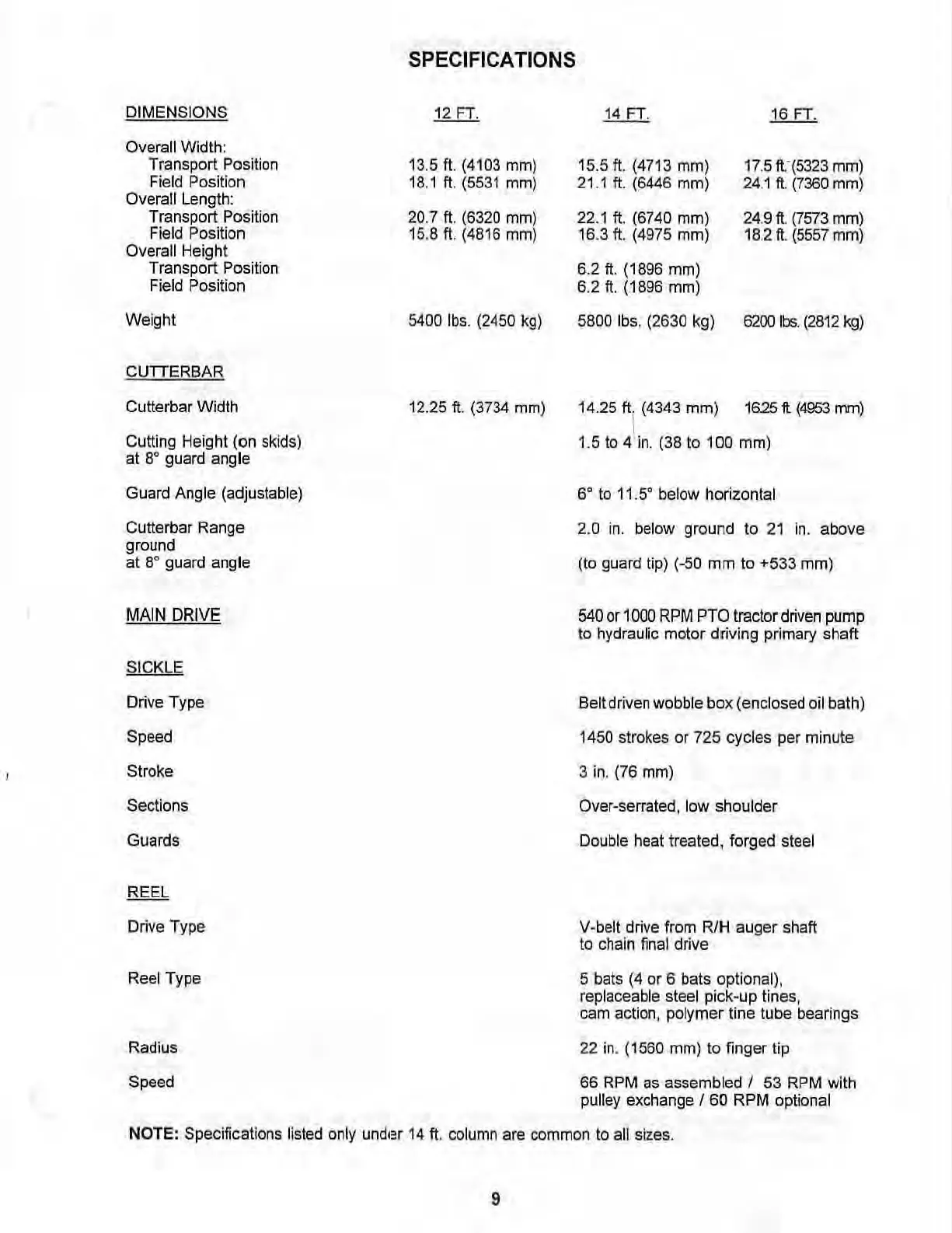

MacDon 5000 - Specifications

DIMENSIONS
Overall Width:
Transport Position
Field Position
Overall Length :
Transport Position
F ie ld Position
Overall Height
Transport Position
Field Position
Weight
CUTTERBAR
Cutterbar Width
Cutting Height (on skids)
at sa guard angle
Guard Angle (adjustable)
Cutterbar Range
ground
at 8° guard angle
MAIN DRIVE
SICKLE
Drive Type
Spee d
Stroke
Sections
Guards
REEL
Drive Typ e
Reel Type
Radius
Speed
SPECIFICATIONS
13.5 ft . (4 103 mm)
18.1
ft . (5531 mm)
20.7 ft . (6320 mm)
15.8
ft . (4816 mm)
5400 Ibs. (2450 kg)
12.25 ft. (3734 mm)
15.5
ft . (4713 mm)
21 .1 ft. (6446 mm)
22.1
ft . (6740 mm )
16.3
ft. (4975 mm)
6.2
ft. (1896 mm)
6.2
ft. (1896 mm)
5800 Ibs. (2630 kg)
17 .51("(5323 mm}
24. 1 ft . (7360 mm)
24.9
ft . (7573 mm)
18 .2 ft . (5557 mm)
6200 Rls . (2812 kg)
14.25 ft l (4343 mm ) 1625 ft (4953 mm)
1.5 to 4·in. (38 to 100 mm)
6° to 11 .5° below horizontal
2.0 in. below ground to 21 in. above
(to guard tip) (-50 mm to +533 mm)
540 or 1 000 RPM PTa tractor driven pump
to hydrauli c motor driving primary shaft
Beltdriven wobble bo x (e nclosed oil bath)
1450 strokes or 725 cycles per minute
3 in. (76 mm)
Over-serra ted , low shoulder
Double heat treated , forged steel
V-belt drive from RlH a uger shaft
to chain final drive
5 bats (4 or 6 bats optional),
replaceable steel pick~up tines,
cam action, polymer tine tube bearings
22 in . ( 15 60 mm) to finger tip
66 RPM as assembled I 53 RPM with
pulley exchange I 60 RPM optional
NOTE: Specifications listed only undl~r 14 ft . column are common to all sizes .
