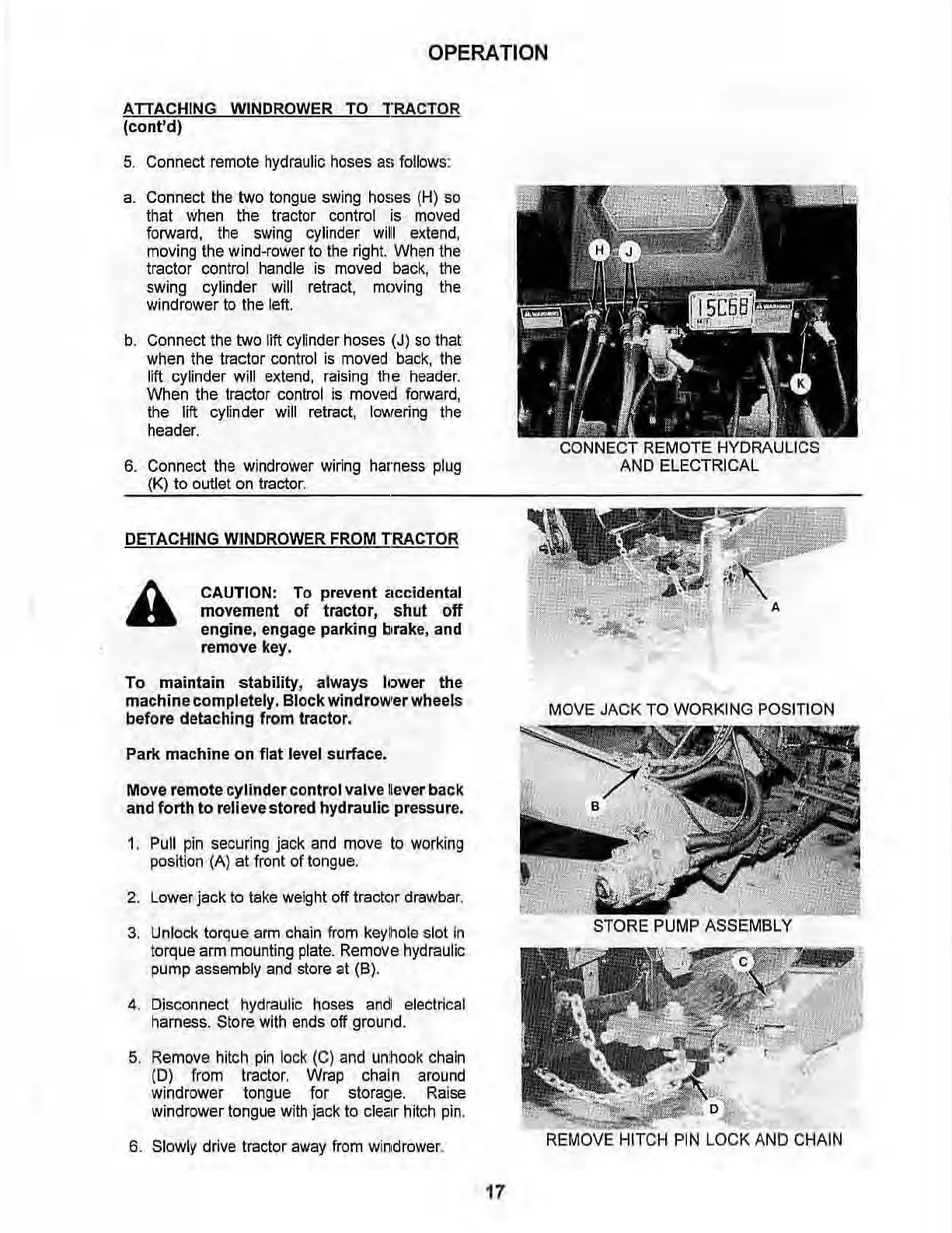

OPERATION
ATTACHING WINDROWER TO TRACTOR
(conl'd)
5.
Connect
remote
hydraulic
hoses
as
follows
:
a. Connect the two tongue swing hoses
(H)
so
that
when
the
tractor
contro
l
is
moved
forward, the swing cylinder
wil;1
extend,
moving the
wind
·
rower
to
the
right.
When
the
tractor control
handle
is
moved
back
,
the
swing cylinder
will
retract,
moving
the
windrower
to
the
left.
b. Connect the
two
lift
cyl
i
nder
hoses (J)
so
that
when the tractor control
is
moved
back,
the
lift cylinder
will
extend, raising the header.
When the tractor control
is
moved forward,
the
lift cylinder
will
retract, lowering
the
header.
6.
Connect the windrower wiring harness plug
(K)
to
outlet
on
tractor.
DETACHING WINDROWER FROM TRACTOR
A
CAUTION: To prevent clccidental
movement
of
tractor, shut
off
engine, engage parking
blrake,
and
remove key.
To maintain stability, always
hlwer the
machine completely. Block windrowerwheels
before detaching from tractor.
Park machine on flat level surface.
Move remote cylinder control valve lIever back
and
forth
to
relieve stored
hydraulic
pressure.
1. Pull
pin
securi
ng
jack
and
move to working
positi
on
(A) at front of tongue.
2.
Lower jack to take
we
ight off tractm drawbar.
3. Unlock torque arm chain from keyh
ole
slot
in
torque arm mounting plate. Remove hydraulic
pump assembly
and
store at (8).
4.
Di
sconnect hydraulic hoses
andi
electrical
hamess. Store with ends off ground.
5. Remove hitch
pin
lock
(C)
and
un
hook
cha
in
(D) from tractor. Wrap chain around
windrower tongue for stora!:le.
Ra
i
se
windrower tongue wi
th
jack
to
cle;::lr
hitch
pin
.
6.
Slowly drive tractor
away
from wind rower.
17
AND ELECTRICAL
MOVE JACK TO WORKING POSITION
