MacDon 5000 - Attaching Windrower to Tractor

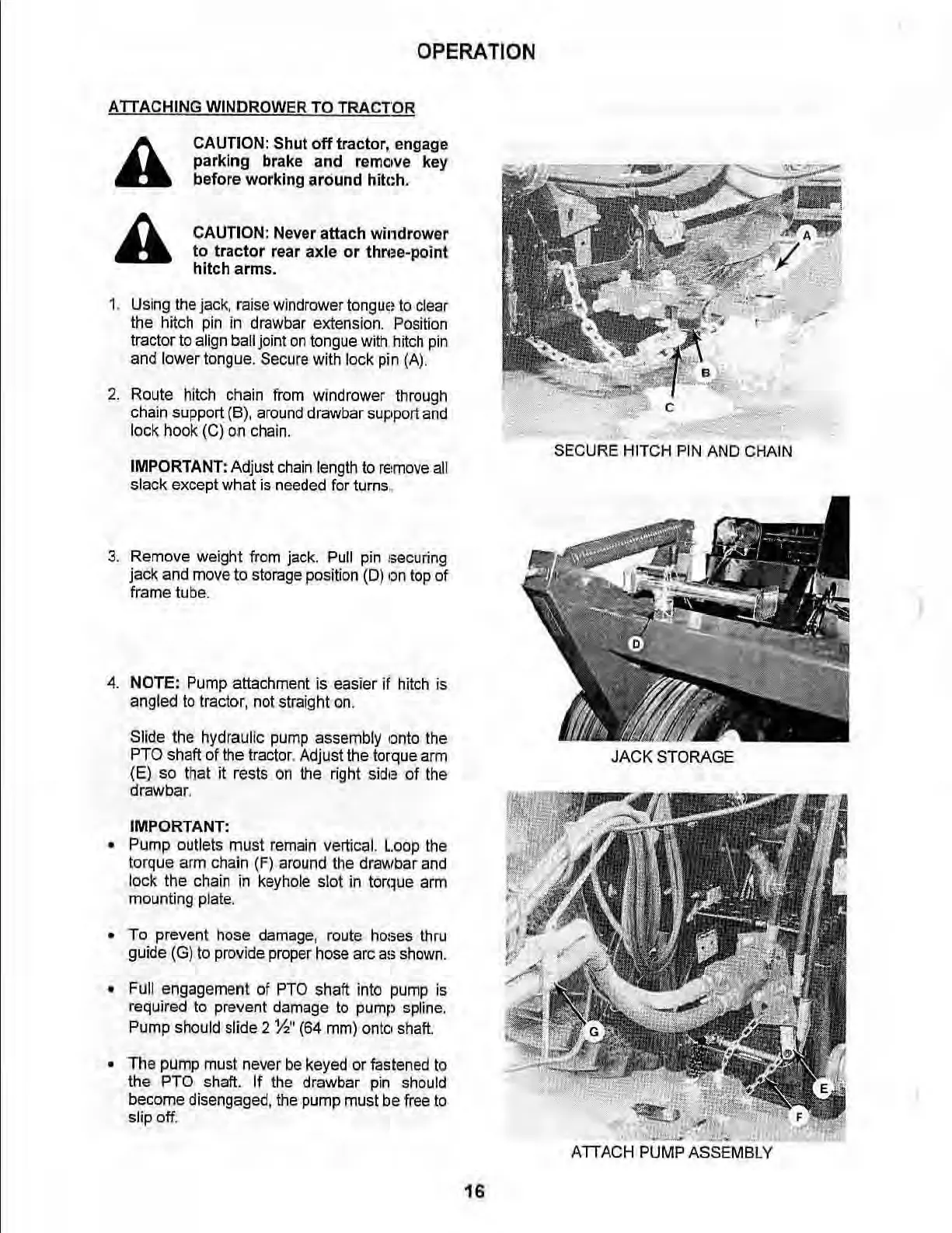

OPERATION
ATTACHING WINDROWER TO TRACTOR
A
A
CAUTION: Shut off tractor, engage
parking brake and remclve key
before working around hit<:h .
CAUTION :
Never attach windrower
to tractor rear axle or thme-point
hitch arms.
1. Usin g the jack, ra ise windrower tonguH to clear
the hitch pin in drawbar extension. Position
tractor to align balljeint on tongue with hitch pin
and lower tongue . Secure with lock pin (A) .
2. Route hitch chain from wind rower through
chain support (6), around drawbar support and
lock hook (C) on chain.
IMPORTANT: Adjust chain length to remove all
slack except what is needed for turns"
3. Remove weight
from jack. Pull pin securi ng
jack and m ove to sto rage position (D) I:ln top of
frame t
ube.
4. NOTE: Pump attachment is easier if hitch is
angled to tr actor, not straig ht on .
Slide the hydraulic pump assembly o nto the
PTO shaft of the t rac tor . Adjust the torque arm
(E) so t ha t it rests on the right si dl3 of the
drawbar.
IMPORTANT:
•
Pump outlets mu st remain vertical. l.oop th e
torque arm
cha in ( F) around the drawbar and
lock the chain in keyhole slot in torque arm
mounting pl ate .
• To prevent hose damage , route hoses thru
guide (G) to prov i de proper hose arc a$ shown .
• Full engagement of PTO shaft into pump is
required to prevent damage to pump spline.
Pump should slide 2 %" (64 mm) ontci shaft.
• Th e pump must never be keyed or fastened to
the PTO shaft. If the drawbar pin should
become disengaged, the pump must be free to
slip off.
16
SECURE HITCH PIN AND CHAIN
JACK STORAGE
ATTACH PU~IP
