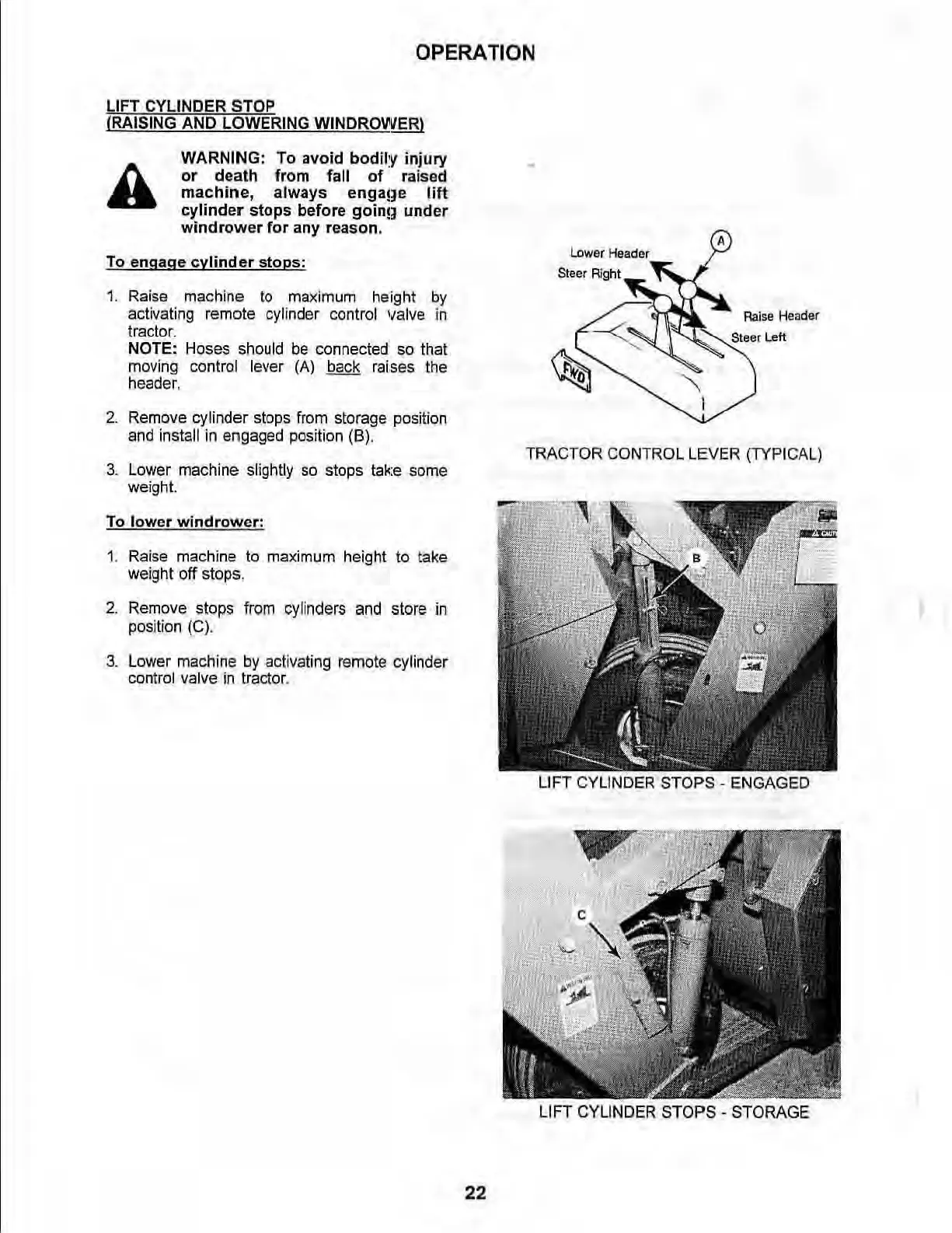

OPERATION
LIFT CYLINDER STOP
(RAISING
AND LOWERING WINDROWER)
A
WARNING: To avoid bodily injury
or death from fall of rai se d
machi ne , always enga!Je lift
cylinder stops before goin!J under
wind row er for any reason.
To engage cylinder stops:
1.
Rai se machine to m aximum heig ht by
activating remote cy li nd er control val ve in
tractor.
NOTE: Hoses sh ou ld be connected so that
mo ving co ntr ol lever (A) ~ rais es the
header,
2. Re move cy li nder stops from storage pos ition
and install in engaged position (8).
3. Lo wer machine slightly so stops take some
weigh t.
To lower wind rower:
1. Raise machine to maximum he i gh t to take
we ight off stops.
2. Re move stops from cy linders an d store in
pos it io n (C).
3. L owe r machine by act i va ti ng re mote cy li nde r
contr ol val ve in tractor.
22
lo wer Header
St eer Rig ht
A
Raise Hea der
St eer Le ft
TR AC T OR CONT ROL LE V ER (TYPI CAL)
LI FT CY LINDER STOPS - STORAGE
