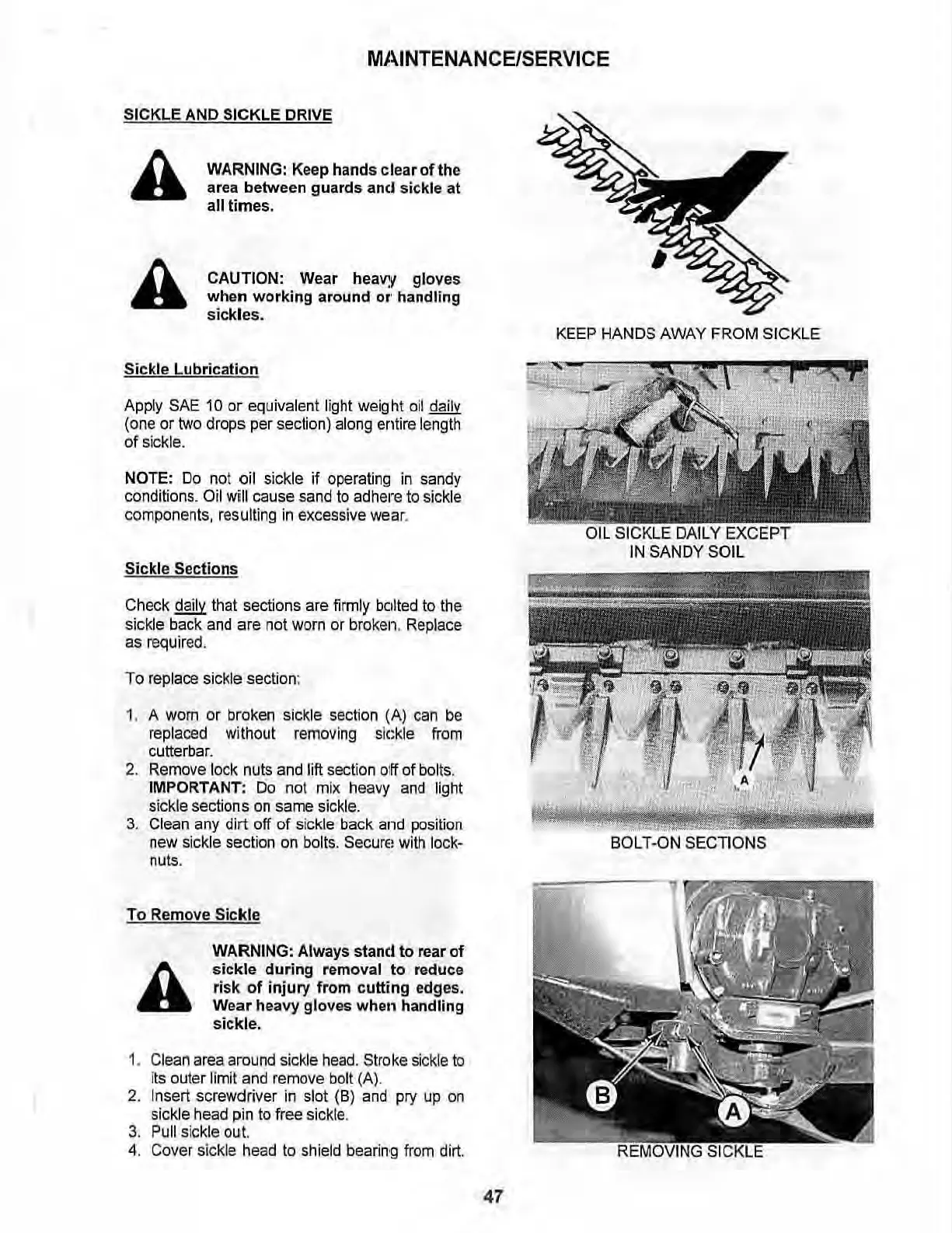

MacDon 5000 - Sickle and Sickle Drive; Sickle Lubrication; Sickle Sections; Sickle Removal

MAINTENANCE/SERVICE
SICKLE AND SICKLE DRIVE
A
A
WARNING : K ee p ha nd s cl ea r of the
area between guards and sickle at
all times .
CAUTION: Wear heavy gloves
when working around Of' handling
sickles.
Sic
kl e Lubrication
A
pp ly SA E 10 or equi va lent ligh t weig ht oil dail y
(one or two drops per sec ti on) al ong ent ir e le ng th
of sickle.
NOTE: 00 not o il sickle if operating in sandy
cond it ions . Oil will cause sand to adhere to sickle
componen t s, re sulti ng in ex cessive we ar .
Sickle Se ct ions
Ch eck daily t hat sections are firm ly bell ied to the
sick
le b ack a nd are not wo rn or broken. Rep l ace
as re qui r ed .
To rep l ace si ckle section:
1. A worn or broken si ckle section ( A) can be
rep laced without removing si Gkle fro m
Gutlerbar.
2. Re m ove l ock nuts a nd lift sec tion o' ff of bo lts.
IMPORTANT: Do no t mix hea vy and l ig ht
sickle sect io ns on sa me sic kl e.
3. Cl ea n any dirt off of sickle back a nd p os iti on
new sickle section on bo lts. Secure l wi th lock-
nu ts .
To Re mov e Sickle
A
WARNING: Always stand to rear of
s ickle during removal to reduce
risk of injury from cutting edges.
We ar heavy gloves when handling
sickle.
1. Clean area around sickle head . Stroke si ckl e to
its outer li mit a nd remove bo lt ( A) .
2. Insert screwd ri ver in slot (8 ) and pry up on
sickle head p in to free sickle.
3. P ull sickle out.
4. C ov er sick le h ead to shield bearin·g f rom dirt.
K EEP HA ND S AWAY FR OM SICK LE
I
IN SA N DY SO IL
BO LT -O N SECTIONS
47
