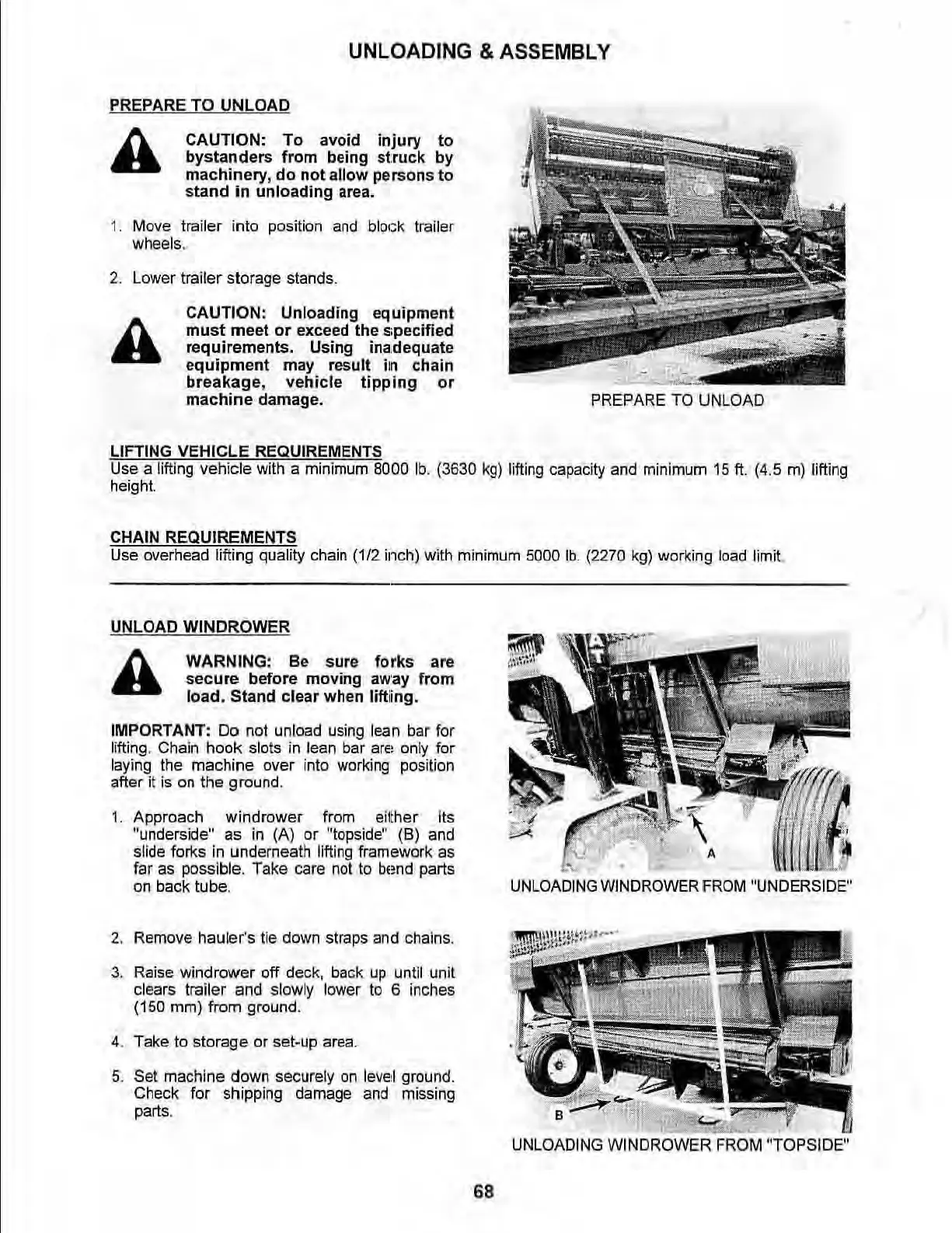

UNLOADING & ASSEMBLY
PREPARE TO UNLOAD
A
CAUTION: To avoid i
njury
to
bystanders
from being
struck
by
machinery, do
not
allow persons
to
stand
in
unloading
area.
1.
Move
trailer into position
and
block trailer
wheels.
2. Lower trailer storage stands.
A
CAUTION: Unloading equipment
must
meet
or
exceed the 5ipecified
requirements. Using ina,dequate
equipment
may result iln chain
breakage
,
vehicle
tipping
or
machine damage.
LIFTING VEHICLE REQUIREMENTS
PREPARE
TO
UN
LOAD
Use a lifting vehicle with a minimum 8000
lb
. (3630
kg)
lifti
ng
capacity and minimum 15 ft.
(4
.5
m)
lifting
height.
~~~Ii~
chain
(112
inch) with
minimum
5000
lb
.
(2270
kg)
working
load
limit.
UNLOAD WINDROWER
A
WARNING: Be sure
forks
are
secure
before moving
aW'ay
from
load. Stand clear when
lift~ng.
IMPORTANT: Do not unload using lean bar for
lifting. Chain hook
slots in lean bar
are!
o
nl
y for
laying the machine over into working
posiUon
after it
is
on the ground.
1.
Approach windrower from ei
the
r its
"underside"
as
in
(A)
or
"topside" (8) and
slide forks
in
underneath lifting framework as
far
as
possible. Take care not to
bHnd
parts
on
back tube.
2. Remove hauler's tie down straps and chains.
3. Raise wind rower off deck,
ba
ck
up
until unit
clears trailer and
slowly lower to 6 inches
(150 mm) from ground.
4. Take to stora
ge
or set-up area.
5. Set machine down securely
on
leve
~
1
ground.
Check for shipping damage and missing
parts.
UNLOADING
WINDROWER
FROM
"UNDERSIDE"
UNLOADING
WI
NDRO
W
ER
FROM
"TOPSIDE"
68
