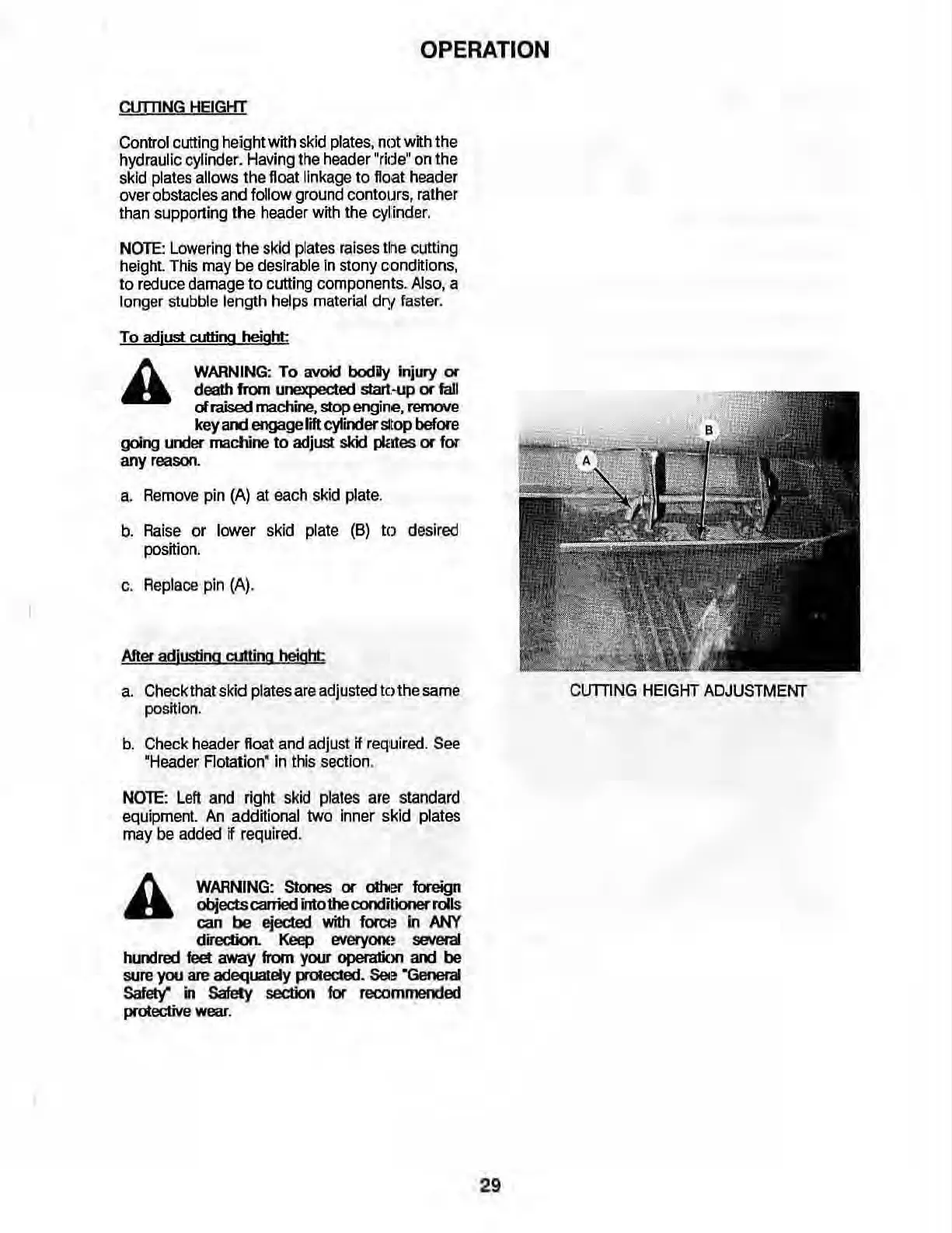

OPERATION
CUTTING
H~IGHT
Control cutting height with
skid
plates,
not with the
hydraulic cylinder.
Having
the
header
"ride"
on
the
skid
plates allows the float linkage to float header
over obstacles and follow ground contours, rather
than
supporting the header
with
the cyl
inder.
NOTE:
Lowering
the
skid
plates
raises
tine
cutting
height.
This
may
be desirable
in
stony conditions,
to reduce damage to cutting components.
Also,
a
longer stubble length helps material
dry
faster.
To adjust cutting
height
A
WARNING
: To avoid
bodly
Injury
Of
death
from unexpected start.-up
Of
fall
c:I
raised machine,
stop
engine,
renKJYe
key
and
engage
lift
cylinder
"lop
befOfe
going
under
machine
to adjust
skid
pUrtes
Of
for
any
reason
.
a.
Remove
pin
(A)
at each
skid
plate.
b.
Raise
or
lower
skid
plate
(8)
IC)
desired
position.
c.
Replace
pin
(A)
.
After adjusting
cutting
height
a.
Check
that skid plates
are
adjusted
tothe
same
position.
b.
Check
header float
and
adjust if required.
See
"Header Flotation- in this section.
NOTE:
left and right skid plates are standard
equipment.
An
additional two inner skid plates
may
be
added if required.
A
WARNING:
Stones
Of
""'"
foreign
objects~
inlotheconditionel'roIls
can
be
ejected with
100>,
In
ANY
direction.
Keep
everyonE'
'""""'"
hundred
feet
away
from yoor operalion and
be
sure
you
are adequately proIected. 500, "General
Safely"
in
Safety section for recommended
proIective
wear.
29
CUTTING
HEIGHT
ADJUSTMENT
