UNLOADING & ASSEMBLY
FEED PAN MODIFICATION FOR STONES
In conditions where stones may damafle auger or
conditioner rolls, the following modification is
recommended.
NOTE: This procedure is best d o nl~ with the
machine upright
in shipping positi()n . If the
machine
is in field positi on, raise head l;! f fully and
engage tift cylinder stops.
1. Remove feed pan rear section and cross
channe l.
2. Turn cross channel end-for-end and attach to
feed pan front secti on, with opl~n end of
cha n nel facing rearward. Secure cross channe l
to frame l ugs at both ends.
3. Install steel fingers in cross channe l with tines
on top as sho wn , Use one 3/8 NC x 11/4 in ch
carriage bolt, three flat washers and one lock
nut at each finger as shown be l ow .
NOTE : Steel fi ngers may be orderelj from your
dealer. PART NO. 47681 , Quantity 11 .

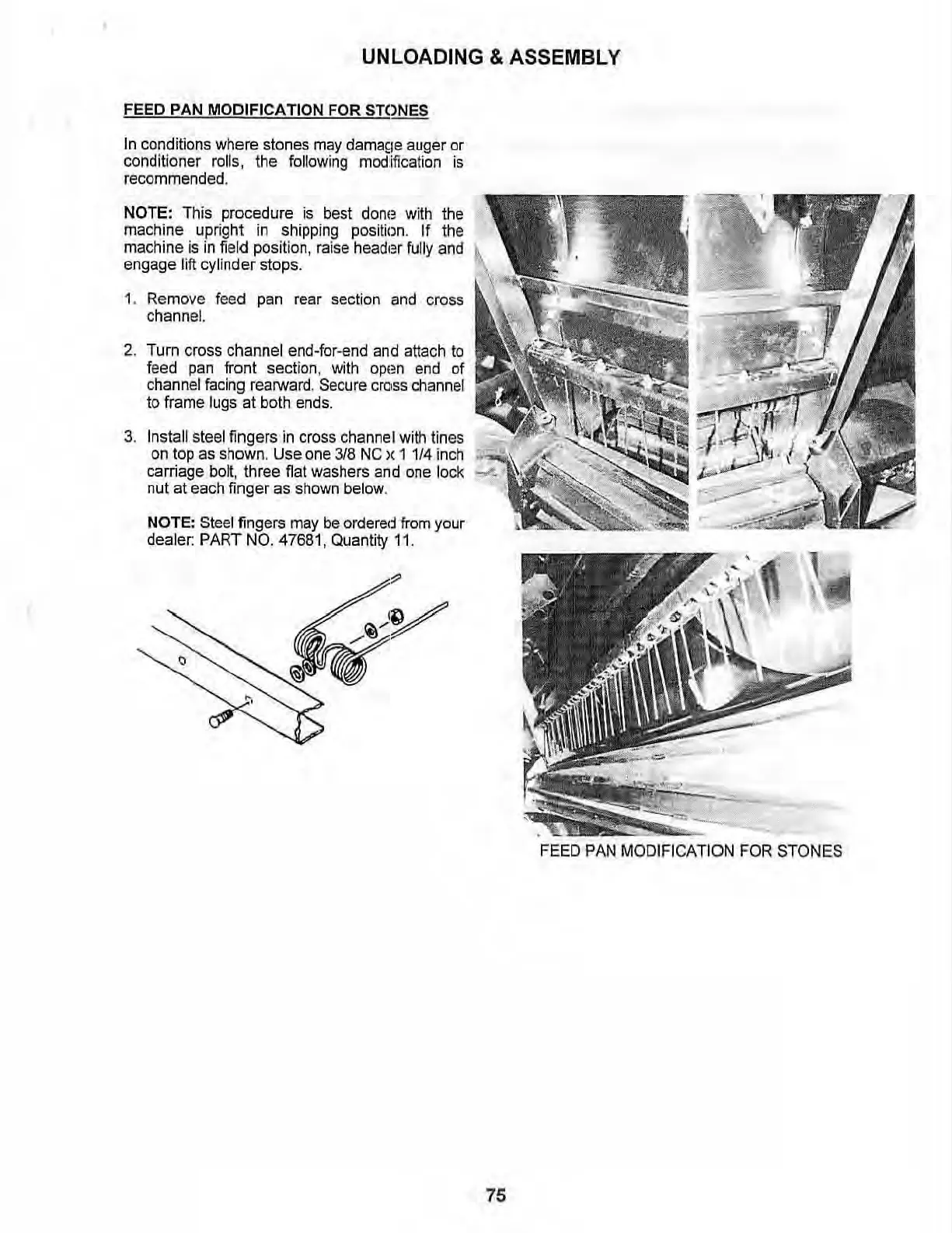

FEED PAN MODIFICATION FOR STONES
