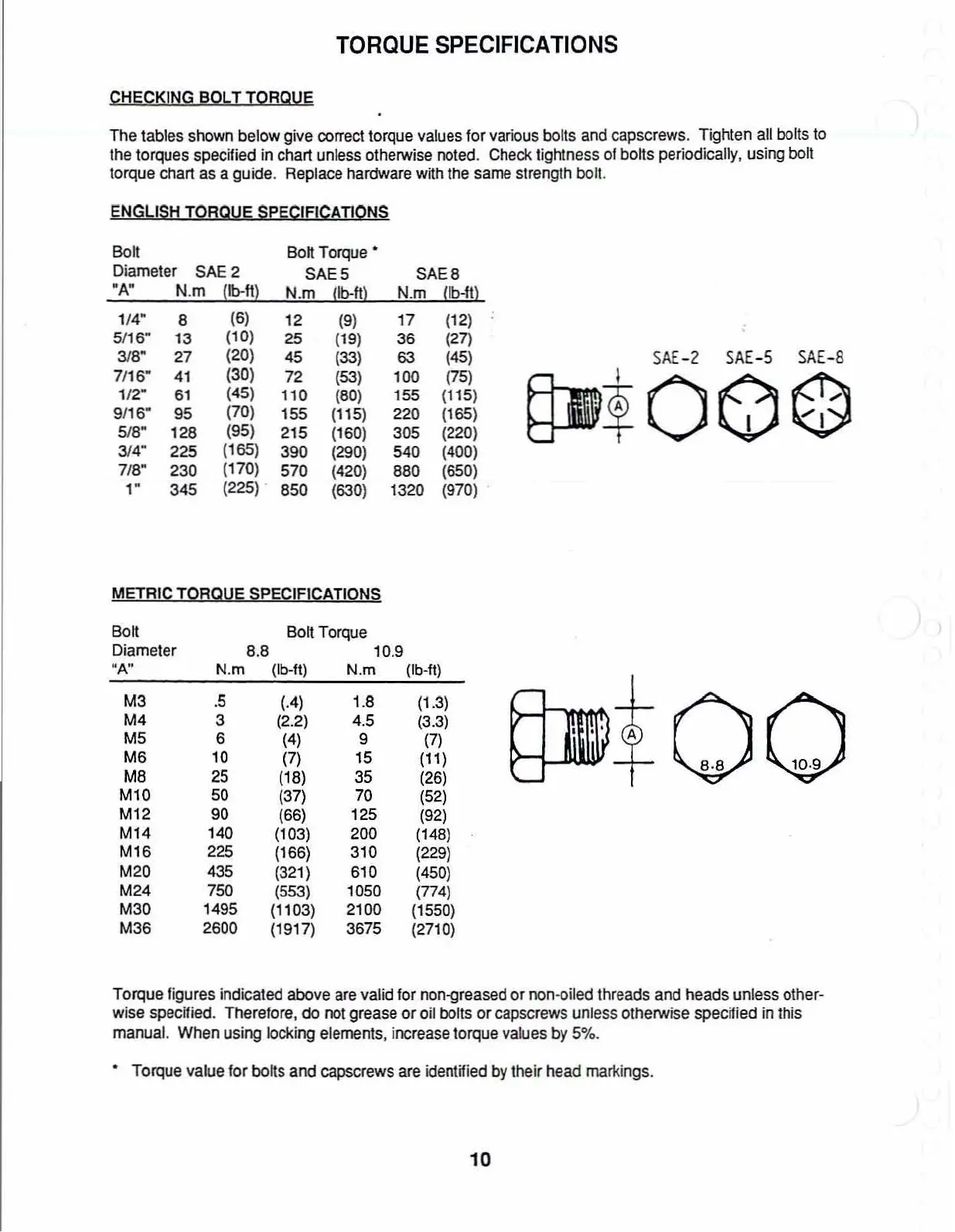

TORQUE SPECIFICATIONS
CHECKING BOLT TORQUE
The tables shown below give correct torque values for various bolls and capscrews. Tighten all bolts to
the torques specified in chart unless otherwise noted. Check tightness of bons periodically, using bolt
torque chart as a guide. Replace hard'Nare with the same strength bolt.
ENGLISH TORQUE SPECIFICATIONS
Bob
Diameter SAE 2
"A"
1/4-
5116"
318"
7116"
112"
9116"
518"
314"
7/8"
1"
N.m (lb-tt)
8 (6)
13 (10)
27 (20)
41 (30)
61 (45)
95 (70)
128 (95)
225 (165)
230 (170)
345 (225)
Bon Torque·
SAE5
N.m (Ib-fll
12 (9)
25 (19)
45
(33)
72 (53)
110 (80)
155 (115)
215
(160)
390 (290)
570 (420)
850 (630)
SAE8
N.m (Ib-fl)
17 (12)
36
(27)
63 (45)
100 (75)
155 (115)
220 (165)
305 (220)
540 (400)
880 (650)
1320 (970)
SAE-2 SAE-5 SAE·8
§lJ*OO©
METRIC TORQUE SPECIFICATIONS
Bob
Bolt Torque
Diameter
8.8 10.9
"A"
N.m (Ib-tt) N.m (Ib-fl)
M3
.5
(.4)
1.8
(1.3)
00
M4
3
(2.2)
4.5
(3.3)
M5
6
(4) 9
(7)
M6 10
(7)
15
(11)
M8
25 (18) 35
(26)
Ml0 50
(37)
70
(52)
M12
90
(66)
125
(92)
M14 140
(103) 200
(148)
M16 225
(166)
310
(229)
M20 435
(321 )
610
(450)
M24
750
(553)
1050
(n4)
M30 1495
(1103)
2100
(1550)
M36 2600
(1917)
3675
(2710)
Torque figures indicated above are valid for non-greased or non-oiled threads and heads unless other-
wise specified. Therefore. do not grease or oil bolts or capscrews unless otherwise specnied in Ihis
manual. When using locking elements, increase torque values by 5%.
• Torque value for bolts and capscrews are identified by their head markings.
10
