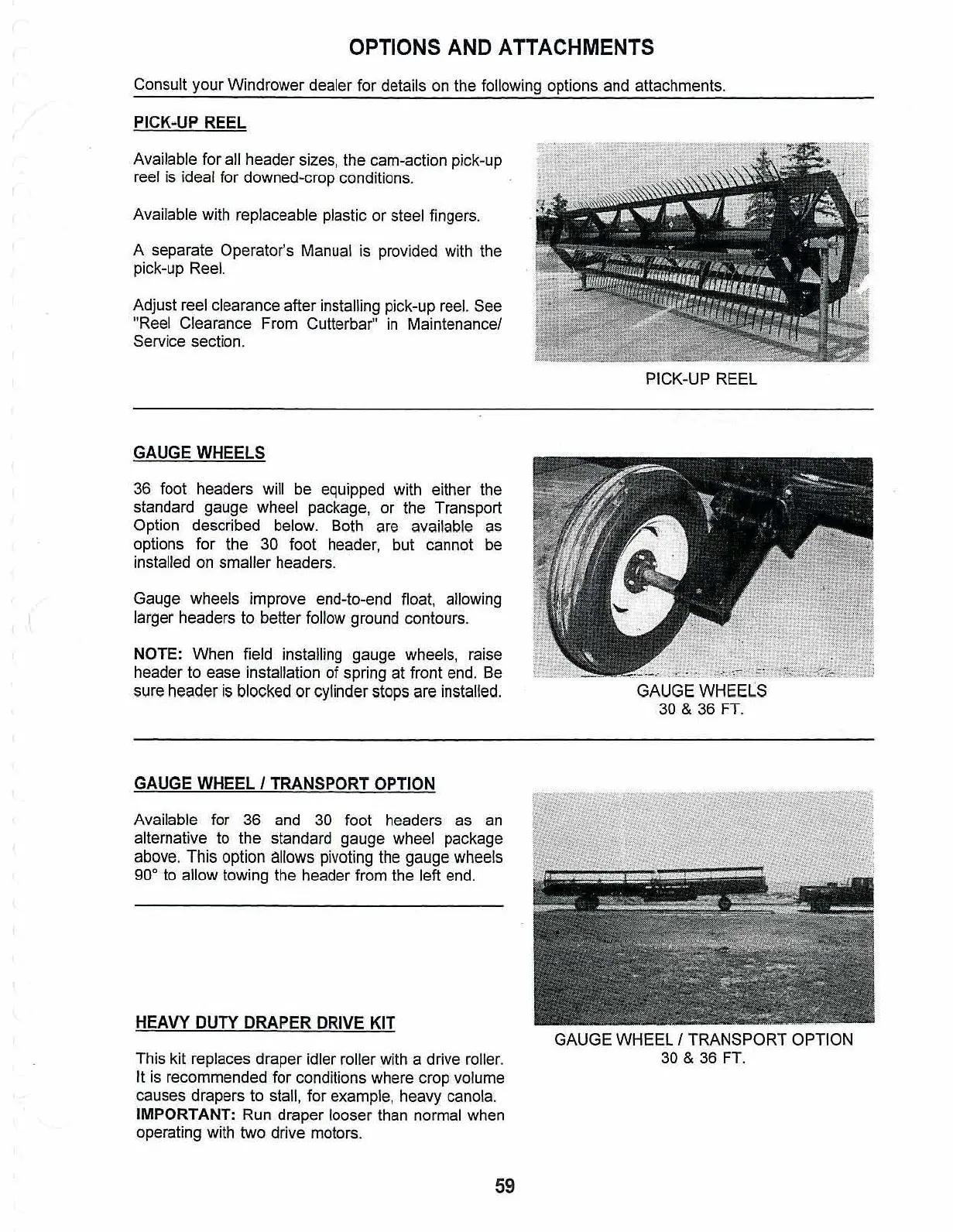

OPTIONS AND ATTACHMENTS
Consult
your
Windrower
dealer for details
on
the following options and attachments.
PICK-UP REEL
Available for all
header
sizes, the cam-action pick-up
reel
is
ideal for downed-crop conditions.
Available with replaceable plastic
or
steel fingers.
A
separate Operator's Manual is provided with the
pick-up Reel.
Adjust reel clearance after installing pick-up reel. See
"Reel Clearance From Cutterbar"
in
Maintenancel
Service section.
PICK-UP REEL
GAUGE WHEELS
36
foot headers
will
be
equipped
with
either
the
standard gauge wheel package, or the Transport
Option described
below.
Both
are
available
as
options for the
30
foot
header,
but
cannot
be
installed on
smaller
headers.
Gauge wheels improve
end~to-end
float.
allowing
larger headers to
better
follow ground contours.
NOTE:
When
field installing gauge wheels, raise
header to
ease
installation of spring
at
front end. Be
sure header is blocked
or
cylinder stops are installed.
GAUGE WHEEL JTRANSPORT OPTION
Available for 36 and
30
foot headers
as
an
alternative
to
the standard gauge wheel package
above.
This
option allows pivoting the gauge wheels
90
0
to allow towing the header from the left end.
HEAVY DUTY DRAPER DRIVE KIT
This kit replaces
draper
idler roller with a drive roller.
It is recommended for conditions where
crop
volume
causes drapers
to
stall, for example, heavy canola.
IMPORTANT:
Run draper
looser
than normal when
operating with
two
drive motors.
59
GAUGE
WHEELs
30 & 36
FT.
GAUGE WHEEL I TRANSPORT OPTION
30 &
36
FT.
