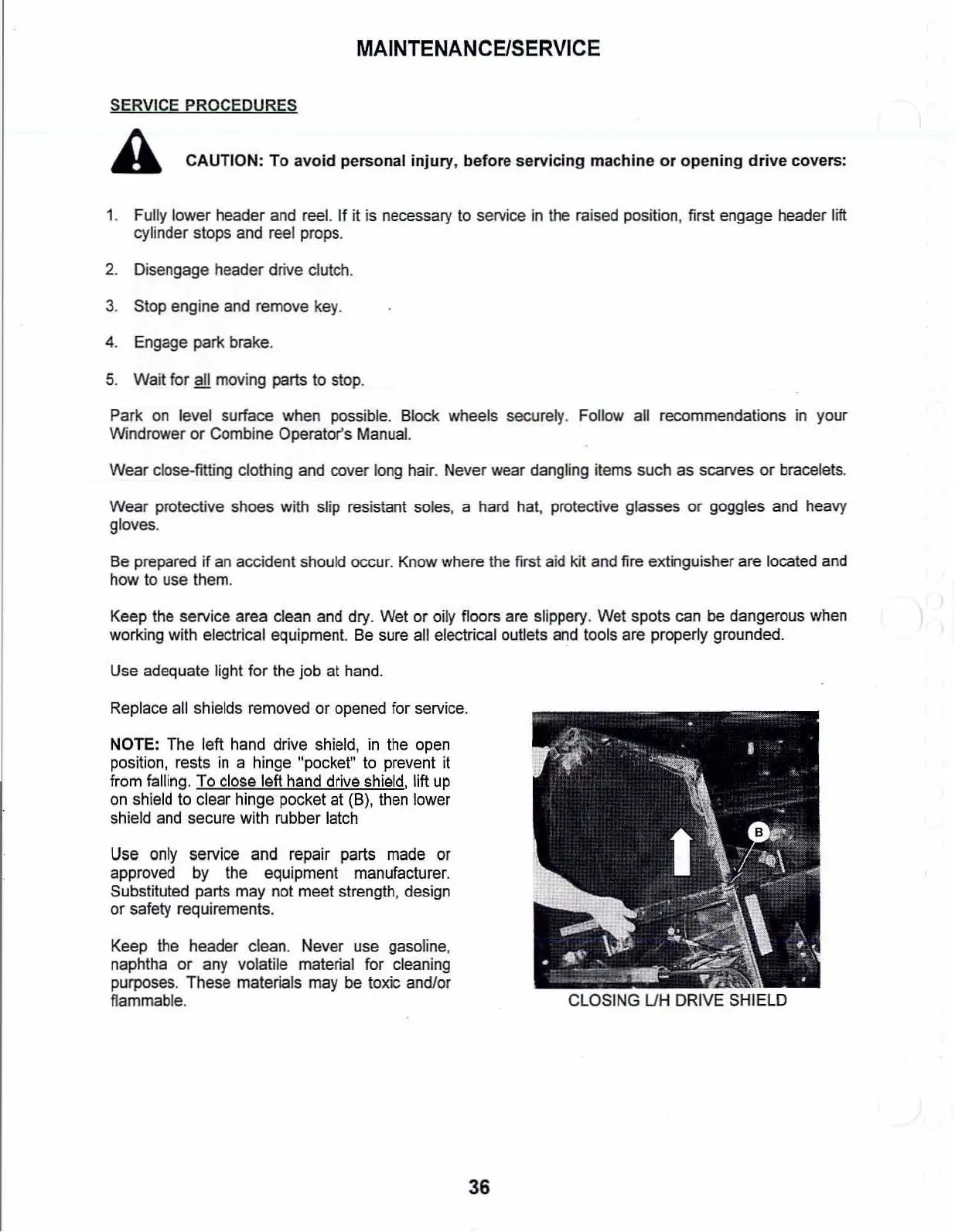

MAINTENANCE/SERVICE
SERVICE PROCEDURES
CAUTION:
To
avoid personal
injury,
before
servicing
machine
or
opening
drive
covers:
1. Fully lower header and reel.
If
it is necessary to service in the raised position, first engage header lift
cylinder stops and reel props.
2.
Disengage header drive clutch.
3.
Stop engine and remove key.
4.
Engage park brake.
5. Wait for all moving parts to stop.
Park
on
level surface
when
possible.
Block
wheels
securely.
Follow
all
recommendations
in
your
Windrower
or
Combine Operator's Manual.
Wear
close-fitting clothing and cover long hair. Never wear dangling items such as scarves
or
bracelets.
Wear
protective shoes
with
slip resistant sales. a hard hat, protective glasses or goggles and heavy
gloves.
Be
prepared
if
an accident should occur. Know where the first aid
kit
and fire extinguisher are located and
how to
use
them.
Keep the service area clean and dry. Wet or oily floors are slippery.
Wet
spots can
be
dangerous when
working with electrical equipment. Be sure all electrical outlets and tools are property grounded.
Use adequate light for the job at hand.
Replace all shields removed
or
opened for service.
NOTE:
The
left hand drive shield,
in
the open
position, rests
in
a hinge "pocket" to prevent it
from falling.
To
close left hand drive shield, lift up
on shield to clear hinge pocket
at
(B), then lower
shield and secure with rubber latch
Use
only service and repair parts made
or
approved by the equipment manufacturer.
Substituted parts may not meet strength, design
or safety requirements.
Keep the header clean. Never use gasoline,
naphtha
or
any volatile material for cleaning
purposes. These materials may
be
toxic and/or
flammable.
