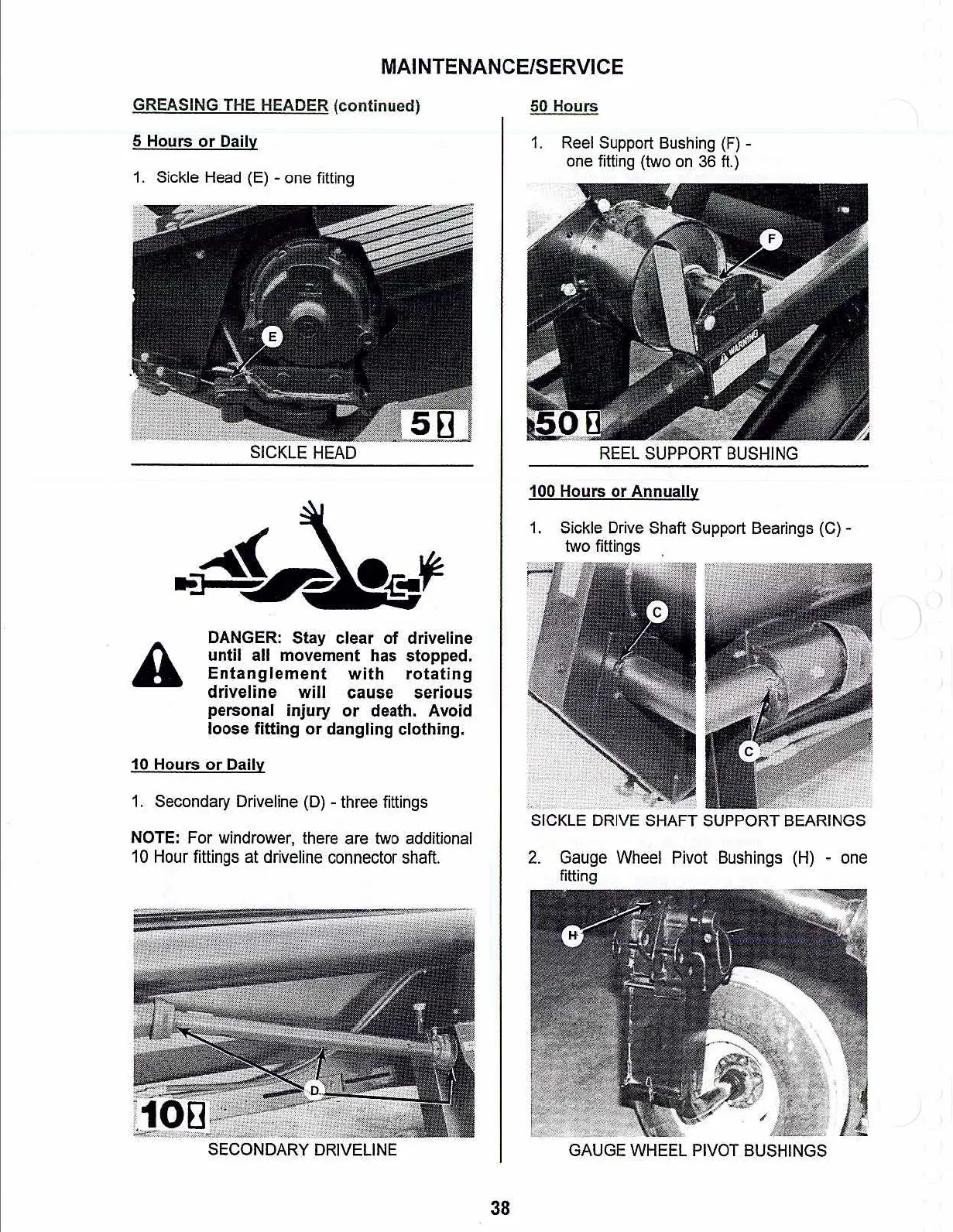

MAINTENANCE/SERVICE
GREASING THE HEADER (continued)
50 Hours
5 Hours or Daily
1. Sickle Head (E) - one fitting
-
SICKLE HEAD
1. Reel Support Bushing (F) -
one fitting (two on 36 ft.)
REEL SUPPORT BUSHING
100 Hours or Annually
A
1. Sickle Drive Shaft Support Bearings IC) •
two fittings
;." ;po.
SICKLE DRIVE SHAFT SUPPORT BEARINGS
2. Gauge Wheel Pivot Bushings (H) • one
fitting
1. Secondary Driveline (0) - three fittings
NOTE: For windrower, there are two additional
10 Hour fittings at driveline connector shaft
DANGER: Stay clear of driveline
until all movement has stopped.
Entanglement with rotating
driveline will cause serious
personal injury or death. Avoid
loose fitting or dangling clothing.
10 Hours or Daily
-
SECONDARY DRIVELINE
V 'A
.~~,
- /~~
GAUGE WHEEL PIVOT BUSHINGS
