HEADER OPERATION
Operating Variables
CUITING HEIGHT (continued)

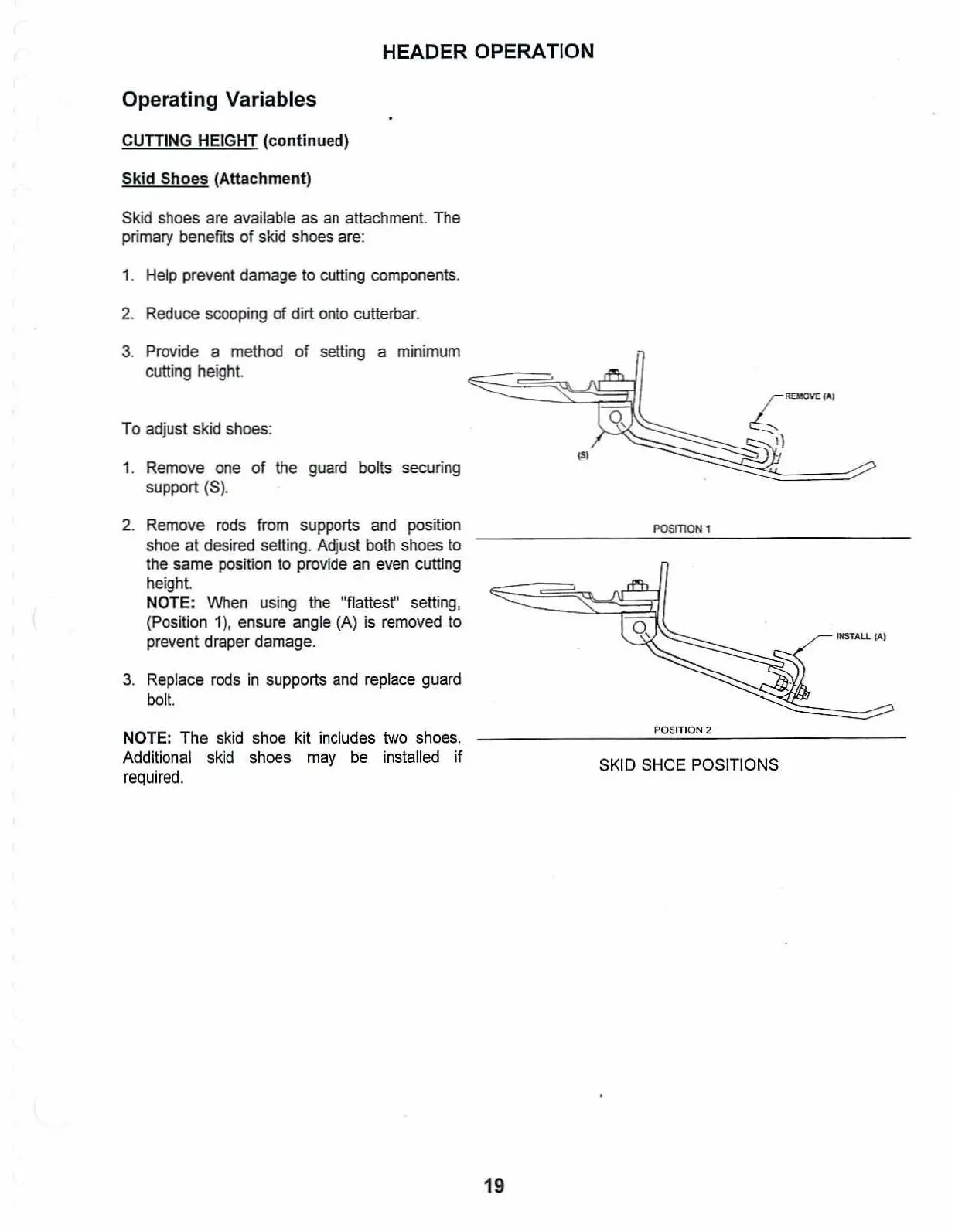

Skid Shoes (Attachment)
Skid shoes are available as an attachment. The
primary benefits of skid shoes are:
1. Help prevent
damage to cutting components.
2. Reduce scooping
of dirt onto cutterbar.
3. Provide a method of setting a minimum
cutting height.
To adjust skid shoes:
1. Remove one of the guard bolts securing
support
(5).
2. Remove rods from supports and position
shoe at desired setting. Adjust both shoes to
the same position to provide an even cutting
height.
NOTE:
When using the "flattesf' setting,
(Position 1), ensure angle (A) is removed to
prevent draper damage.
3. Replace rods in supports and replace guard
bolt.
NOTE: The skid shoe kit includes two shoes.
Additional skid shoes may be installed if
required.
19
POSITION 2
SKID SHOE POSITIONS
