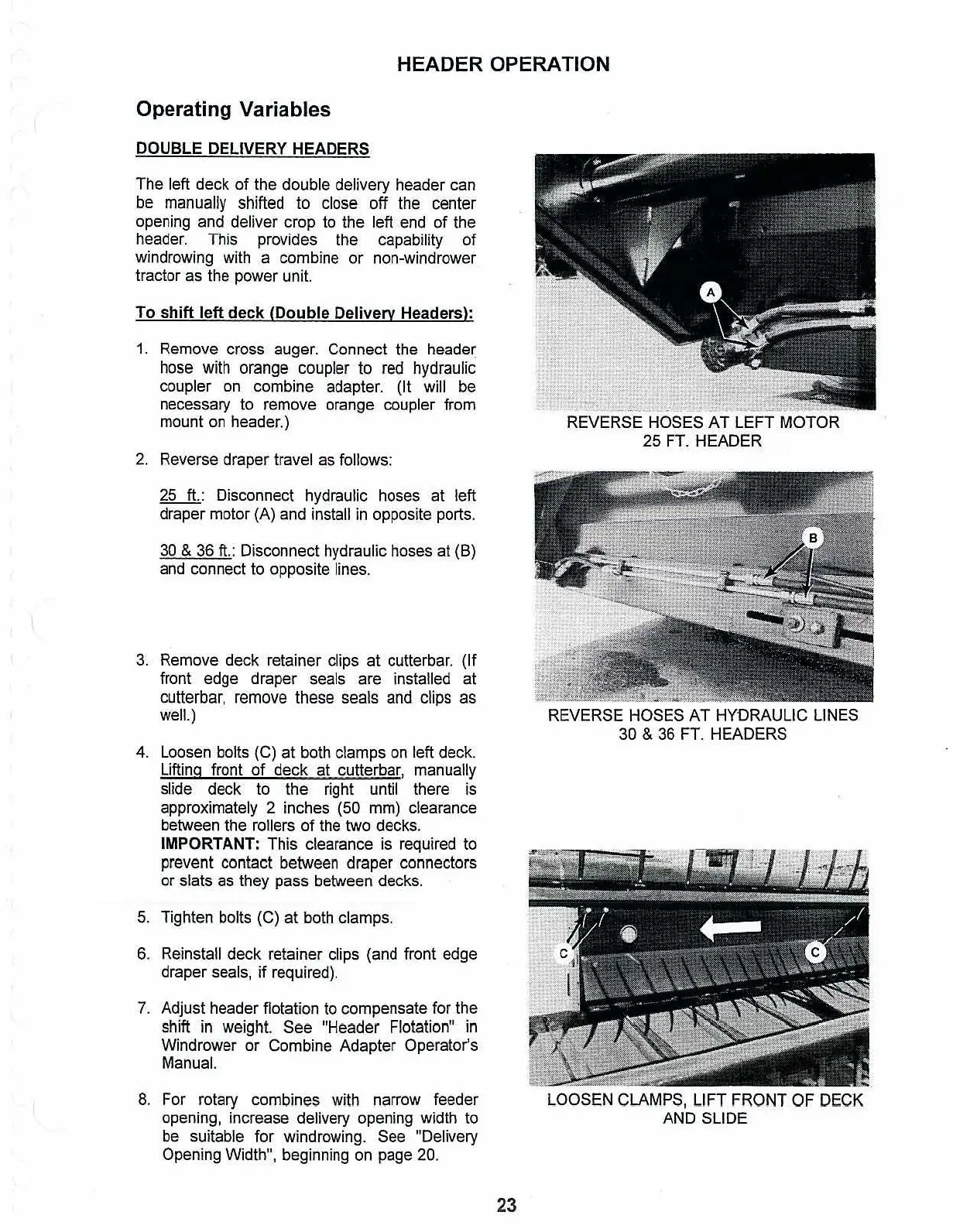

HEADER OPERATION
Operating Variables
DOUBLE
DELIVERY HEADERS
The left deck
of
the double delivery header can
be
manually shifted to
close
off
the
center
opening
and
deliver crop
to
the left
end
of the
header.
This provides the capability of
windrowing with a combine or non-windrower
tractor as the power unit.
To
shift
left deck (Double Delivery Headers):
1.
Remove
cross auger. Connect
the
header
hose
with orange coupler to
red
hydraulic
coupler
on
combine
adapter.
(It
will
be
necessary
to
remove orange coupler from
mount
on
header.)
2.
Reverse draper travel as follows:
25
ft.: Disconnect hydraulic hoses at left
draper motor (A) and install in opposite ports.
30
& 36 ft.: Disconnect hydraulic hoses
at
(B)
and connect to opposite lines.
3.
Remove deck retainer clips
at
cutterbar.
(If
front edge draper seals are installed at
cutterbar, remove these seals and clips as
well.)
4.
Loosen bolts (C)
at
both clamps on left deck.
Lifting front
of
deck
at cutterbar, manually
slide deck to the right until there is
approximately 2 inches (50 mm) clearance
between the rollers
of
the two decks.
IMPORTANT: This clearance is required to
prevent contact between draper connectors
or slats as they pass between decks.
5.
Tighten bolts (C)
at
both clamps.
6.
Reinstall deck retainer clips (and front edge
draper seals,
if
required).
7.
Adjust header flotation to compensate for the
shift in weight. See "Header Flotation" in
Windrower or Combine Adapter Operator's
Manual.
8.
For rotary combines with narrow feeder
opening, increase delivery opening width to
be suitable for windrowing. See "Delivery
Opening Width", beginning on page 20.
23
""w.w
=.T~.
.
~
REVERSE HOSES
AT
LEFT MOTOR
25
FT.
HEADER
REVERSE HOSES AT HYDRAULIC LINES
3D
& 36 FT. HEADERS
LOOSEN CLAMPS, LIFT
FRONT
OF
DECK
AND SLIDE
