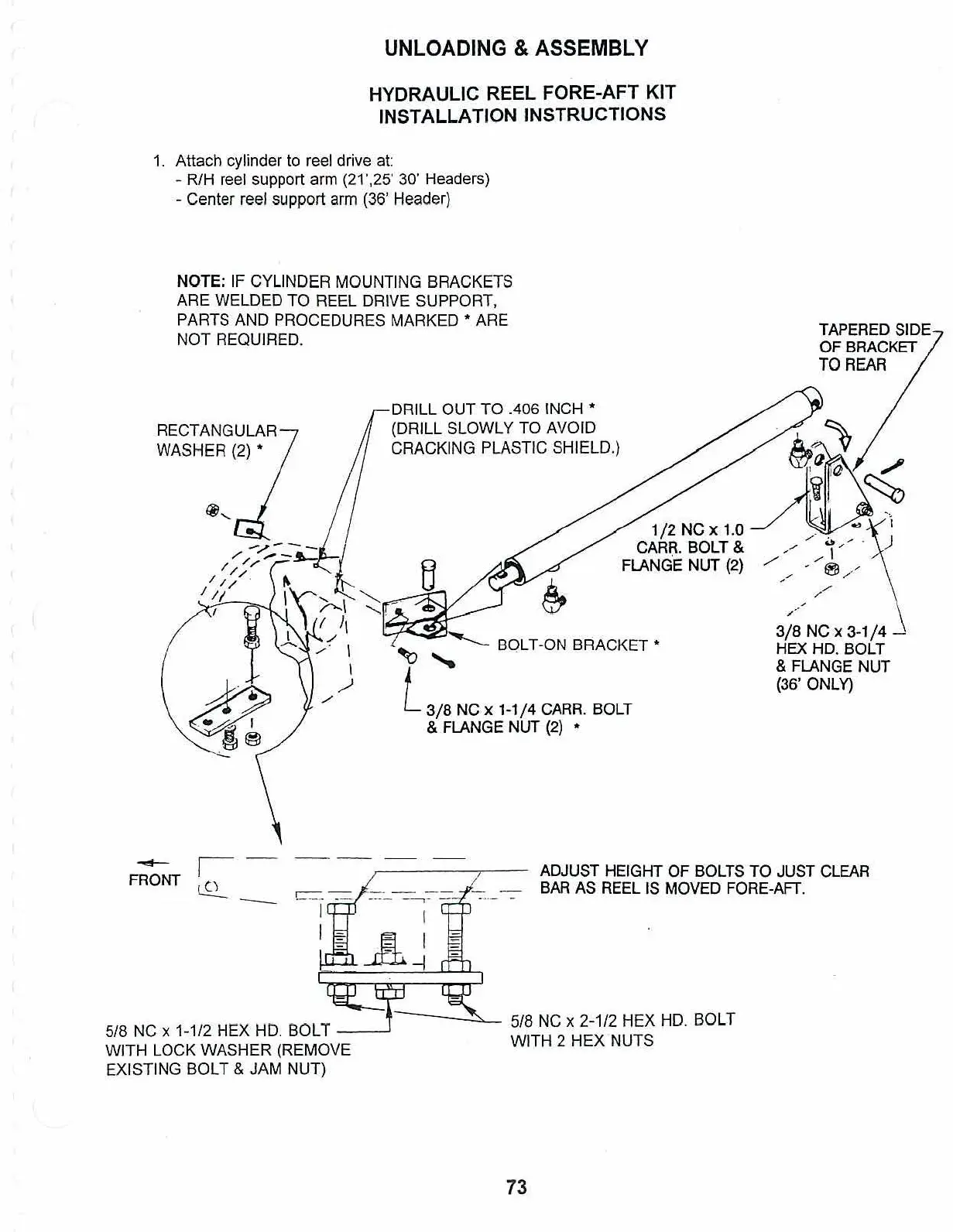

UNLOADING
&
ASSEMBLY
HYDRAULIC REEL FORE-AFT KIT
INSTALLATION INSTRUCTIONS
1.
Attach
cylinder
to
reel
drive
at
-
R/H
reel
support
arm
(21',25'
30'
Headers)
-
Center
reel
support
arm
(36'
Header)
NOTE:
IF
CYLINDER MOUNTING BRACKETS
ARE WELDED TO REEL DRIVE SUPPORT,
PARTS AND PROCEDURES
MARKED'
ARE
NOT REQUIRED.
TAPERED SIDE
OF BRACKET
TO
REAR
DRILL OUT
TO
.406
INCH'
(DRILL SLOWLY TO AVOID
CRACKING PLASTIC SHIELD.)
3/B
NC x
3-1/4-
HEX HD. BOLT
& FLANGE NUT
(36'
ONLY)
1/2
NC
x
1.0
CARR.
BOLT &
FLANGE NUT
(2)
"t>
.....
-----
BOLT·ON
BRACKEr
L
3/B
NC x 1-1/4
CARR.
BOLT
& FLANGE NUT
(2)
•
RECTANGULAR
WASHER (2) •
---
FRONT
1-
Lf-'--
-
I
AJ
ADJUST HEIGHT OF BOLTS TO JUST
CLEAR
BAR
AS
REEL
IS
MOVED FORE-AFT.
5/B
NC
x 1-1/2 HEX HD.
BOLT::=f---":~,--
5/8
NC
x
2-112
HEX HD. BOLT
WITH LOCK WASHER (REMOVE WITH 2 HEX NUTS
EXISTING BOLT
& JAM NUT)
73
