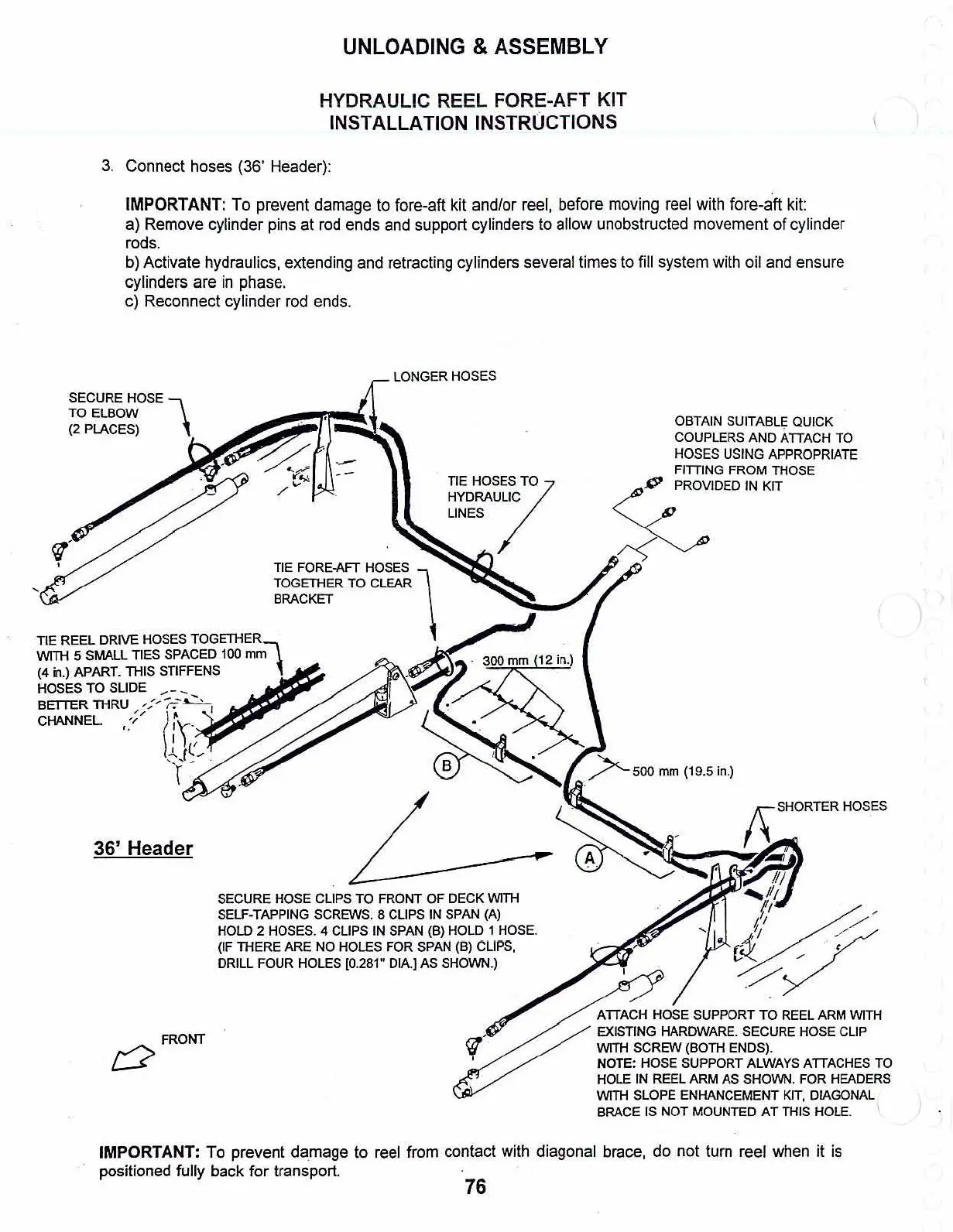

UNLOADING & ASSEMBLY
HYDRAULIC REEL FORE-AFT KIT
INSTALLATION INSTRUCTIONS
3.
Connect hoses {36' Header}:
IMPORTANT:
To prevent damage to fore-aft kit and/or reel, before moving reel with fore-aft kit:
a) Remove cylinder pins at rod ends and support cylinders to allow unobstructed movement
of
cylinder
rods.
b)
Activate hydraulics, extending and retracting cylinders several times to fill system with oil and ensure
cylinders are
in
phase.
c) Reconnect cylinder
rod
ends.
LONGER HOSES
ATTACH
HOSE
SUPPORT
TO
REEL
ARM
WITH
EXISTING HARDWARE. SECURE HOSE
CUP
WITH
SCREW
(BOTH ENDS).
NOTE: HOSE SUPPORT ALWAYS ATTACHES TO
HOLE IN REEL ARM
AS
SHOWN. FOR HEADERS
WITH SLOPE ENHANCEMENT KIT, DIAGONAL
BRACE IS
NOT
MOUNTED
AT
THIS HOLE. I
TIE
HOS/STO
HYDRAULIC
LINES
SECURE HOSE CLIPS
TO
FRONT OF DECK INlTH
SELF·TAPPING SCREWS. 8
CUPS
IN SPAN (A)
HOLD
2 HOSES. 4
CUPS
IN SPAN (B) HOLD 1 HOSE.
(IF
THERE
ARE
NO
HOLES FOR SPAN (B) CLIPS,
DRILL
FOUR
HOLES [0.281-
DIAl
AS SHOWN.)
0'
FRONT
36' Header
SECURE
HOSE"
TO
ELBOW
(2 PLACES)
~.
,
TIE FQRE-AFT HOSES
TOGEll-lER TO CLEAR \
BRACKET
TIE
REEL DRIVE
HOSES
TOGETHER~
VvTTH
5
SMALL
TIES SPACED 100
mm
(4
in.)
APART. THIS STIFFENS
HOSES
TO
SLIDE _
BETTER THRU
",:"'7-:--~1
CHANNEL
.:')
it
l!-}l
....
(
76
IMPORTANT:
To
prevent damage to reel from contact with diagonal brace, do not turn reel when it is
positioned fully back for transport.
