25
5.6 Multiplier Entry (M3)
1) Simultaneously press and hold M/OFF (1), then quickly press and release inch/
mm (2) once to enable the setup mode. (M1 icon appears in the lower left cor-
ner of the LCD) (Figure 3).
2) Continue to press and release M/OFF until the M13 icon is displayed, signifying
the unit is in the selectable resolution mode.
3) Press and hold M/OFF for 2 seconds until the M3 icon appears signifying that
the unit is in the Multiplier Mode. (Figure 10) (Default Value 1.000).

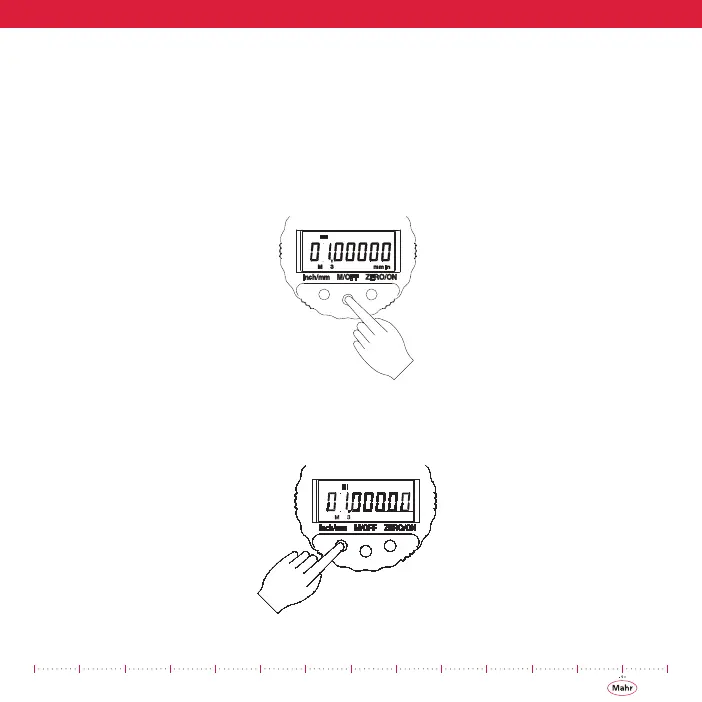

Figure 10 - Multiplier Mode
4) Position the cursor by pressing and releasing inch/mm and moving the cursor
to a position above the character to be changed (Figure 11).
Figure 11 - Position the Cursor
To Next Page
