NOTE: There are two ways to clear the PRESET VALUE to zero. One way is to set each digit
value to zero or, (to simultaneously clear all digits) press and hold the inch/mm and then
press and release ZERO/ON.
6) Press and release M/OFF until it returns to the gaging mode. No “Mx” icon is
displayed. Where “x” could be 1, 2, 3, 12, 23, etc.
5.4 Entering Tolerances (M12, M23) [S]
1) Simultaneously press and hold M/OFF (1), then quickly press and release inch/
mm (2) once to enable the setup mode. (M1 icon appears in the lower left cor-
ner of the LCD) (Figure 3).
2) Press and release M/OFF to display the M2 icon (Figure 5).
3) Press and release M/OFF to display the M12 icon signifying that the unit is in
the limit #1 tolerance entry mode. A cursor appears above the leftmost digital
position (Figure 8).

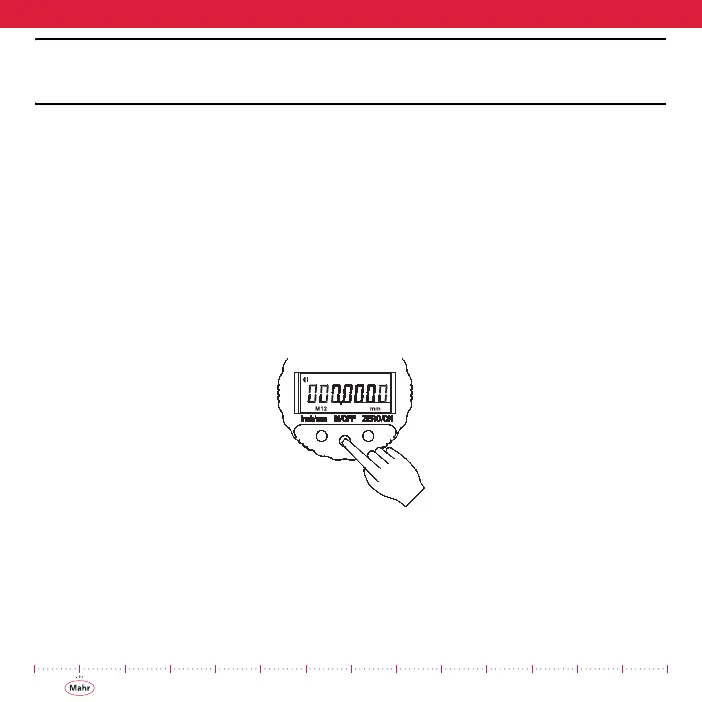

Figure 8 - Entering Tolerances (Limit #1)
