Mahr umaxum II User Manual

20

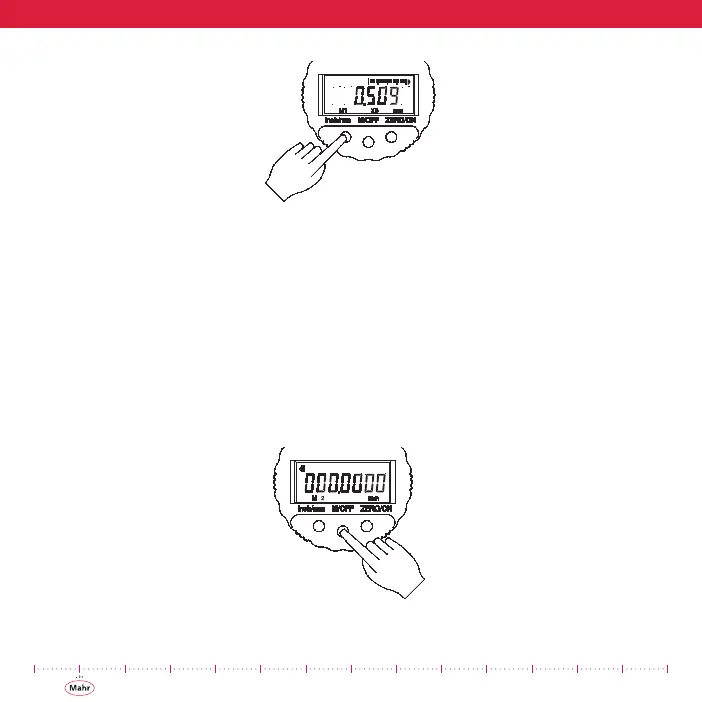

Figure 4 - Changing Analog Magnification
5.3 Entering a Preset (M2) [S]
1) Simultaneously press and hold M/OFF (1), then quickly press and release inch/
mm (2) once to enable the setup mode. (M1 icon appears in the lower left cor-
ner of the LCD) (Figure 3).
2) Press and release M/OFF once to enter the Preset Mode (M2 appears in the
lower left corner of the display) (Figure 5).
3) A cursor appears above the leftmost digital position for the sign. Press and
release ZERO/ON to toggle between “-” and blank “+”.
Figure 5 - Entering the Preset
