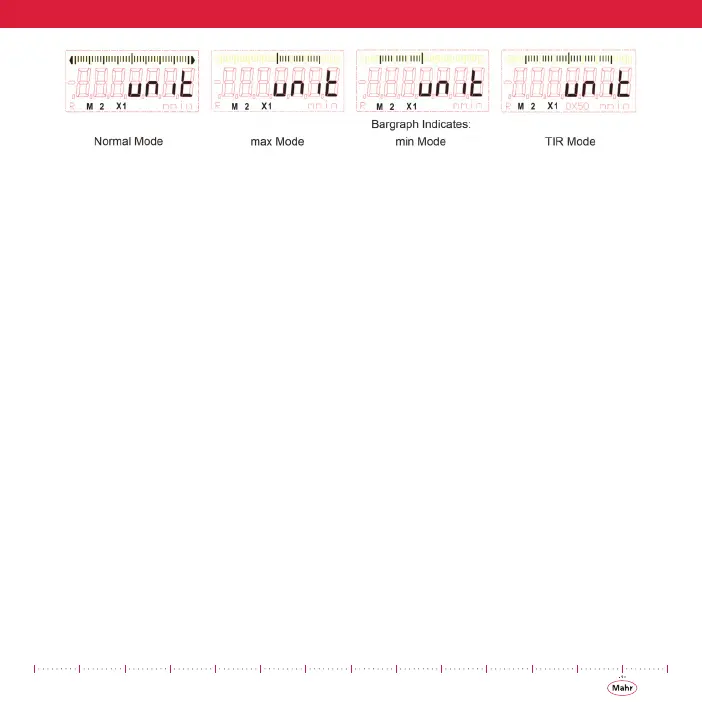

Figure 18 - Max, Min and TIR Modes
• Operating mode set to dynamic maximum reading. This is indicated by the
partial bargraph segments from the center to the right.
• Operating mode set to dynamic minimum reading. This is indicated by the
partial bargraph segments from the center to the left.
• Operating mode set to dynamic TIR reading. This is indicated by the partial
bargraph segments from the center to the left and right.
6) Once selected, press and release the M/OFF button to advance to the next
menu option. To exit the Setup mode press and release the
M/OFF button until it returns back to the gaging mode (no M icon is displayed -
the M icon is displayed in Gaging Mode if a multiplier is set).
5.9 Changing Dynamic Hold Operation (M2 X1)
1) Simultaneously press and hold M/OFF (1), then quickly press and release inch/
mm (2) once to enable the setup mode. (M1 icon appears in the lower left cor-
ner of the LCD) (Figure 3).
2) Continue to press and release M/OFF until the M13 icon is displayed, signifying
the unit is in the selectable resolution mode.
3) Press and hold M/OFF for 2 seconds until the M3 icon appears signifying that
the unit is in the Multiplier Mode (Default Value 1.000).
4) Press and release the M/OFF button until the display shows the M2 X1 icon.
The display shows the current setting.
