6.7.1 Dynamic Max, Min, TIR
The µMaxµm II Series advanced indicator has the ability to display dynamic measure-
ments. The dynamic modes are max, min, and TIR (total indicated reading or max-min).
• Dynamic max displays the most positive (maximum) reading relative to its
reset/starting location.
• Dynamic min displays the most negative (minimum) reading relative to its
reset/starting location.
• Dynamic TIR displays the difference between the maximum reading and the
minimum reading relative to its reset/starting location. The TIR reading will
always be an absolute or positive reading (max is always greater than min).
In the gaging mode each dynamic feature is identified by the analog bargraph as shown
here:
Figure 34 - Dynamic Feature Displays
NOTE: The dynamic settings appear similar to the tolerance indication used in the indica-
tors static mode. In the dynamic mode the line segment next to the arrow is also displayed
and both segments are solid (not flashing). The analog bargraph holds the dynamic position
and a reverse blinking segment is the actual position of the indicator.
The left and right arrow segment will blink when the reading is out of tolerance and the line
segment next to it remains solid. This only occurs if the tolerance feature is enabled.

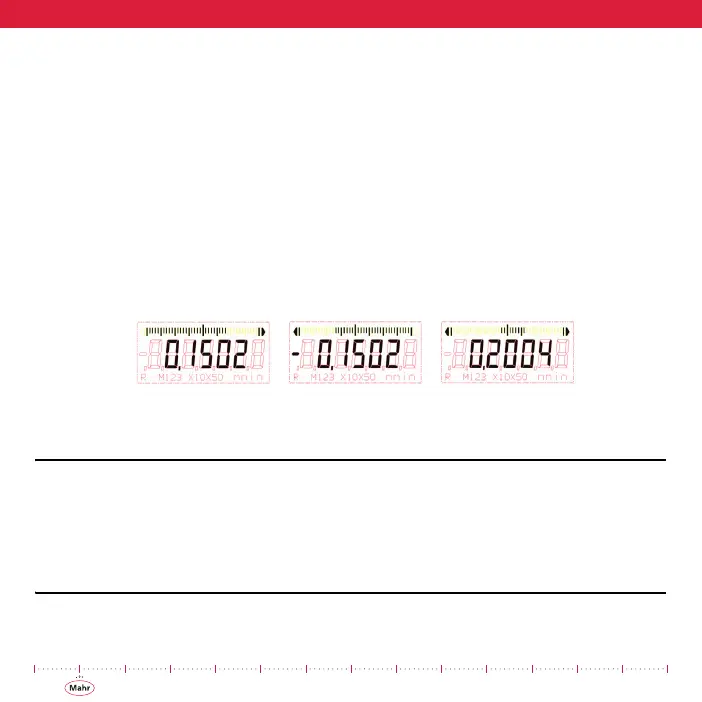

Max Mode Min Mode TIR Mode
