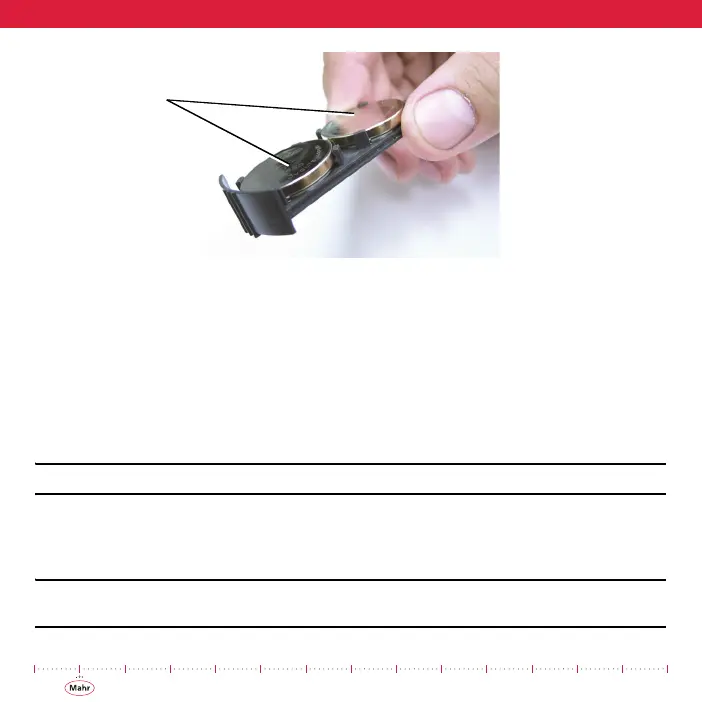

Figure 38 - Changing the Battery
4) With the Indicator display facing up, orient the Battery Tray with the batteries
facing away from display. Firmly slide the tray in until it locks into position (Refer
to Figure 37). An initialization routine should be observed on the LCD display.
7.3 Data Output
The µMaxµm II Series indicator has available three standard output formats based on the
cable connected to it.
NOTE: Disconnect cable when not in use. Leaving it connected may reduce battery life.
• USB (Universal Serial Bus)
• Opto RS232C (simplex and duplex)
• Digimatic (Binary Coded Data)
IMPORTANT: Anytime a cable is connected to the data output port the indicator should be
turned off, otherwise the cable may not be recognized and will not output correctly.
