39
When in GO/NOGO selection the indicator replaces the numeric reading with a symbol.
This is useful for visual sorting of parts by size or class. Up to three classes are available
as shown here. The GO/NOGO symbols are represented in the figures below:

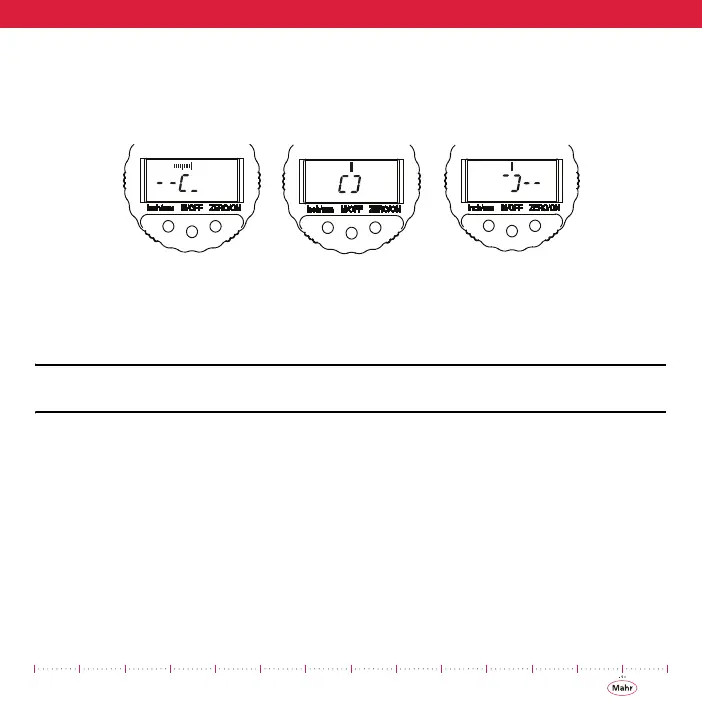

Figure 31 - Go/NOGO Displays
NOTE: The reading may still be output through the data port even when viewing the GO/
NOGO symbols.
6.5 Resolution [S]
The µMaxµm II Series indicator has a broad range of digital resolution choices. The last
digit may end in a 0, 1, 2, or 5 depending on setting in the setup mode.
6.6 Multiplier
The µMaxµm II Series indicator has the ability to enter a multiplier typically used in appli-
cations where a ratio occurs. A ratio can be created by chordal or lever type measure-
ments. When the multiplier value in the setup mode is set to a value other than exactly
1.000 an M icon will be displayed on the indicator.
X1
mm
X1
mm
X1
mm
NOGO
Under Lower
Tolerance Limit
GO NOGO
Over Upper
Tolerance Limit
